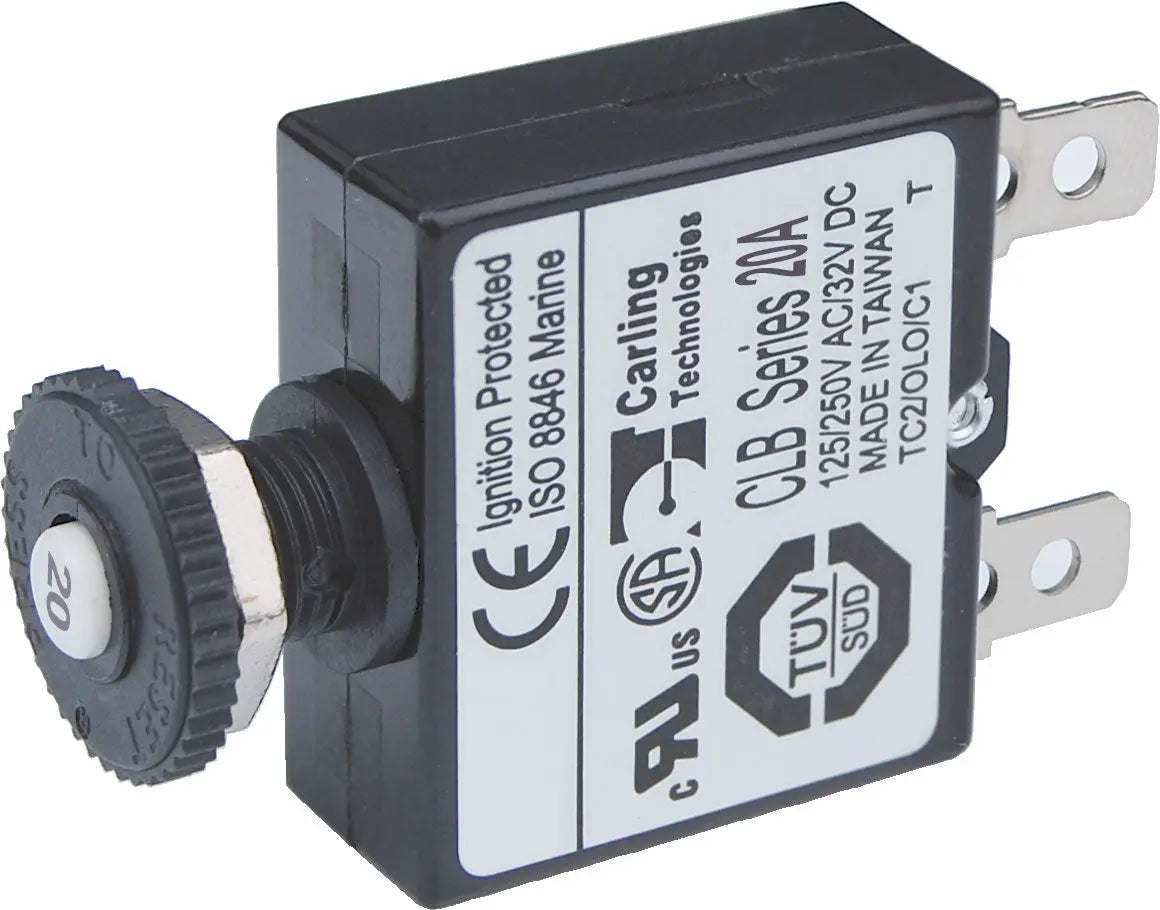

Blue Sea Systems 7057-BSS 20A Push Button Quick Connect Circuit Breaker

Blue Sea 20A Push Button Quick Connect Circuit Breaker

The Blue Sea Systems 7057-BSS is a reliable 20-amp push button reset circuit breaker designed for marine and industrial applications. Featuring a thermal trip mechanism, this breaker offers manual reset via a convenient push button, ensuring quick recovery from faults. Its compact design allows high-density circuit protection configurations, making it ideal for boat panel installations, battery banks, and distribution panels. The quick connect terminal style simplifies wiring and installation, reducing setup time and ensuring secure connections. This circuit breaker is ignition protected, making it safe for installation aboard gasoline-powered vessels, and supports continuous operation for 24-hour circuit protection. An optional waterproof boot further enhances durability in wet environments by protecting the breaker from moisture, discoloration, and cracking, and replaces traditional dress nut mounting for added convenience and reliability.

Features:

• Amperage: 20A for reliable circuit protection

• Maximum Voltage: 32V DC suitable for marine and industrial use

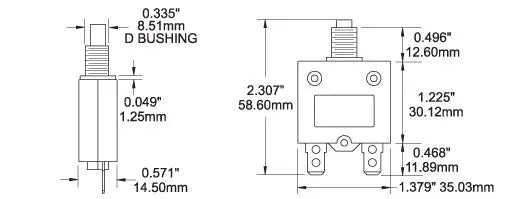

• Mounting: Panel mount with 3/8-27 UNS thread for secure installation

• Circuit Breaker Type: Thermal trip with manual push-button reset for safety and ease of use

• Terminal Type: 1/4-inch male quick connect for straightforward wiring

• Interrupt Capacity: 3000A at 14.7V and 2500A at 28V ensuring high fault current handling

• Operating Temperature Range: -10°C to 60°C for versatile installation environments

• Ignition Protected: Safe for installation aboard gasoline-powered boats

• Waterproof Boot: Optional protective cover to resist moisture and environmental wear
