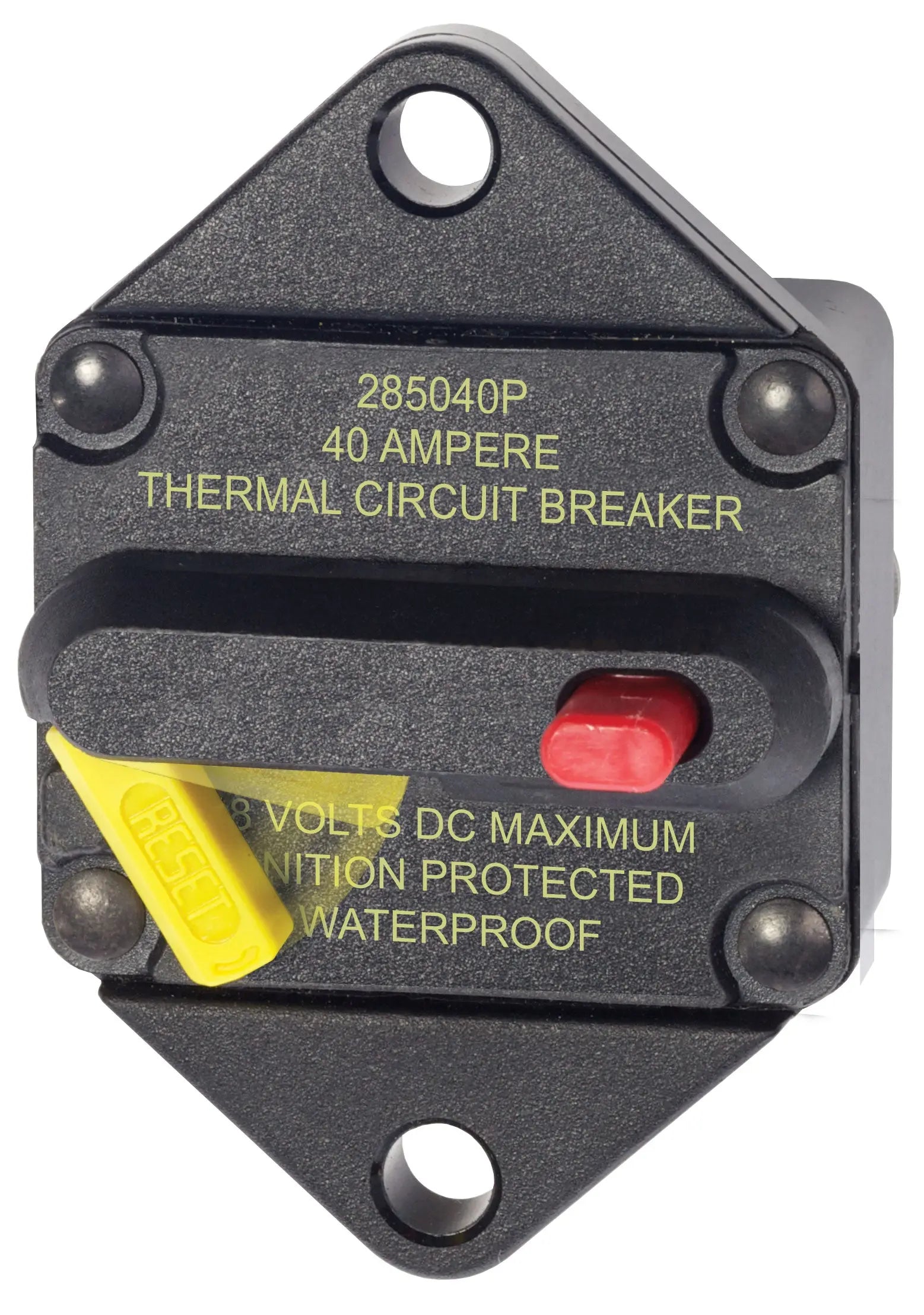

Blue Sea Systems 7082-BSS 285-Series 40 Amp Panel Mount Circuit Breaker

Blue Sea 285-Series 40 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 7082-BSS 285-Series Circuit Breaker is a reliable and essential component for marine electrical systems. Designed as a panel mount device, this 40A circuit breaker offers a seamless replacement for the earlier 185-Series models, ensuring compatibility and ease of upgrade. Its thermally responsive bi-metal blade provides consistent protection against electrical faults, while the weather-resistant construction makes it suitable for marine environments where exposure to moisture and harsh conditions is common. The visible reset lever allows operators to quickly identify open circuits, enhancing safety and maintenance efficiency. This breaker also features a trip-free design, preventing the device from being held closed after tripping, which ensures it automatically disconnects in fault conditions for added safety.

Features:

• Drop-in replacement for 185-Series Circuit Breakers

• Visible reset lever indicates open condition

• Ignition protected and meets SAE J1171 external ignition protection standards

• Weather resistant construction suitable for marine environments

• Combines switching and circuit breaker functions into one unit

• Trip-free design prevents manual override after trip

• Surface mount installation for easy setup

• Thermally responsive bi-metal blade ensures reliable operation

• Maximum voltage of 48V DC for safe operation in marine applications

• Accepts M6 terminal studs with 1/4 inch ring terminals

• Interrupt capacity of 3000A at 48V DC ensures high fault current handling

• Operational temperature range from -40°C to 85°C for versatile use
