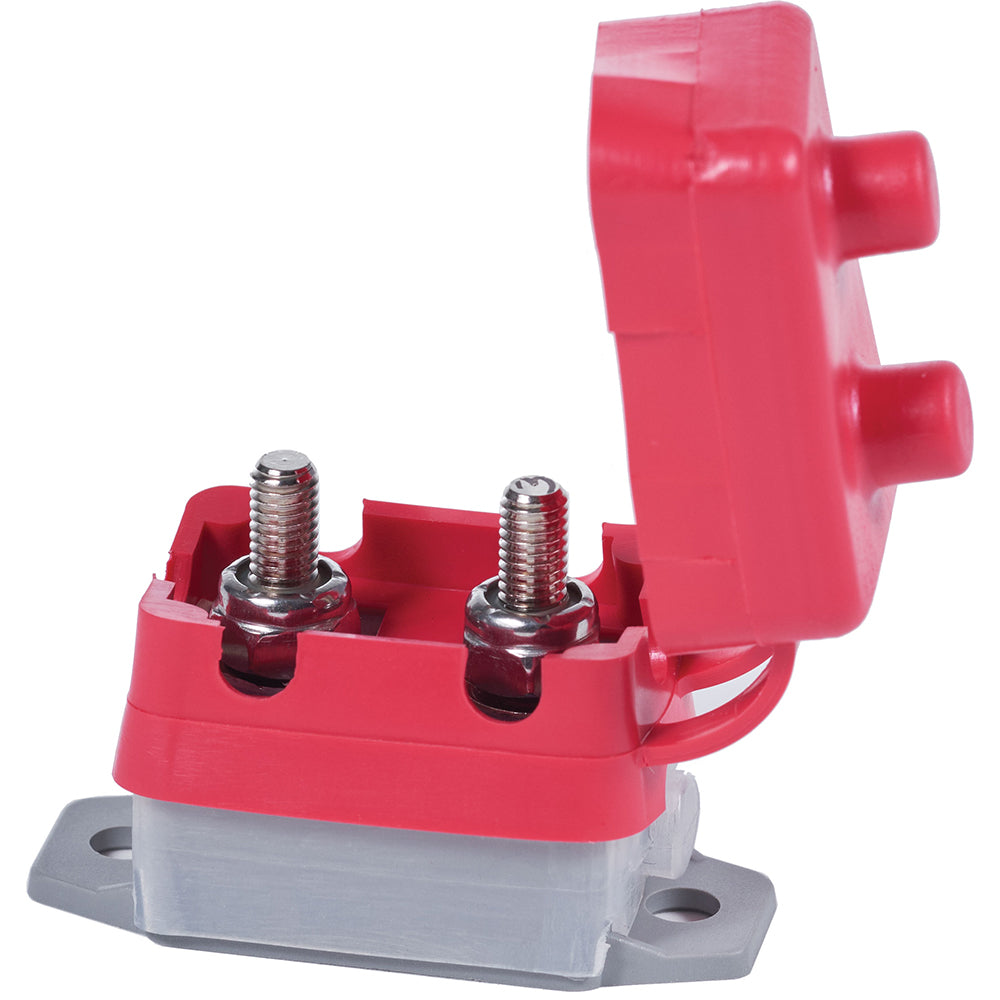

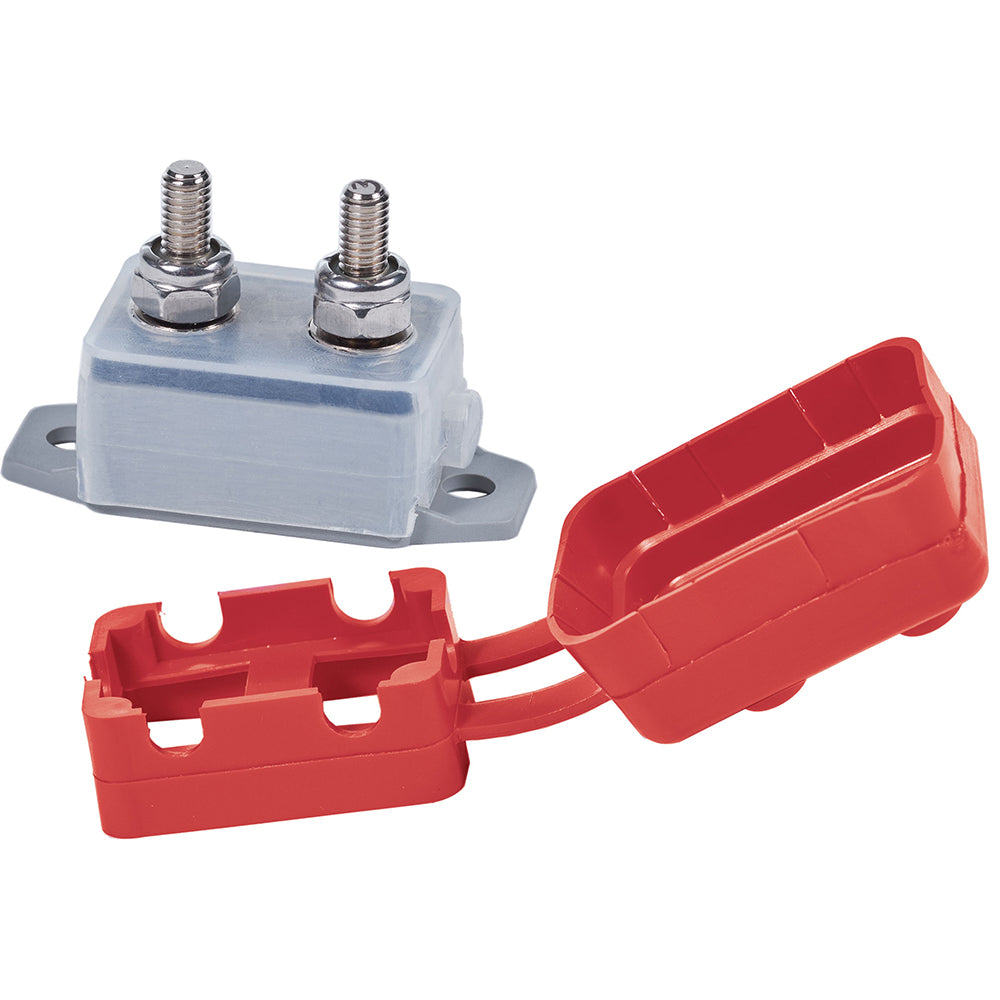

Blue Sea Systems 7152 Short Stop Circuit Breaker - 15A DC with Water-Resistant Boot

7152 Short Stop Circuit Breaker - 15A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 15A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 60 C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7152 Short Stop Circuit Breaker is designed for reliable protection in DC electrical systems, rated at 15 amps with a maximum voltage of 28 volts. Its corrosion-resistant construction ensures durability in harsh environments, making it suitable for marine, RV, and other mobile applications. The breaker features a push-to-reset mechanism, providing quick and easy reset after tripping, and includes a red water-resistant boot for enhanced protection against moisture and dust ingress. Its interrupt capacity of 2,500 amps at 28V DC ensures it can handle high-current faults safely. This circuit breaker is designed with a #10-32" terminal stud and a recommended screw terminal torque of 24 in-lb, ensuring secure connections. The IP64 water resistance rating makes it suitable for outdoor and damp conditions, and the compact design allows for easy installation in tight spaces. The device operates effectively within a temperature range from -10°C to 60°C, ensuring reliable performance across various climates. The breaker’s corrosion-resistant materials and water-resistant boot make it an ideal choice for marine, RV, and other demanding applications where reliable circuit protection is critical. The package includes the water-resistant boot for added environmental protection, ensuring long-term durability and safety in challenging conditions. Proper installation and maintenance will ensure optimal performance and safety of your electrical system, providing peace of mind during operation. Please note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are regulated by California Proposition 65, and users should review safety information accordingly.

Features:

• Corrosion-resistant material for durability in harsh environments

• IP64 water-resistant boot for moisture and dust protection

• Push-to-reset operation for convenient reset after tripping

• High interrupt capacity of 2,500A @ 28VDC for fault safety

• Compact design with #10-32" terminal stud for secure connections

• Operational temperature range from -10°C to 60°C for versatile use

• Includes red water-resistant boot for environmental protection
