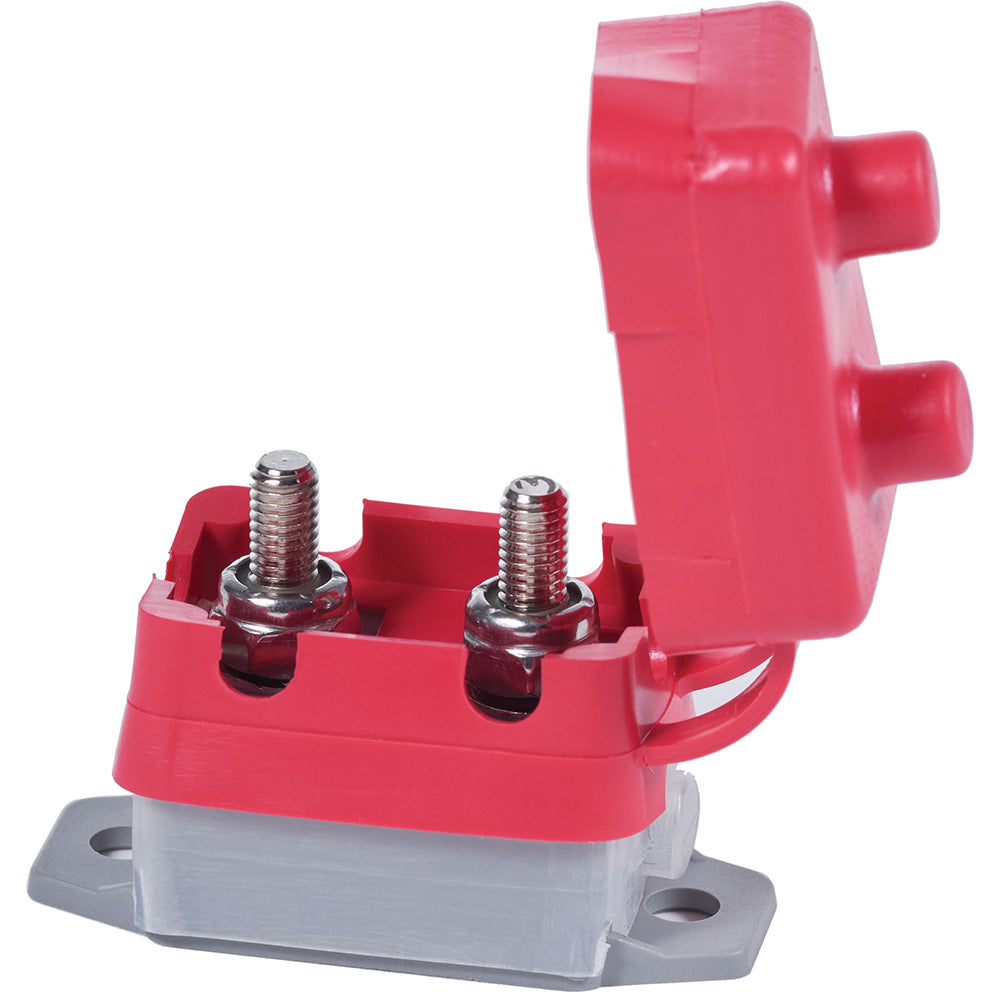

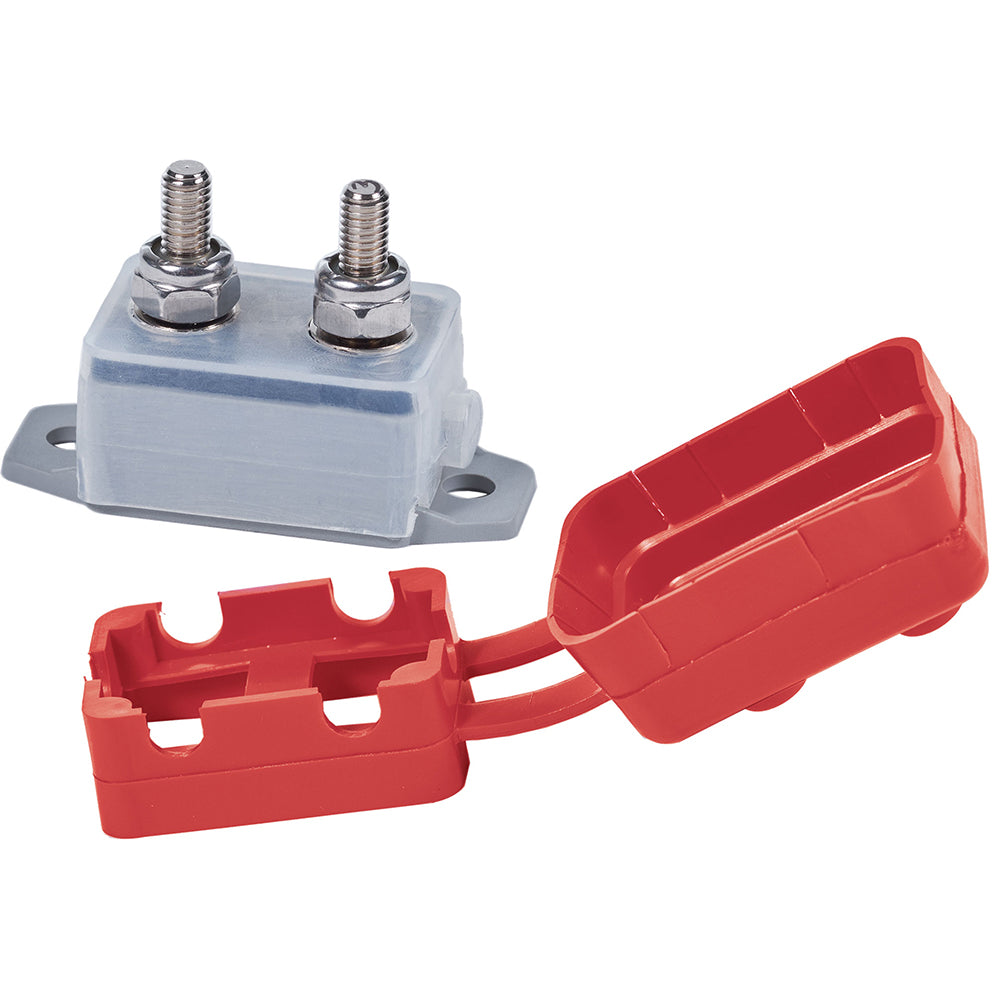

Blue Sea Systems 7154 Short Stop Circuit Breaker - 25 Amp, Water-Resistant Push-to-Reset Design

7154 Short Stop Circuit Breaker - 25A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 25A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 60 C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7154 Short Stop Circuit Breaker is a reliable safety device designed for marine and automotive applications where dependable circuit protection is essential. Featuring a corrosion-resistant construction, this 25A DC circuit breaker is built to withstand harsh environments and provide long-lasting performance. Its IP 64 water-resistant boot ensures protection against water ingress, making it suitable for outdoor and wet conditions. The push-to-reset mechanism simplifies operation, allowing for quick and easy reset after tripping, which minimizes downtime and enhances safety. The breaker’s high interrupt capacity of 2,500A at 28VDC ensures it can handle short circuits and overloads effectively, protecting sensitive electrical systems from damage. The included red insulating boot adds an extra layer of safety and visibility, and the device is designed to operate reliably within a temperature range from -10°C to 60°C. Terminal connections are secured with a #10-32 threaded stud, with recommended torque of 24 in-lb, ensuring solid electrical contact and durability during operation.

Features:

• Corrosion-resistant material for long-lasting durability

• IP 64 water-resistant boot for protection against water ingress

• Push-to-reset operation for quick and easy resetting after trips

• High interrupt capacity of 2,500A at 28VDC for reliable circuit protection

• Red insulating boot included for safety and visibility

• Designed for DC applications with a maximum voltage of 28V

• Operates reliably within a temperature range from -10°C to 60°C

• Secure connection with #10-32 terminal stud and recommended torque
