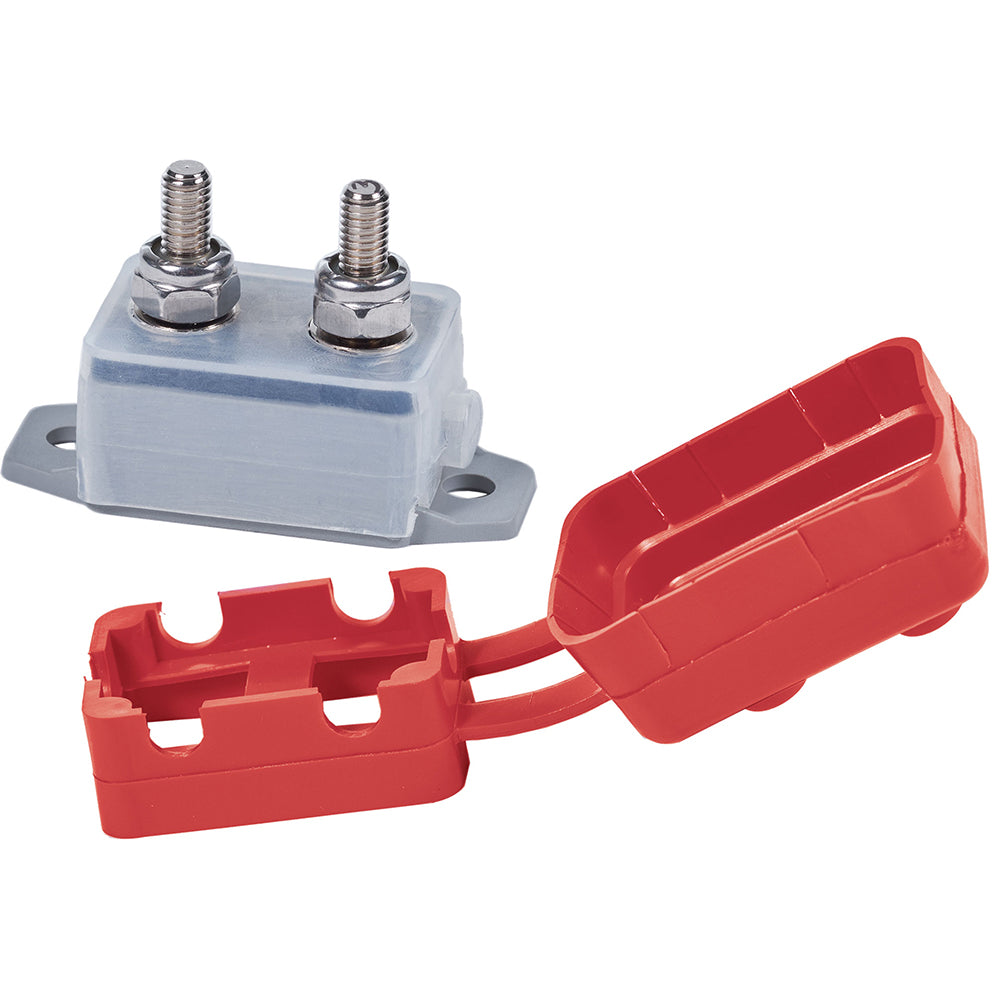

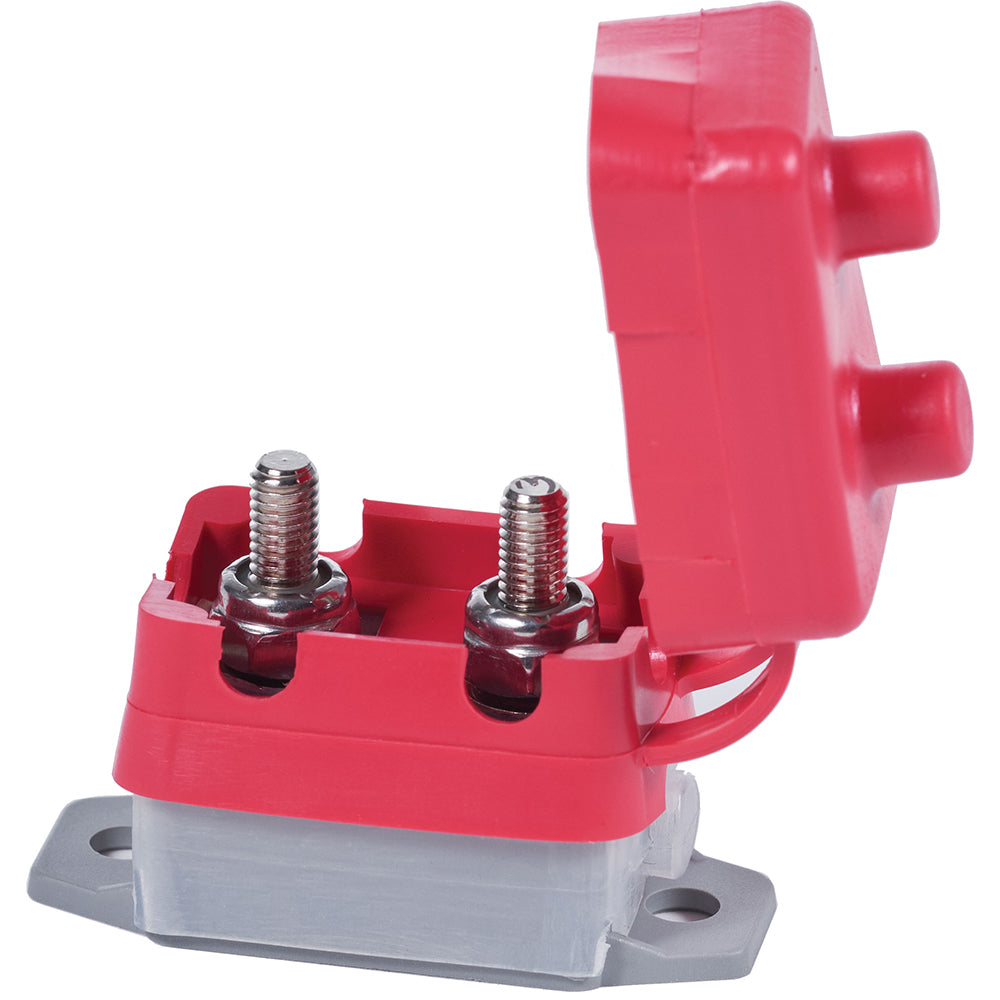

Blue Sea Systems 7155 Short Stop Circuit Breaker - 30A, Water-Resistant and Corrosion Resistant

7155 Short Stop Circuit Breaker - 30A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 30A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 60 C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7155 Short Stop Circuit Breaker is designed for reliable overcurrent protection in DC electrical systems, supporting up to 30 amps at a maximum voltage of 28V DC. Its corrosion-resistant construction ensures durability in harsh environments, making it suitable for marine, RV, and vehicle applications. The breaker features a push-to-reset mechanism, providing easy and safe operation without the need for tools. An IP 64 water-resistant boot included in the retail package offers additional protection against water ingress, ensuring consistent performance even in wet conditions. This circuit breaker offers a high interrupt capacity of 2,500 amps at 28V DC, providing robust protection for your electrical system against short circuits and overloads. The screw terminal connections are designed for secure attachment, with a torque rating of 24 in-lb, compatible with #10-32 threaded studs. Operating within a temperature range from -10°C to 60°C, the breaker maintains reliable operation across varying environmental conditions. The included red insulating boot enhances visibility and safety, making installation and maintenance straightforward. Designed by Blue Sea Systems, the 7155 Short Stop Circuit Breaker is an essential component for ensuring electrical safety and system reliability in demanding applications.

Features:

• Corrosion resistant material for durability in harsh environments

• IP 64 water-resistant boot included for protection against water ingress

• Push to reset mechanism for safe and easy operation

• Interrupt capacity of 2,500 amps at 28V DC for high fault current handling

• Secure screw terminal connections with specified torque rating

• Supports up to 30A DC with a maximum voltage of 28V DC

• Operates reliably in temperatures ranging from -10°C to 60°C
