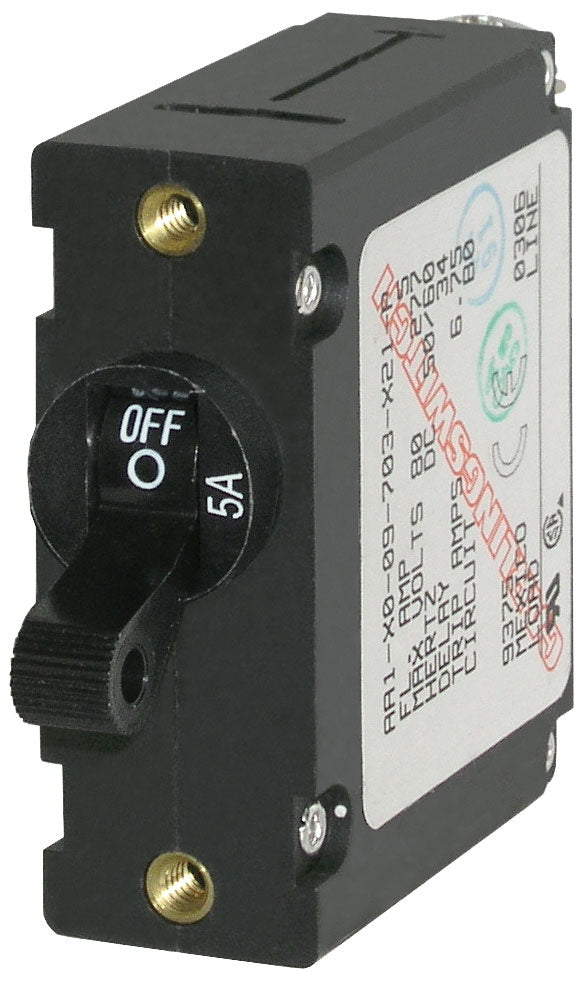

Blue Sea Systems 7200-BSS A-Series Single-Pole 5A Black Toggle Circuit Breaker

Blue Sea 7200 Circuit Breaker AA1Toggle 5A with Black Toggle

Blue Sea Systems 7200-BSS A-Series Black Toggle Circuit Breaker provides dependable circuit protection and manual switching for marine electrical systems. This single-pole breaker is rated for 5 amps on both AC and DC circuits, making it well suited for use in Blue Sea Systems electrical panels and other compatible applications. Its black toggle actuator offers clear, convenient control in a compact panel-mounted design.

The magnetic-hydraulic, trip-free design combines switching and overcurrent protection in one device. The breaker cannot be held in the ON position during a fault-current condition, helping support safer operation and reliable circuit interruption. It meets American Boat and Yacht Council (ABYC) standards and delivers interrupt capacities up to 3,000 amps at 120V AC, 3,000 amps at 240V AC under UL 1077, and 7,500 amps at 65V DC.

Built for demanding marine environments, the Blue Sea Systems 7200-BSS supports systems up to 240V AC or 32V DC and operates across a broad temperature range from -40°F to 185°F. Stainless steel mounting and terminal screws provide corrosion resistance and secure installation. The breaker is rated for up to 10,000 switching cycles, offering durable performance for boat electrical panels, accessory circuits, and other equipment requiring dependable protection.

Specifications
Amperage: 5A AC and 5A DC
Color: Black
Actuator Style: Toggle
Poles: Single pole
Maximum Voltage: 240V AC and 32V DC
Circuit Breaker Type: Magnetic hydraulic, trip free
Mounting Hardware: Stainless steel screws

Features:

• 5A AC and 5A DC circuit protection
• Single-pole configuration with black toggle actuator
• Combines switching and circuit protection in one device
• Trip-free design prevents the breaker from being held ON during a fault condition
• Meets American Boat and Yacht Council (ABYC) standards
• Designed for Blue Sea Systems electrical panels
• Supports up to 240V AC or 32V DC
• Magnetic-hydraulic circuit breaker technology
• Up to 10,000 switching cycles
• Stainless steel mounting and terminal screws
