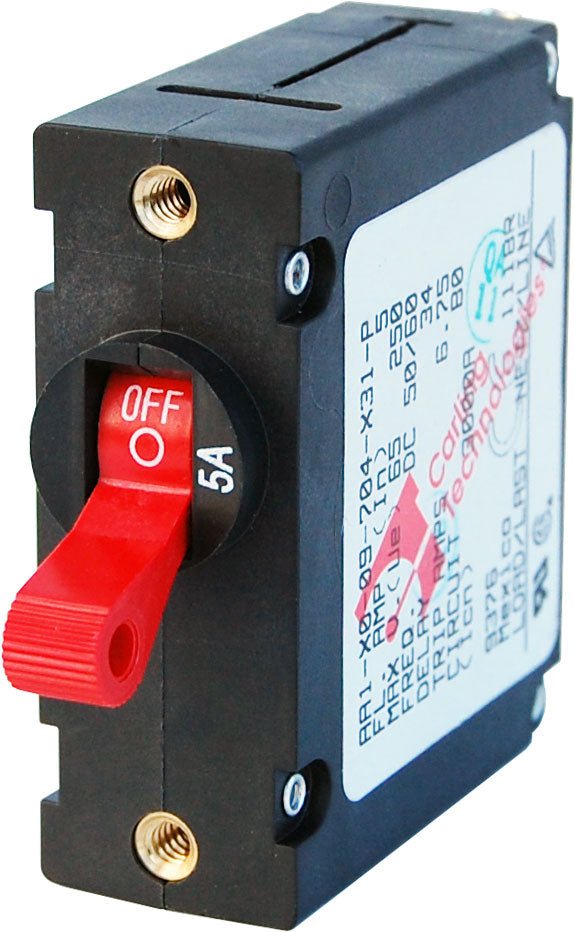

Blue Sea Systems 7201-BSS A-Series Red Toggle Circuit Breaker, Single Pole 5A

Blue Sea Circuit Breaker AA1Toggle 5A with Red Toggle

Blue Sea Systems 7201-BSS A-Series Red Toggle Circuit Breaker provides dependable circuit protection and manual switching for marine electrical systems. This single-pole, 5-amp breaker is designed for use with Blue Sea Systems electrical panels and meets American Boat and Yacht Council (ABYC) standards. Its red toggle actuator offers clear visual identification and convenient control in a compact panel-mounted format.

Combining switching and overcurrent protection in one device, the 7201-BSS helps simplify marine wiring installations while protecting connected equipment from excessive current. The magnetic-hydraulic circuit breaker uses a trip-free design, preventing the actuator from being held in the ON position during a fault-current condition. It is rated for 5 amps at both AC and DC operation, with maximum ratings of 240 volts AC and 32 volts DC.

Built for demanding electrical environments, this Blue Sea Systems circuit breaker offers high interrupt capacity and supports up to 10,000 switching cycles. Stainless steel mounting and terminal screws provide reliable installation and corrosion resistance for marine applications. The breaker operates in temperatures from -40°F to 185°F, making it suitable for a wide range of onboard conditions. Use the 7201-BSS for replacement or new installations requiring reliable single-pole circuit protection with a red toggle control.

Specifications
Brand: Blue Sea Systems
Part Number: 7201-BSS
Amperage: 5A AC, 5A DC
Color: Red
Actuator Style: Toggle
Poles: 1
Maximum Voltage: 240V AC, 32V DC
Circuit Breaker Type: Magnetic hydraulic, trip-free
Mounting Screw: #6-32 stainless steel
Terminal Screws: #10-32 stainless steel
Mounting Screw Torque: 6 in-lb
Terminal Screw Torque: 14 in-lb
Switching Cycles: 10,000

Prop 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features:

• ABYC compliant design for marine electrical installations
• Single-pole 5-amp circuit breaker for AC and DC applications
• Red toggle actuator combines manual switching with circuit protection
• Trip-free design prevents the breaker from being held ON during a fault condition
• Magnetic-hydraulic circuit breaker with high interrupt capacity
• Designed as the industry-standard breaker for Blue Sea Systems electrical panels
• Stainless steel mounting and terminal screws support reliable marine installation
• Rated for up to 10,000 switching cycles
• Operating temperature range from -40°F to 185°F
