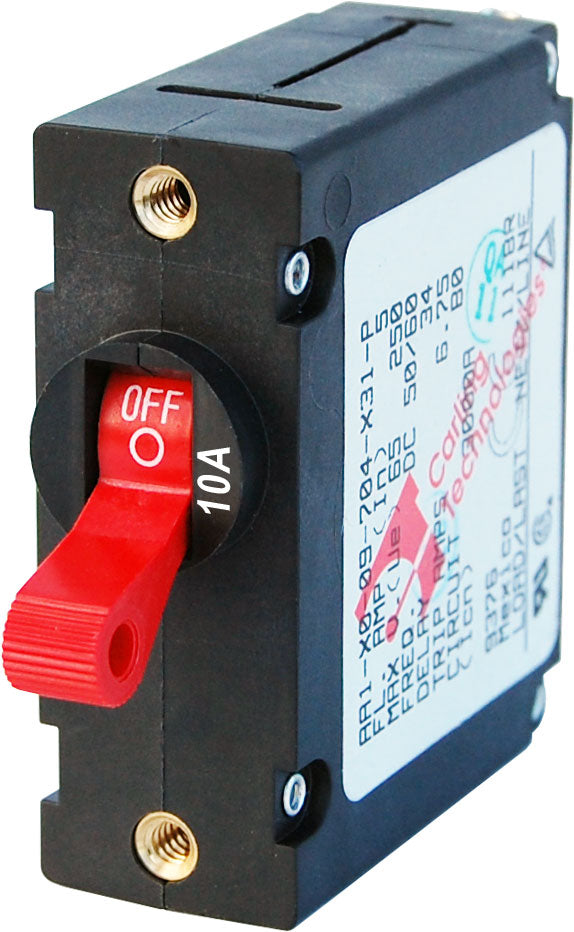

Blue Sea Systems 7205-BSS A-Series Red Toggle Circuit Breaker, Single Pole 10A

Blue Sea 7205 Circuit Breaker AA1Toggle 10A with Red Toggle

Blue Sea Systems 7205-BSS A-Series Red Toggle Circuit Breaker provides dependable circuit protection and switching for marine electrical systems. Rated for 10 amps on both AC and DC applications, this single-pole breaker is designed for use in Blue Sea Systems electrical panels and meets American Boat and Yacht Council (ABYC) standards.

The magnetic-hydraulic, trip-free design combines switching and overcurrent protection in one compact device. Its toggle actuator provides straightforward manual control, while the trip-free mechanism prevents the breaker from being held in the ON position during a fault-current condition. The red actuator offers quick visual identification within a panel.

Built for demanding marine environments, the Blue Sea Systems 7205-BSS supports circuits up to 240 volts AC or 32 volts DC and provides high interrupt capacity for reliable fault protection. Stainless steel mounting and terminal screws help resist corrosion, while the breaker’s broad operating temperature range supports installation in a variety of onboard electrical applications. With a rated switching life of up to 10,000 cycles, it is well suited for service, distribution, and control panels.

Specifications
Brand: Blue Sea Systems
Part Number: 7205-BSS
Breaker Type: Magnetic-hydraulic, trip-free
Actuator: Red toggle
Poles: Single pole
Amperage: 10A AC, 10A DC
Maximum Voltage: 240V AC, 32V DC
Operating Temperature: -40°F to 185°F
Mounting Hardware: Stainless steel

California Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features:

• Meets American Boat and Yacht Council (ABYC) standards
• Industry-standard circuit breaker for Blue Sea Systems electrical panels
• Combines manual switching and circuit protection in a single device
• Trip-free design prevents the breaker from being held ON during a fault-current condition
• Single-pole configuration with a 10A AC and 10A DC rating
• Red toggle actuator provides clear visual identification
• Supports up to 240V AC and 32V DC applications
• Magnetic-hydraulic protection with high interrupt capacity
• Stainless steel mounting and terminal screws for marine use
• Rated for up to 10,000 switching cycles
