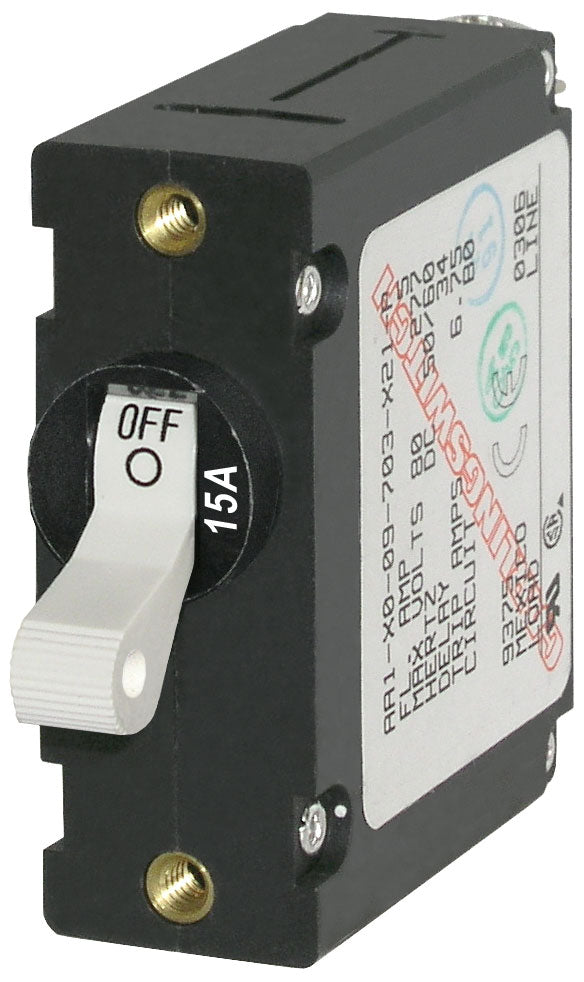

Blue Sea Systems 7210-BSS 15A Single-Pole Circuit Breaker with White Toggle

Blue Sea 7210 Circuit Breaker AA1Toggle 15A with White Toggle

Blue Sea Systems 7210-BSS Circuit Breaker combines dependable circuit protection and manual switching in one compact device for marine electrical systems. Designed for use with Blue Sea Systems electrical panels, this single-pole, 15-amp breaker features a white toggle actuator and meets American Boat and Yacht Council (ABYC) standards. Its magnetic-hydraulic design provides reliable protection against overloads while supporting convenient panel operation.

The trip-free mechanism is designed so the breaker cannot be held in the ON position while a fault current condition is present. This safety feature helps prevent continued energizing of a compromised circuit and supports safer operation aboard boats and other demanding electrical installations. The breaker is rated for 15 amps AC and 15 amps DC, with maximum system ratings of 240 volts AC and 65 volts DC.

Built for long-term service, the Blue Sea Systems 7210-BSS uses stainless steel terminal and mounting hardware and is rated for up to 10,000 switching cycles. It provides an interrupt capacity of up to 3,000 amps at 120 volts AC, 1,500 amps at 240 volts AC under TÜV testing, 3,000 amps at 240 volts AC under UL 1077, and 7,500 amps at 65 volts DC. The operating temperature range extends from -40°F to 185°F, making this breaker suitable for a wide range of marine environments. Terminal screw torque is 14 in-lb, and the breaker is an effective replacement or expansion component for compatible Blue Sea Systems panels. California Proposition 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features:

• ABYC compliant: Meets American Boat and Yacht Council standards for marine electrical applications

• Panel compatibility: Designed as an industry-standard circuit breaker for Blue Sea Systems electrical panels

• Combined function: Provides circuit switching and overcurrent protection in one device

• Trip-free operation: Cannot be held ON during a fault current condition

• Electrical rating: Supports 15A AC and 15A DC circuits with maximum ratings of 240V AC and 65V DC

• Construction: Features a single-pole magnetic-hydraulic breaker with a white toggle actuator

• Durability: Includes stainless steel mounting and terminal screws and is rated for 10,000 switching cycles

• Temperature range: Operates from -40°F to 185°F
