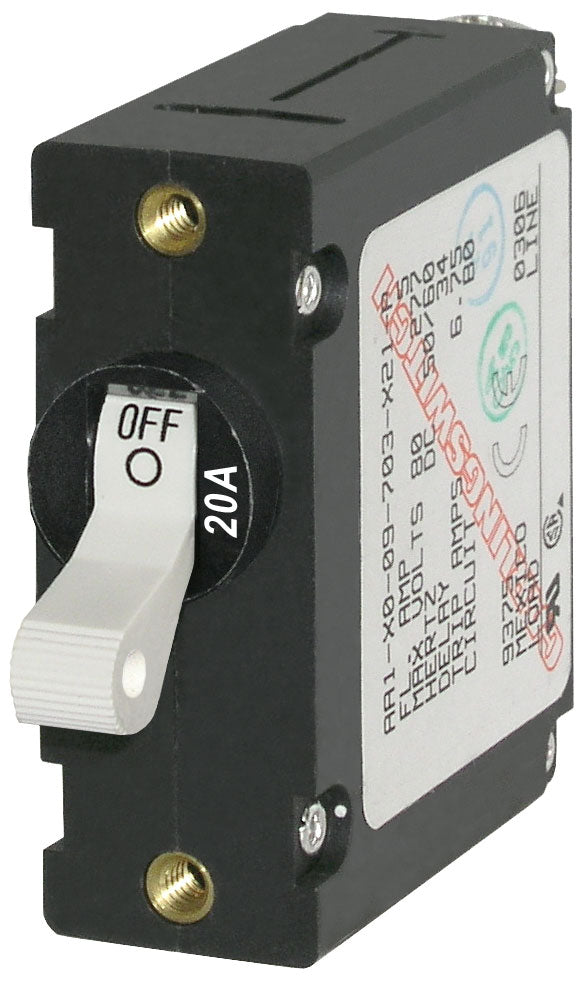

Blue Sea Systems 7214-BSS 20A Single-Pole Circuit Breaker with White Toggle

Blue Sea 7214 Circuit Breaker AA1Toggle 20A with White Toggle

Blue Sea Systems 7214-BSS Circuit Breaker combines reliable circuit protection and manual switching in one compact device. Rated for 20 amps on both AC and DC systems, this single-pole magnetic-hydraulic circuit breaker is designed for marine electrical panels and other demanding applications. Its white toggle actuator provides clear visual operation and convenient control.

The 7214-BSS meets American Boat and Yacht Council (ABYC) standards and is the industry-standard circuit breaker for Blue Sea Systems electrical panels. Its trip-free design prevents the actuator from being held in the ON position during a fault-current condition, helping provide dependable protection when it is needed. The breaker supports systems up to 240 volts AC or 65 volts DC, with high interrupt capacity for a range of electrical installations.

Built for long-term service, this Blue Sea Systems circuit breaker uses stainless steel terminal screws and a stainless steel #6-32 mounting screw. The screw terminals accept a recommended torque of 14 inch-pounds, and the breaker is rated for up to 10,000 switching cycles. Operating performance is supported across temperatures from -40°F to 185°F. The 7214-BSS is an effective choice for replacing or installing a panel-mounted circuit breaker where dependable marine-grade protection and straightforward toggle operation are required. California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov for more information.

Features:

• 20-amp rating for both AC and DC electrical systems

• Single-pole circuit breaker with white toggle actuator

• Combines circuit protection and manual switching in one device

• Trip-free design prevents the breaker from being held ON during a fault condition

• Meets American Boat and Yacht Council (ABYC) standards

• Supports up to 240 volts AC or 65 volts DC

• Magnetic-hydraulic circuit breaker construction

• Rated for up to 10,000 switching cycles

• Stainless steel terminal and mounting screws
