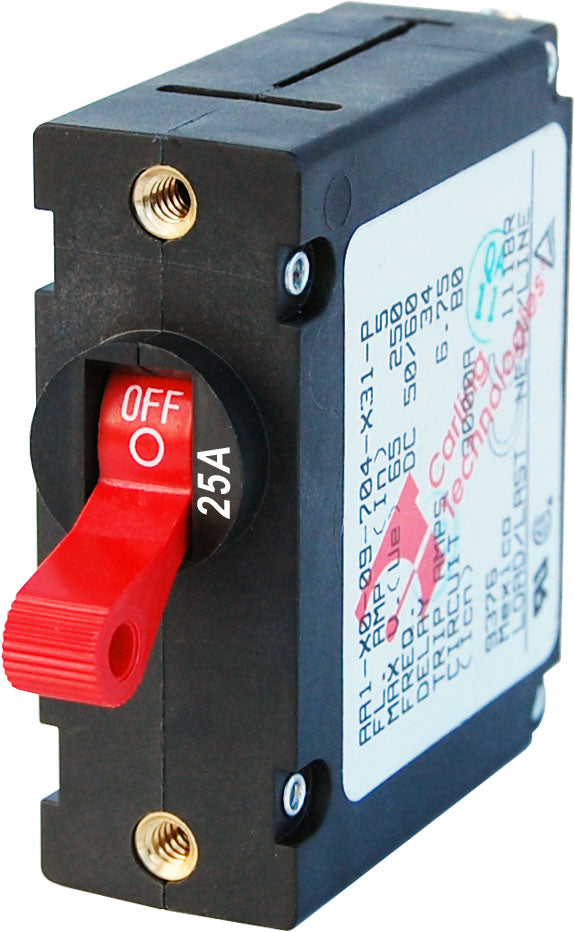

Blue Sea Systems 7217-BSS A-Series Red Toggle Circuit Breaker, Single Pole 25A

Blue Sea 7217 Circuit Breaker AA1Toggle 25A with Red Toggle

Blue Sea Systems 7217-BSS A-Series Red Toggle Circuit Breaker provides dependable circuit protection and switching for marine electrical panels. This single-pole breaker is rated for 25 amps on both AC and DC circuits and features a clearly visible red toggle actuator for convenient operation. Designed as an industry-standard component for Blue Sea Systems electrical panels, it combines overcurrent protection and manual switching in one compact device.

The magnetic-hydraulic, trip-free design allows the breaker to respond safely during fault conditions. The actuator cannot be held in the ON position when a fault current is present, helping prevent continued operation under unsafe electrical conditions. The breaker supports systems up to 240 volts AC or 32 volts DC and delivers high interrupt capacity for a variety of marine and specialty electrical applications.

Built to meet American Boat and Yacht Council (ABYC) standards, the Blue Sea Systems 7217-BSS is suitable for installations that require reliable performance, straightforward panel integration, and durable marine-grade hardware. Stainless steel mounting and terminal screws support corrosion resistance, while the breaker is designed for long service life with up to 10,000 switching cycles. Operating performance is specified from -40°F to 185°F, making it suitable for demanding temperature environments.

Specifications
Amperage: 25A AC and 25A DC
Color: Red
Actuator Style: Toggle
Poles: Single pole
Maximum Voltage: 240V AC and 32V DC
Circuit Breaker Type: Magnetic hydraulic, trip-free
Mounting Hardware: Stainless steel screws
Standards: Meets ABYC standards
Prop 65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features:

• 25A AC and DC rating supports a broad range of marine electrical circuits
• Single-pole design integrates switching and circuit protection in one device
• Red toggle actuator provides clear visual status and convenient operation
• Trip-free magnetic-hydraulic mechanism prevents the breaker from being held ON during a fault
• Supports systems up to 240V AC or 32V DC
• Meets American Boat and Yacht Council (ABYC) standards
• Stainless steel mounting and terminal screws provide durable marine-grade construction
• Designed for up to 10,000 switching cycles
