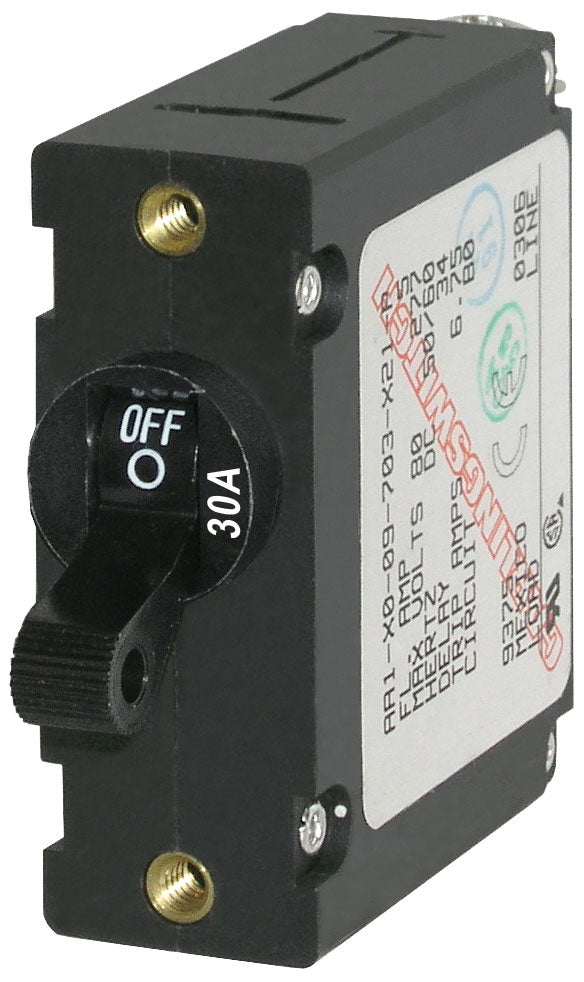

Blue Sea Systems 7220-BSS A-Series Single-Pole 30A Black Toggle Circuit Breaker

Blue Sea 7220 Circuit Breaker AA1Toggle 30A with Black Toggle

Blue Sea Systems 7220-BSS A-Series Black Toggle Circuit Breaker provides dependable circuit protection and switching for marine electrical panels. Rated for 30 amps in both AC and DC applications, this single-pole breaker is designed for boat electrical systems and meets American Boat and Yacht Council (ABYC) standards. Its black toggle actuator offers clear, convenient manual control while maintaining a clean, professional panel appearance.

Combining a switch and circuit protection device in one compact component, the Blue Sea Systems 7220-BSS helps simplify panel installation and operation. Its magnetic-hydraulic, trip-free design automatically interrupts an overloaded or faulted circuit and cannot be held in the ON position during a fault-current condition. The breaker supports systems up to 240 volts AC or 32 volts DC and delivers high interrupt capacity for demanding electrical applications.

Built for long-term marine use, this circuit breaker features stainless steel mounting and terminal screws for corrosion resistance and reliable electrical connections. It is suitable for use with Blue Sea Systems electrical panels and other compatible panel configurations. The breaker is designed to operate in temperatures from -40°F to 185°F and is rated for up to 10,000 switching cycles, making it a practical choice for new installations, panel upgrades, and replacement applications.

Specifications
Brand: Blue Sea Systems
Part Number: 7220-BSS
Amperage: 30A AC / 30A DC
Poles: Single pole
Maximum Voltage: 240V AC / 32V DC
Actuator Style: Toggle
Circuit Breaker Type: Magnetic hydraulic, trip free
Mounting Hardware: #6-32 stainless steel mounting screw
Terminal Hardware: #10-32 stainless steel terminal screws
Mounting Screw Torque: 6 in-lb
Terminal Screw Torque: 14 in-lb

Features:

• 30A AC and 30A DC circuit protection
• Single-pole configuration with black toggle actuator
• Meets American Boat and Yacht Council (ABYC) standards
• Combines switching and circuit protection in one device
• Trip-free design prevents the breaker from being held ON during a fault condition
• Magnetic-hydraulic circuit breaker construction
• Compatible with Blue Sea Systems electrical panels
• Stainless steel mounting and terminal screws
• Rated for up to 10,000 switching cycles
• Operating temperature range from -40°F to 185°F
