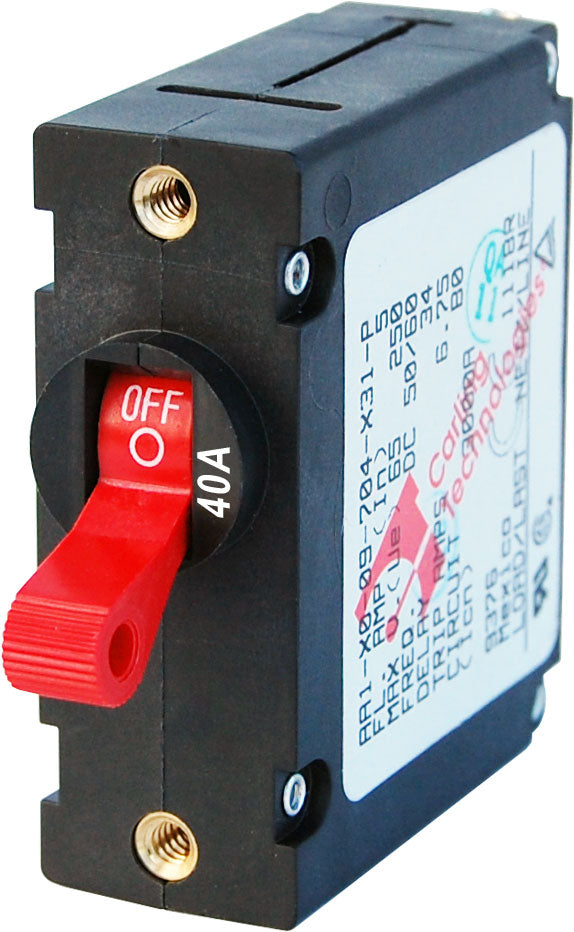

Blue Sea Systems 7225-BSS A-Series Red Toggle Circuit Breaker, Single Pole, 40A

Blue Sea 7225 Circuit Breaker AA1Toggle 40A with Red Toggle

Blue Sea Systems 7225-BSS A-Series Red Toggle Circuit Breaker provides dependable circuit protection and switching for marine electrical systems. Designed as a single-pole, 40-amp breaker, it supports both 40A AC and 40A DC applications with maximum ratings of 240V AC and 32V DC. Its red toggle actuator offers clear visual identification and convenient manual control in electrical panels.

The Blue Sea Systems 7225-BSS combines switching and overcurrent protection in one compact device, making it an industry-standard choice for Blue Sea Systems electrical panels. Its magnetic-hydraulic, trip-free design prevents the toggle from being held in the ON position during a fault current condition, helping support safe and reliable operation. The breaker meets American Boat and Yacht Council (ABYC) standards and is suitable for demanding marine environments.

Built with stainless steel mounting and terminal screws, this circuit breaker is designed for long-term service and repeated operation. It provides interrupt capacity up to 3,000A at 120V AC, 1,500A at 240V AC under TÜV testing, 3,000A at 240V AC under UL 1077, and 7,500A at 65V DC. Operating performance is rated across a broad temperature range from -40°F to 185°F. Always follow the manufacturer’s installation instructions and specified torque requirements when installing the Blue Sea Systems 7225-BSS.

California Proposition 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Features:

• Brand: Blue Sea Systems
• Part Number: 7225-BSS
• Amperage: 40A AC and 40A DC
• Pole Configuration: Single pole
• Maximum Voltage: 240V AC and 32V DC
• Actuator Style: Red toggle
• Circuit Breaker Type: Magnetic-hydraulic, trip-free
• Standards: Meets American Boat and Yacht Council (ABYC) standards
• Function: Combines switching and circuit protection in one device
• Interrupt Capacity: Up to 3,000A at 120V AC, 1,500A at 240V AC under TÜV testing, 3,000A at 240V AC under UL 1077, and 7,500A at 65V DC
• Operating Temperature: -40°F to 185°F
• Mounting Hardware: Stainless steel mounting and terminal screws
• Switching Life: Rated for 10,000 switching cycles
