SKU:BSS7226

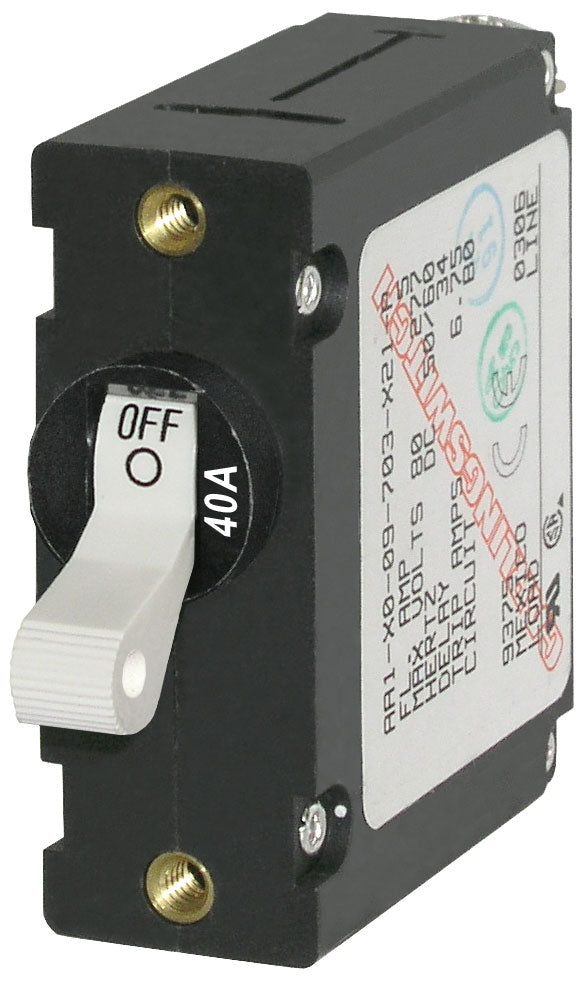

Blue Sea Systems 7226-BSS A-Series White Toggle Circuit Breaker
The Blue Sea Systems 7226-BSS is a single-pole, 40-amp circuit breaker designed for reliable AC and DC circuit protection in marine electrical systems. Its white toggle actuator provides clear manual switching, while the magnetic-hydraulic design combines circuit protection and switching in one compact device. Rated for systems up to 240 volts AC or 32 volts DC, this breaker is well suited for Blue Sea Systems electrical panels and other compatible marine distribution applications.
Built to meet American Boat and Yacht Council (ABYC) standards, the 7226-BSS features a trip-free design that prevents the actuator from being held in the ON position during a fault-current condition. Stainless steel terminal and mounting screws support dependable installation in demanding marine environments. The breaker is rated for up to 10,000 switching cycles and operates across a broad temperature range from -40°F to 185°F.
Specifications
Amperage: 40A AC and 40A DC
Color: White
Actuator Style: Toggle
Poles: Single pole
Maximum Voltage: 240V AC and 32V DC
Circuit Breaker Type: Magnetic-hydraulic, trip-free
Interrupt Capacity: Up to 3,000A at 120V AC, 1,500A at 240V AC under TÜV, 3,000A at 240V AC under UL 1077, and 7,500A at 65V DC
Mounting Hardware: #6-32 stainless steel mounting screw
Terminal Hardware: #10-32 stainless steel terminal screws
Mounting Screw Torque: 6 in-lb
Screw Terminal Torque: 14 in-lb
Switching Cycles: 10,000
Safety Warning: This product can expose you to chemicals including substances known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov for more information.
