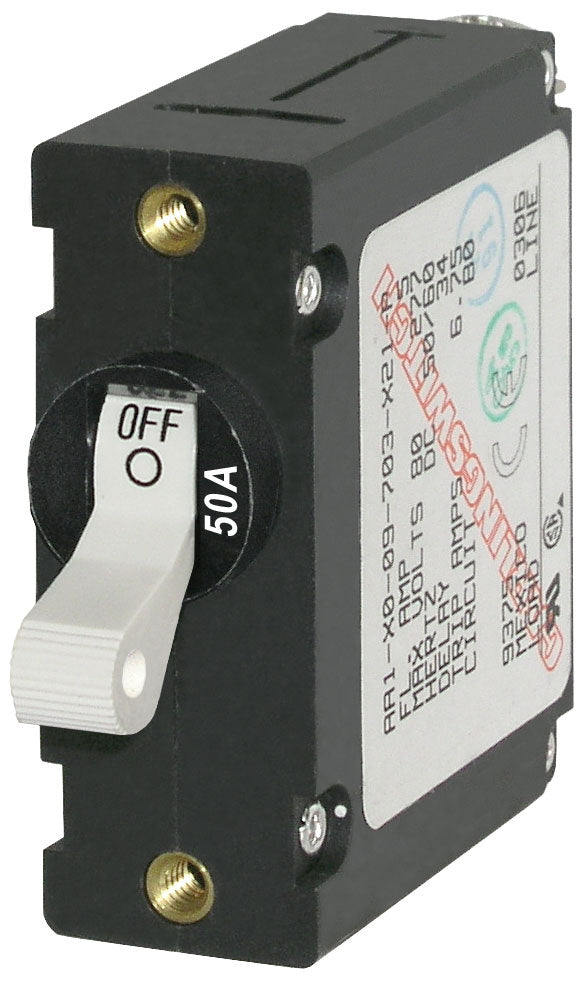

Blue Sea Systems 7230-BSS A-Series White Toggle Circuit Breaker, Single Pole 50A

Blue Sea 7230 Circuit Breaker AA1Toggle 50A with White Toggle

Blue Sea Systems 7230-BSS A-Series White Toggle Circuit Breaker provides dependable circuit protection and switching for marine electrical systems. Rated at 50 amps for both AC and DC applications, this single-pole breaker is designed for use with Blue Sea Systems electrical panels and meets American Boat and Yacht Council (ABYC) standards.

The integrated toggle combines circuit control and overcurrent protection in one compact device. Its magnetic-hydraulic, trip-free design prevents the actuator from being held in the ON position during a fault current condition, helping improve safety and system reliability. The white toggle offers clear visual identification and straightforward operation in marine power distribution applications.

Model 7230-BSS supports systems up to 240 volts AC or 32 volts DC and provides high interrupt capacity for demanding electrical environments. Stainless steel mounting and terminal screws support long-term durability, while the breaker is rated for up to 10,000 switching cycles. It operates in temperatures from -40°F to 185°F, making it suitable for a wide range of onboard conditions. Follow the manufacturer’s installation instructions and applicable electrical standards when selecting and installing this Blue Sea Systems circuit breaker.

Specifications
Amperage: 50A AC and 50A DC
Color: White
Actuator Style: Toggle
Poles: Single pole
Maximum Voltage: 240V AC and 32V DC
Circuit Breaker Type: Magnetic-hydraulic, trip-free
Mounting Hardware: Stainless steel screws
Switching Cycles: Up to 10,000

Features:

• Meets American Boat and Yacht Council (ABYC) standards
• Industry-standard circuit breaker for Blue Sea Systems electrical panels
• Combines switching and circuit protection in a single device
• Trip-free design prevents the breaker from being held ON during a fault condition
• 50A rating for AC and DC applications
• Single-pole white toggle configuration
• Supports up to 240V AC or 32V DC systems
• Magnetic-hydraulic circuit breaker design
• Stainless steel mounting and terminal screws
• Rated for up to 10,000 switching cycles
