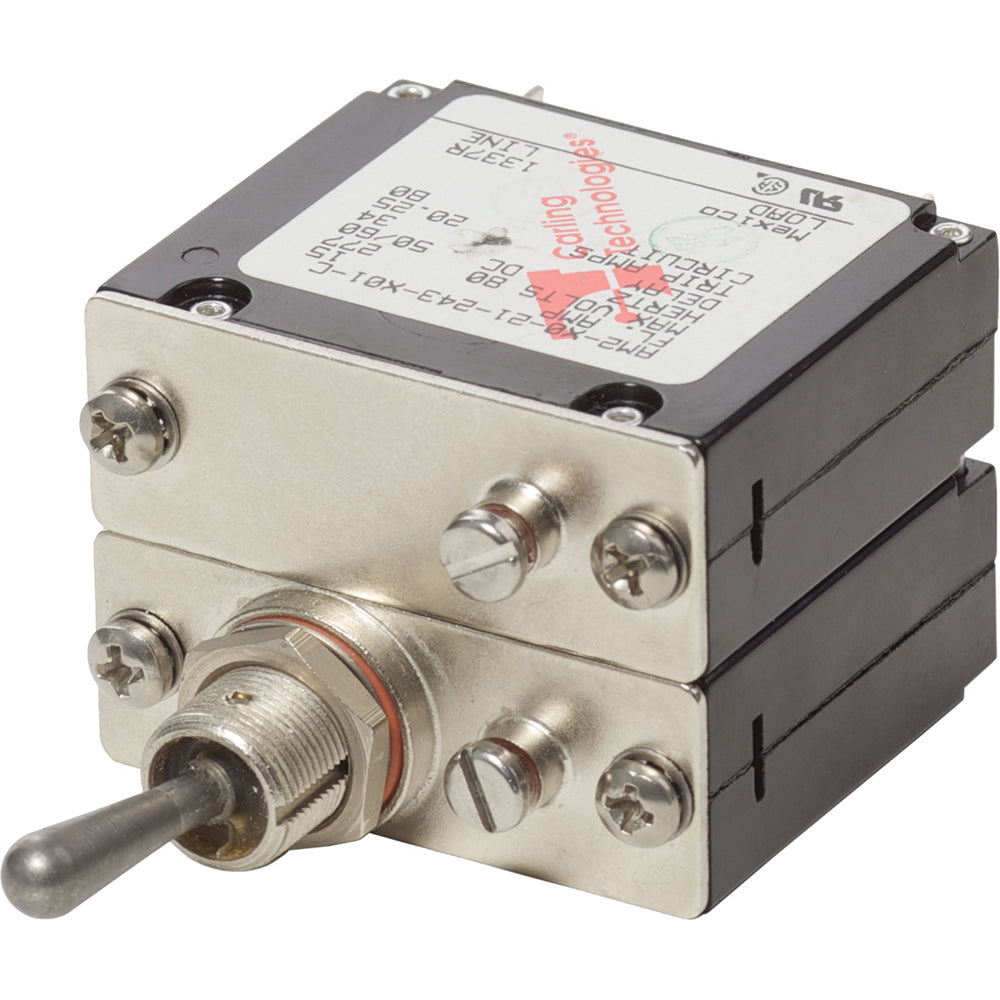

Blue Sea Systems 7312 COTS Military Grade 15 Amp Circuit Breaker

7312 COTS Military Grade A-Series 15 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

• Amperage: 15A
• Actuator Style: Metal Toggle
• Poles: 2
• Max Voltage: 277V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Interrupt Capacity: 1500 A AC, 7500A DC
• Min Operating Temp: -40C
• Max Operating Temp: 85C
• Mounting Boss: 1/2-32 Hex Nut SS
• Mounting Nut Torque: 30"-lb
• Screw Terminal Torque: 14"-lb
• Switching Cycles: 6000 Electrical/4000 Mechanical
• Terminal Screw: #10-32 SS
• Weight: 0.13lb (0.06 kg)
• UL 1077

The Blue Sea Systems 7312 COTS Military Grade A-Series 15 Amp circuit breaker is engineered to meet demanding military specifications, making it suitable for critical applications requiring high reliability and safety. Designed with a rugged metal toggle actuator, this breaker offers durability and ease of operation in harsh environments. It features a 2-pole configuration capable of handling up to 277V AC and 65V DC, providing versatile power protection for various electrical systems. With a magnetic hydraulic trip mechanism that is trip-free, it ensures continuous circuit protection without manual reset after fault conditions. Its interrupt capacity of 1500 amps AC and 7500 amps DC guarantees safe disconnection during short circuits or overloads, aligning with military and industrial standards. The breaker is built for reliable performance over numerous switching cycles, with 6000 electrical and 4000 mechanical operations, ensuring long-term dependability. This model is rated for operation in extreme temperatures from -40°C to 85°C, making it suitable for diverse environmental conditions. It features a 1/2-32 hex nut stainless steel mounting boss with a torque of 30 inch-pounds and screw terminal torque of 14 inch-pounds, facilitating secure installation. Compact and lightweight at approximately 0.13 pounds, the circuit breaker complies with UL 1077 standards, ensuring safety and quality assurance. Ideal for use in military, industrial, and marine applications where rugged performance and compliance are essential, the Blue Sea Systems 7312 circuit breaker provides robust electrical protection in a compact form factor.

Features:

• Amperage: 15A for reliable circuit protection

• Actuator Style: Metal toggle for durability and ease of use

• Poles: 2-pole configuration suitable for multi-wire systems

• Maximum Voltage: Supports up to 277V AC and 65V DC

• Circuit Breaker Type: Magnetic hydraulic trip-free mechanism for safety

• Interrupt Capacity: Handles up to 1500A AC and 7500A DC faults

• Operating Temperature Range: -40°C to 85°C for versatile deployment

• Mounting Hardware: Stainless steel 1/2-32 hex nut with 30 inch-pound torque

• Terminal Connection: #10-32 stainless steel screw terminals with 14 inch-pound torque

• Switching Cycles: Rated for 6000 electrical and 4000 mechanical operations

• Standards: UL 1077 certified for safety and quality
