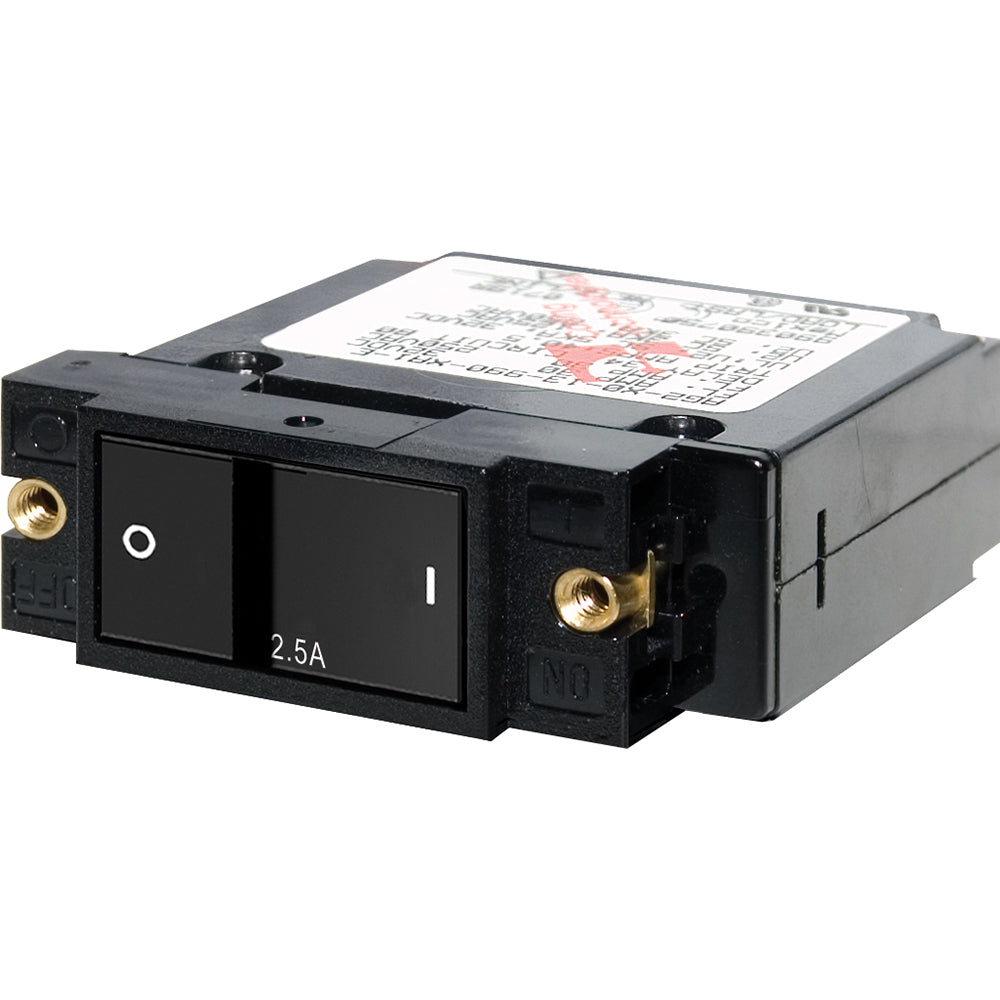

Blue Sea Systems 7399 A-Series Flat Rocker Circuit Breaker - Single Pole 2.5A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• 2 different actuator styles available

• Prevents accidental switching of 24 hour circuits

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 2.5A DC / 2.5A AC

• Actuator Style: Flat Rocker

• Poles: 1

• Max Voltage:250V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - Trip Free

• Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.21lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7399 A-Series flat rocker circuit breaker provides reliable overcurrent protection for your electrical system. Designed with a flush-mounted rocker actuator, it minimizes accidental switching by ensuring the actuator remains securely in the "ON" position. The color-coded actuator clearly indicates when the breaker is in the "OFF" position, enhancing safety and operational awareness. Its "trip free" mechanism ensures that the circuit cannot be held "ON" during a fault current, offering added protection against electrical faults. This single-pole breaker supports both AC and DC circuits up to 250V AC and 32V DC, making it versatile for various applications. With a maximum interrupt capacity of 3000A at 125V AC and 1500A at 250V AC, it provides robust protection under fault conditions. The breaker features a magnetic hydraulic trip mechanism that is designed to trip quickly and reliably when necessary. It is rated for up to 10,000 switching cycles, ensuring durability in demanding environments. The breaker is compatible with #6-32 stainless steel mounting screws, and terminal screws are rated for #10-32 stainless steel, facilitating secure connections. Operating within a temperature range of -40°C to 85°C, it is suitable for diverse climates and installation sites. The compact design weighs approximately 0.21 pounds, making it easy to incorporate into various electrical panels or enclosures. The breaker's international ON/OFF symbols support both vertical and horizontal mounting orientations, providing flexibility in installation. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and proper handling procedures should be followed.

Ideal for marine, RV, or other mobile applications, the Blue Sea Systems 7399 circuit breaker offers dependable, easy-to-operate overcurrent protection with a focus on safety and durability. Its high interrupt capacity and rugged construction make it suitable for both temporary and long-term electrical systems, ensuring reliable performance over its extensive switching cycle life.

Features:

• Flush-mounted rocker actuator minimizes accidental switching

• Color-coded actuator indicates "OFF" position for safety

• Trip free design prevents holding the breaker "ON" during faults

• Supports both vertical and horizontal mounting orientations

• High interrupt capacity for reliable fault protection

• Durable magnetic hydraulic trip mechanism

• Rated for up to 10,000 switching cycles

• Compatible with stainless steel mounting and terminal screws

• Operates efficiently across a wide temperature range

• Compact and lightweight for versatile installation
