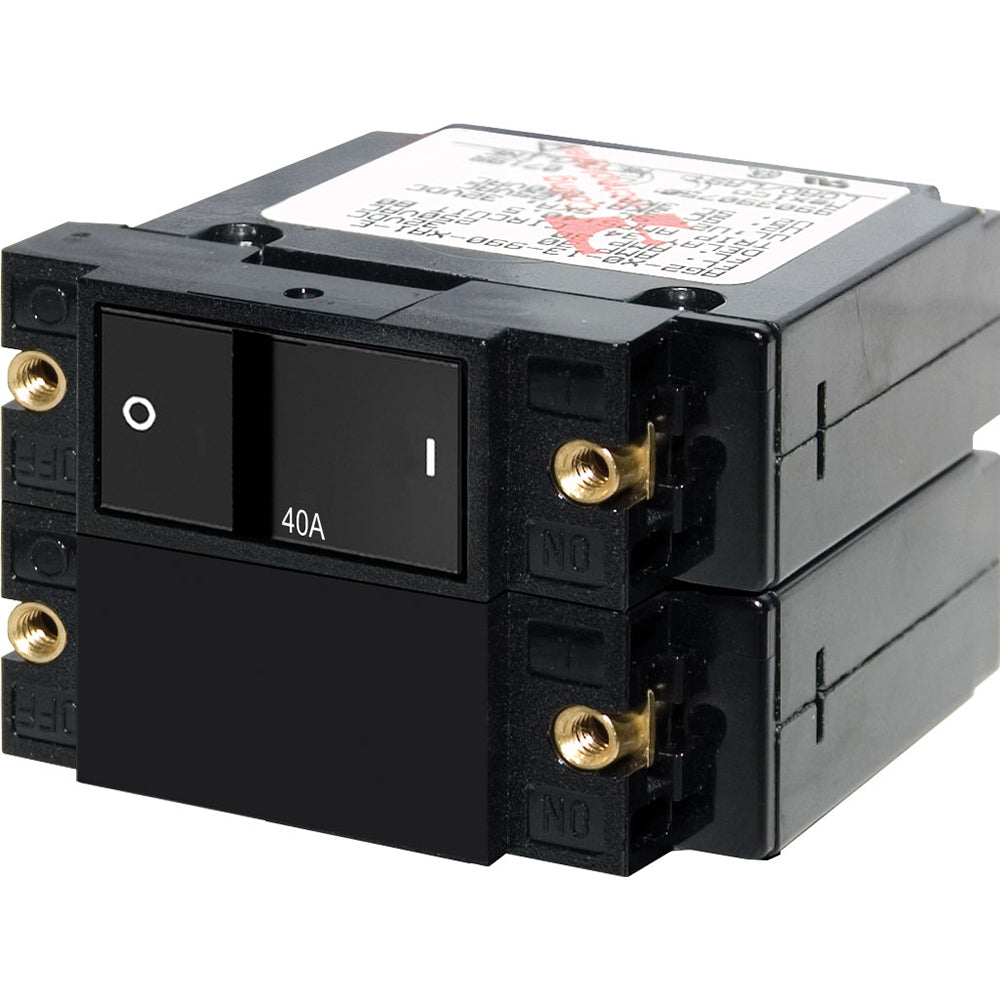

Blue Sea Systems 7416 A-Series Double Pole 40A Flat Rocker Circuit Breaker

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage : 40A AC / 40A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7416 A-Series Flat Rocker Circuit Breaker provides reliable overcurrent protection for your electrical system. Designed with a clean and modern look, this double pole breaker supports both AC and DC applications, offering a maximum voltage of up to 240V AC and 32V DC. Its flat rocker actuator features a color indicator that clearly shows the "OFF" position, ensuring quick and easy status recognition. The breaker's trip-free design prevents it from being held "ON" during fault conditions, enhancing safety and protecting your wiring from damage.

Built with durability in mind, this circuit breaker supports up to 10,000 switching cycles, making it suitable for demanding environments. It features international ON/OFF symbols, allowing flexible mounting orientations—vertical or horizontal—to fit your specific panel setup. The breaker's robust #6-32 stainless steel mounting screw and #10-32 terminal screw ensure secure installation and reliable electrical connections. With an interrupt capacity of 3000A at 240V AC and 5000A at 32V DC, it provides ample protection against high fault currents. Operating efficiently within temperatures ranging from -40°C to 85°C, the breaker is suitable for a variety of marine, RV, or industrial applications.

It measures approximately 3 inches in length, 3 inches in width, and 0.5 inches in height, with a weight of about 0.38 pounds. The breaker's rugged construction and safety features make it a dependable choice for protecting electrical circuits and preventing damage caused by short circuits or overloads. Proper installation with torque specifications ensures optimal performance and safety. Note that this product may contain chemicals known to cause reproductive harm, as per California's Proposition 65. For detailed information, visit P65Warnings.ca.gov.

Features:

• Color actuator indicates 'OFF' position for quick status identification

• 'Trip Free' design prevents holding the breaker 'ON' during fault conditions

• Supports vertical or horizontal mounting with international ON/OFF symbols

• Supports 40A current at both AC and DC voltages

• High interrupt capacity suitable for demanding electrical environments

• Durable construction supporting up to 10,000 switching cycles

• Operates within a wide temperature range for versatile applications

• Secure mounting with stainless steel screws for reliable installation
