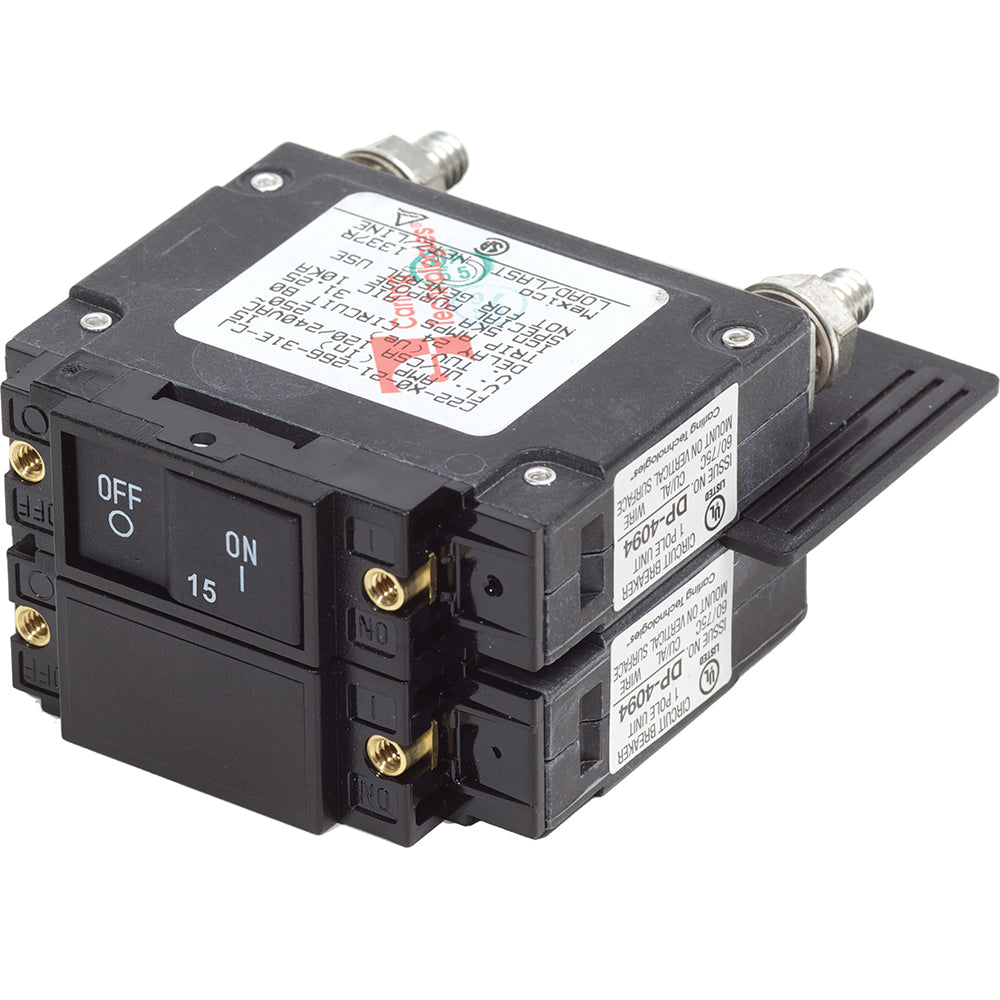

Blue Sea Systems 7462 UL-489 15A Flat Rocker Circuit Breaker for Marine and Vessel Use

7462 UL-489 Circuit Breaker - 15A Flat Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage: 15A AC
• Actuator Style: Flat Rocker
• Poles: 2
• Maximum Voltage: 240V AC
• Circuit Breaker Type: Magnetic HydraulicTrip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7462 UL-489 Circuit Breaker is designed to meet rigorous UL-489 standards, making it suitable for marine applications on Navy, Army, Coast Guard vessels, and other maritime environments covered under CFR 46. This 15-amp circuit breaker features a durable flat rocker actuator that provides reliable operation and easy manual control. Its dual-pole configuration allows for efficient circuit management, supporting up to 240V AC, ensuring safety and compliance in demanding conditions. The magnetic hydraulic trip mechanism offers precise protection against overloads and short circuits, with an interrupt capacity of 5000 amps for enhanced safety. The breaker is engineered to operate reliably across a wide temperature range from -40°C to 85°C, ensuring performance in extreme marine environments. The mounting is straightforward with #6-32 stainless steel screws, and the terminal stud torque is specified at 35 in-lb for secure connections. With a switching cycle capacity of 10,000 operations, this breaker provides long-lasting service in continuous use applications. Its lightweight design, weighing approximately 0.23 pounds, makes it suitable for space-constrained installations. This UL-489-compliant breaker is an essential component for marine electrical systems requiring high standards of safety, durability, and compliance. Be aware that this product may contain chemicals such as DEHP, which are recognized to cause health issues according to California Proposition 65. For more information, visit P65Warnings.ca.gov.

Features:

• UL-489 compliance suitable for marine and vessel applications

• 15A AC amperage with dual-pole design for efficient circuit control

• Maximum voltage support of 240V AC for versatile use

• Magnetic hydraulic trip mechanism for precise overload protection

• Interrupt capacity of 5000A for high safety margin

• Operates reliably in temperatures from -40°C to 85°C

• Secure mounting with #6-32 stainless steel screws and specified torque

• Long service life with 10,000 switching cycles

• Lightweight design for easy installation in space-constrained environments
