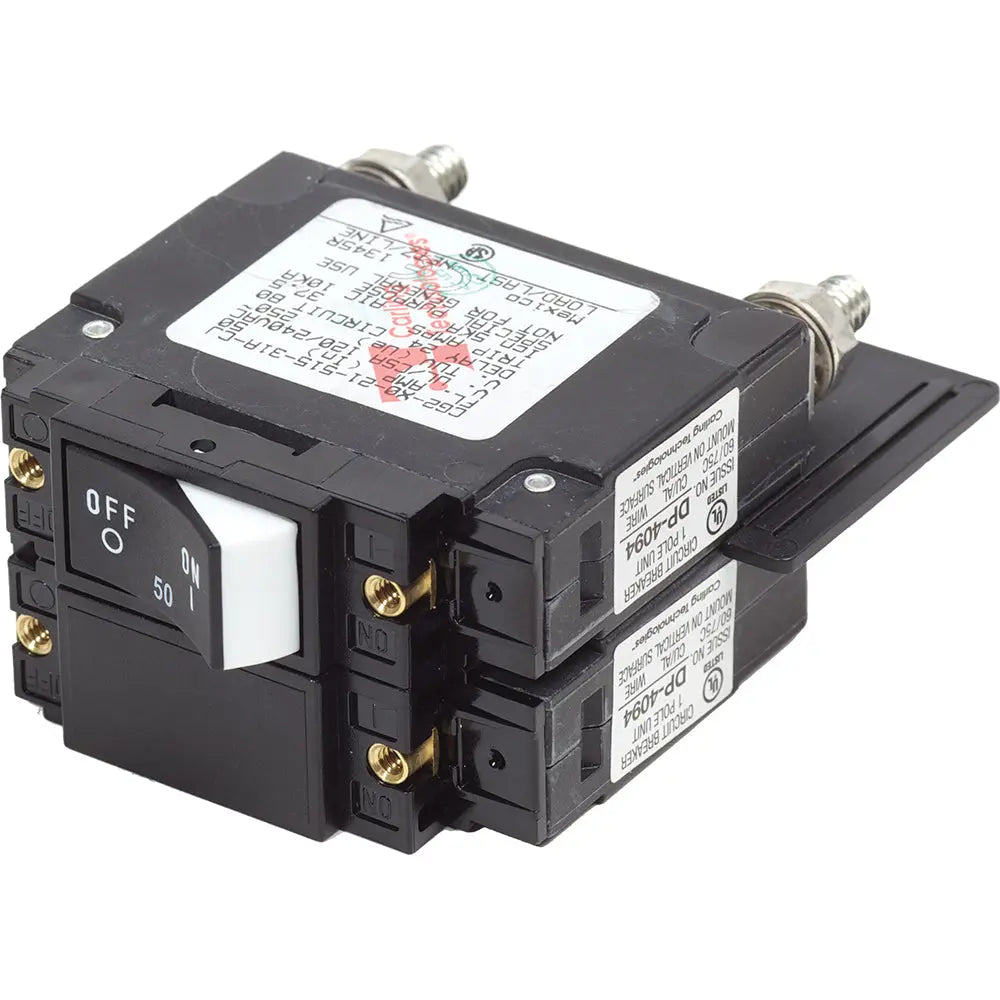

Blue Sea Systems 7467 UL-489 50A Raised Rocker Circuit Breaker for Marine and Industrial Use

7467 UL-489 Circuit Breaker - 50A Raised Rocker

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)

Specifications:

• Amperage: 50A AC
• Actuator Style: Raised Rocker
• Poles: 2
• Maximum Voltage: 250V AC
• Circuit Breaker Type: Magnetic HydraulicTrip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7467 UL-489 Circuit Breaker is designed for demanding marine and industrial applications that require UL-489 compliance. This 50-ampere alternating current (AC) circuit breaker features a raised rocker actuator, providing easy operation and clear status indication. Built with two poles, it supports a maximum voltage of 250V AC and offers a high interrupt capacity of 5000A, ensuring reliable protection for your electrical systems. Its magnetic hydraulic trip mechanism prevents nuisance tripping, and the breaker is rated for up to 10,000 switching cycles for durability in frequent use environments. The device is suitable for use in vessels such as Navy, Army, or Coast Guard ships, as well as other vessels covered under CFR 46 regulations, making it an essential component for marine electrical systems.

The breaker mounts easily using a #6-32 stainless steel screw with a torque specification of 8 in-lb, ensuring a secure fit. Its operating temperature range from -40°C to 85°C allows reliable operation in diverse conditions. The terminal studs are torqued at 35 in-lb for optimal electrical contact. With a lightweight design of approximately 0.23 pounds, this breaker is suitable for space-constrained applications. The product also features a warning about potential chemical exposure, including di(2-ethylhexyl)phthalate (DEHP), which is known to cause health risks according to California law. For additional details, visit P65Warnings.ca.gov.

This UL-489 approved circuit breaker by Blue Sea Systems offers dependable overload and short-circuit protection for your marine or industrial electrical systems, ensuring safety and compliance while maintaining operational integrity.

Features:

• UL-489 compliance suitable for marine vessels and industrial applications

• 50A AC amperage with a maximum voltage of 250V AC

• Raised rocker actuator for easy operation and clear status indication

• Two-pole design supporting reliable circuit protection

• Magnetic hydraulic trip mechanism prevents nuisance tripping

• High interrupt capacity of 5000A for safety in fault conditions

• Rated for up to 10,000 switching cycles for durability

• Mounts securely with #6-32 stainless steel screw and specified torque

• Temperature range from -40°C to 85°C for versatile use

• Lightweight design at approximately 0.23 pounds
