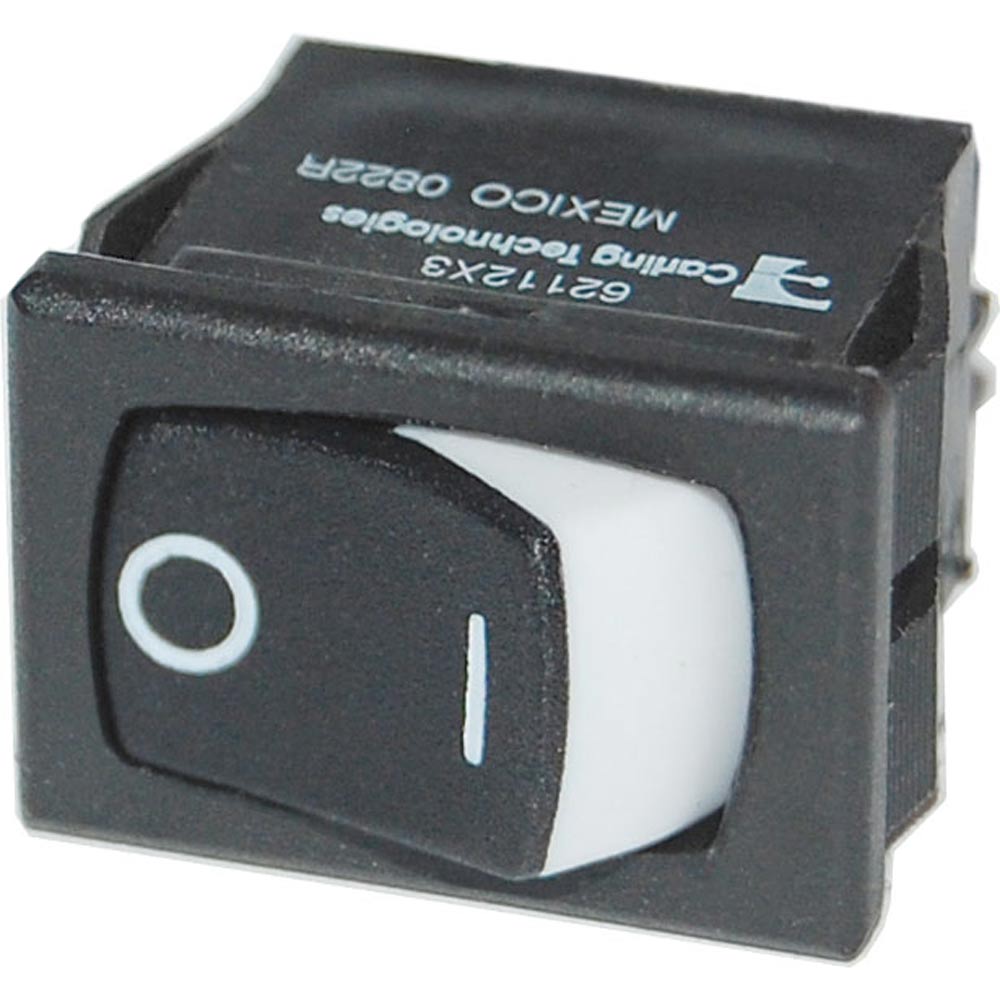

Blue Sea Systems 7480 360 Panel SPST Rocker Switch – ON-OFF, 10A, Quick Connect Terminals

360 Panel - Rocker Switch SPST - ON-OFF

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: ON-OFF

• Pole/Throw**: SPST

• Maximum Amperage***:10A @ 125V AC / 10A @ 12V DC / 10A @ 24V DC / 10A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7480 360 Panel System features a versatile open frame design that supports a broad selection of modules, enabling users to combine multiple functions within a single panel. This flexibility allows for easy customization and future expansion, making it ideal for various electrical control and management applications. Designed for use in 360 panels with modules such as gauges, DC push buttons, switches, and battery management units, this switch offers reliable performance and straightforward installation.

Constructed with a quick connect tab terminal and a compact weight of just 0.08 pounds, the switch provides a durable and efficient solution for controlling circuits up to 10 amps at voltages ranging from 12V DC to 250V AC. Its SPST (Single Pole, Single Throw) action ensures simple ON-OFF operation, suitable for a wide array of switching needs. The switch's robust design and high amperage rating make it appropriate for various automotive, marine, and industrial environments.

Features include a 0.187-inch terminal size for quick and secure connections, and a compact profile that integrates seamlessly into panel layouts. Its innovative open frame system simplifies installation and allows for rapid assembly, saving time during setup and maintenance. This switch complies with safety standards and offers reliable performance across diverse electrical systems, providing peace of mind and operational dependability.

Features:

• Open frame design supports multiple modules for flexible system configuration

• Single Pole, Single Throw (SPST) ON-OFF action for straightforward operation

• Maximum current rating of 10A at voltages from 12V DC to 250V AC

• Quick connect tab terminals for fast and secure wiring

• Compact and lightweight design for easy integration into panels
