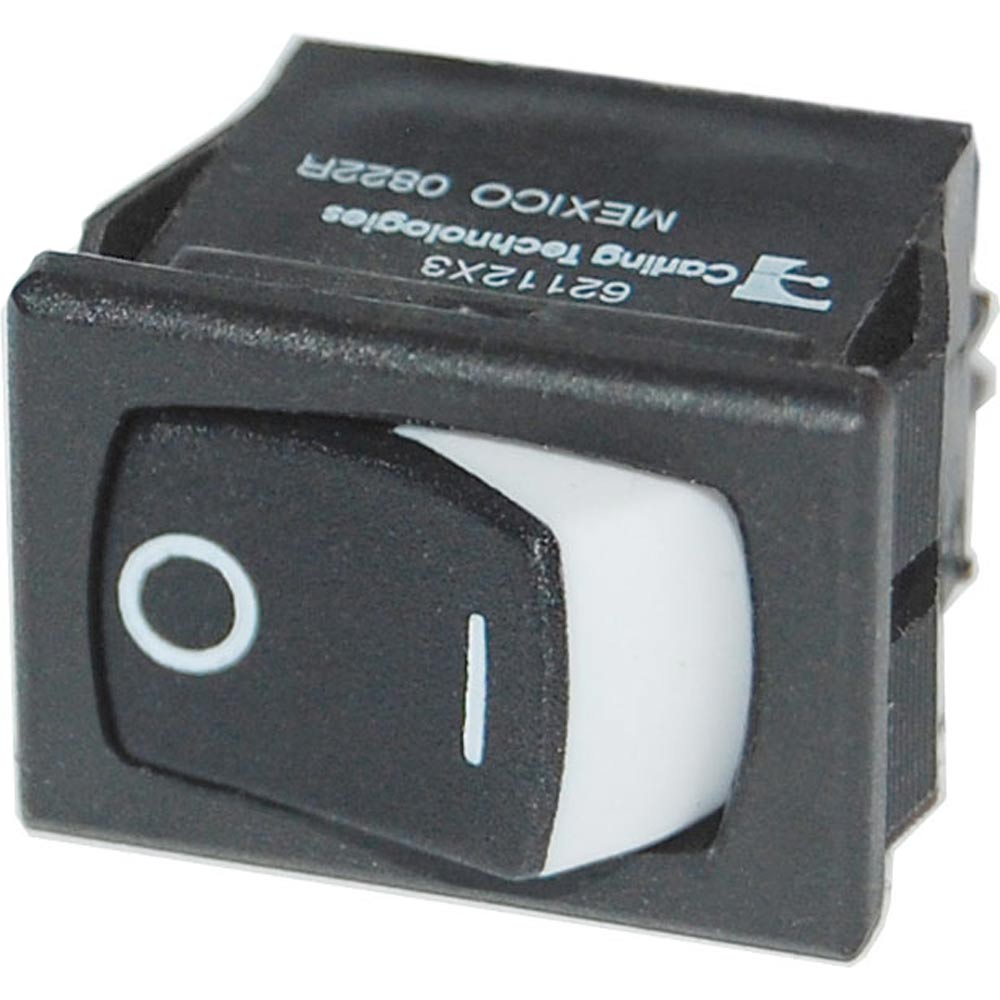

Blue Sea Systems 7481 360 Panel Rocker Switch SPST ON-OFF - Single Pole Single Throw

360 Panel - Rocker Switch SPST - (ON)-OFF

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF

• Pole/Throw**: SPST

• Maximum Amperage***:12A @ 125V AC / 10A @ 12V DC / 10A @ 24V DC / 6A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7481 360 Panel Rocker Switch offers a reliable and versatile control solution designed for the 360 Panel System, which supports a broad range of modules including gauges, DC push buttons, and battery management units. Its open frame design allows for effortless mounting and easy integration into custom panel configurations, providing flexibility for future upgrades or modifications. Crafted for durability and efficiency, this SPST (Single Pole Single Throw) switch ensures straightforward operation with a simple ON-OFF action, making it ideal for various electrical control applications in marine, RV, and industrial environments.

Constructed with a quick connect tab terminal type and a terminal size of 0.187 inches, this switch features a maximum amperage rating of 12A at 125V AC and 10A at 12V or 24V DC, ensuring robust performance under typical load conditions. Its compact weight of approximately 0.08 pounds makes it suitable for space-constrained installations. The switch's design includes a momentary ON action, providing immediate control response, and the SPST configuration offers a straightforward single-pole, single-throw operation for simple circuit switching. Designed to withstand demanding conditions, it is compatible with various wiring setups, provided appropriate fuses and wiring are used to meet safety standards.

Ideal for use in panels that require rapid assembly, flexible feature integration, and reliable switching, the Blue Sea Systems 7481 switch supports multiple circuit configurations, including SPST, SPDT, DPST, and DPDT, broadening its application scope. Its rugged build and open frame mounting system facilitate quick installation and maintenance, making it a dependable choice for professional and DIY electrical projects in marine, automotive, and power distribution systems. Please note that this product contains chemicals that may pose health risks, and proper handling precautions are recommended. For detailed safety information, visit the California Prop 65 website.

Features:

• Open frame design for easy mounting and future upgrades

• SPST (Single Pole Single Throw) ON-OFF switch for straightforward control

• Maximum amperage of 12A at 125V AC and 10A at 12V/24V DC for reliable performance

• Quick connect tab terminals for easy wiring and installation

• Compact weight of approximately 0.08 pounds suitable for space-sensitive applications

• Compatible with various circuit configurations including SPST, SPDT, DPST, and DPDT

• Designed for use in 360 Panel System modules such as gauges and battery management
