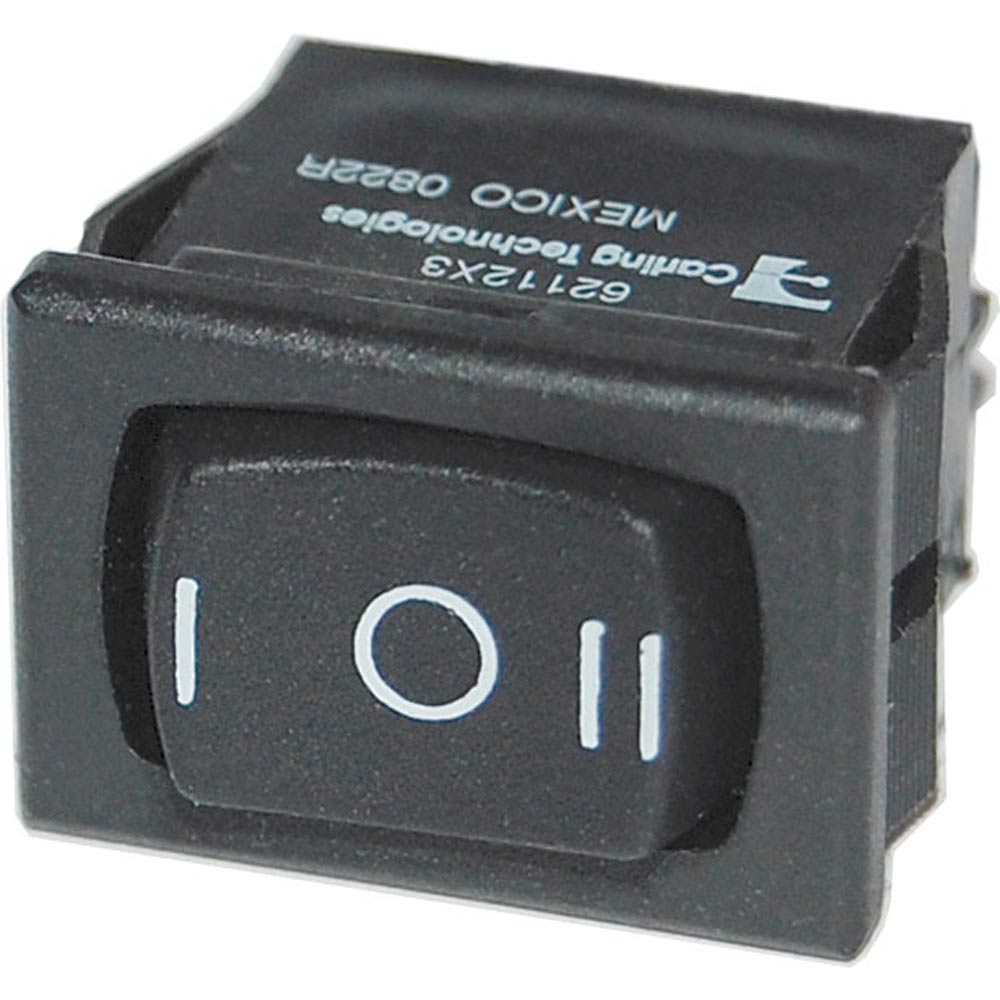

Blue Sea Systems 7482 360 Panel Rocker Switch SPDT On-Off-On

360 Panel - Rocker Switch SPDT - ON-OFF-ON

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: ON-OFF-ON

• Pole/Throw**: SPDT

• Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7482 360 Panel System features a versatile open-frame design that simplifies the mounting of various modules, enabling users to combine multiple functions within a single panel efficiently. This innovative system allows for quick assembly and easy modifications, making it ideal for applications requiring flexibility such as battery management, source selection, and other control functions. Its broad compatibility with modules like gauges and DC push buttons makes it a valuable component in custom electrical setups.

Designed with a robust SPDT (Single Pole Double Throw) action, this rocker switch provides reliable switching capabilities with an on-off-on configuration. Its quick connect tabs facilitate straightforward wiring, reducing installation time while ensuring secure electrical connections. With a maximum amperage rating of 8A at 125V AC and 10A at 12V DC, it supports a wide range of electrical loads, suitable for automotive, marine, and industrial environments. The switch's compact size and lightweight build make it suitable for space-constrained panels, without compromising on performance.

Constructed by Blue Sea Systems, the 7482 switch emphasizes durability and ease of use. Its terminal size of 0.187 inches (4.75mm) ensures compatibility with standard wiring components. This switch is built to withstand various operating conditions, providing dependable performance over time. Additionally, this product complies with safety standards, although it contains materials known to California's Proposition 65 regulations. Proper handling and installation are recommended to ensure safety and optimal functionality.

Features:

• Open frame design for easy module mounting and future modifications

• Versatile 360 Panel system compatible with gauges, push buttons, and battery management modules

• SPDT (Single Pole Double Throw) action with on-off-on configuration for multiple switching options

• Quick connect tabs for simple wiring and secure connections

• Supports up to 8A at 125V AC and 10A at 12V DC for flexible electrical applications

• Compact and lightweight design ideal for space-constrained panels

• Constructed by Blue Sea Systems with durable and reliable components

• Terminal size of 0.187 inches (4.75mm) for consistent wiring compatibility
