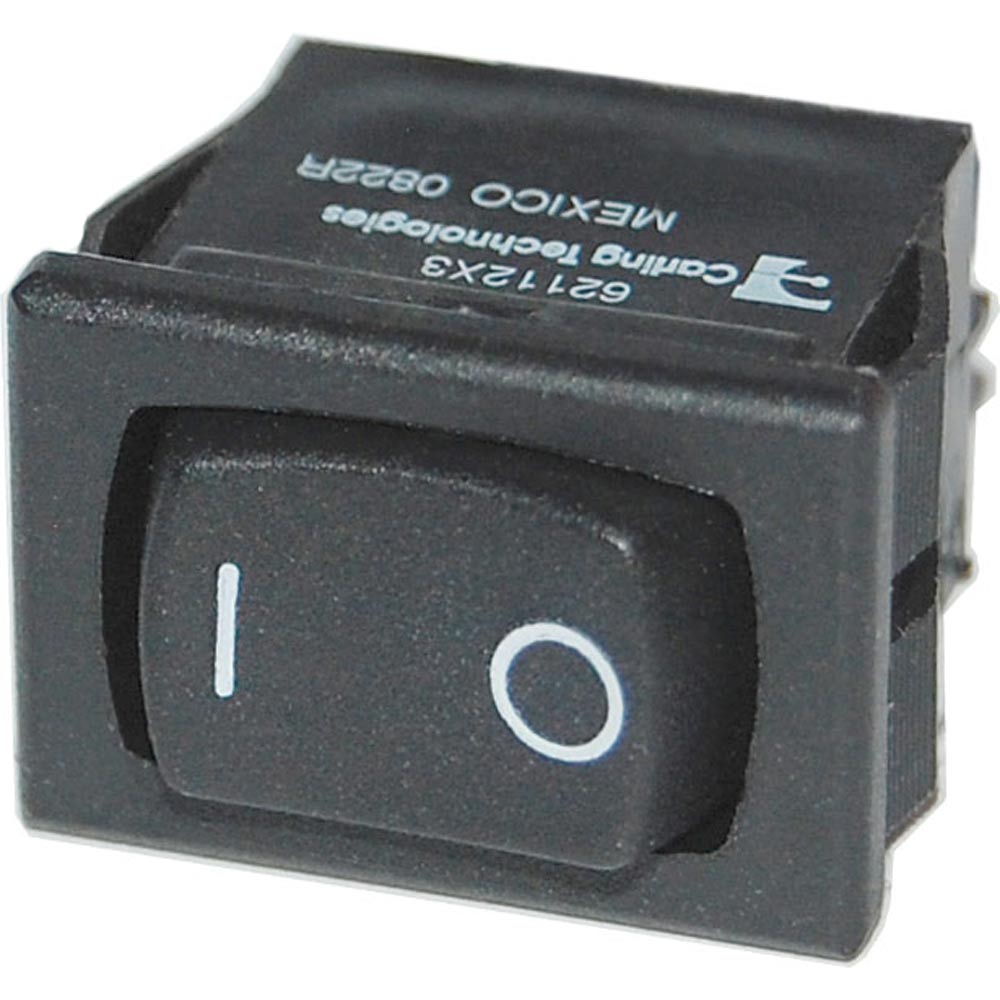

Blue Sea Systems 7485 360 Panel SPDT Rocker Switch - (ON)-OFF-(ON) with Quick Connect Terminals

360 Panel - 7485 Rocker Switch SPDT - (ON)-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF-(ON)

• Pole/Throw**: SPDT

• Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7485 360 Panel System features an innovative open frame design that allows easy mounting of a wide variety of modules, providing exceptional flexibility for complex electrical setups. This system enables users to combine multiple functions into a single panel, making it ideal for applications such as battery management, source selection, and monitoring in marine, RV, or industrial environments. Its versatile design supports rapid assembly and future modifications, ensuring the panel can adapt to evolving project requirements.

The 7485 model is equipped with a SPDT (Single Pole Double Throw) rocker switch that operates with an action of (ON)-OFF-(ON), allowing for straightforward control over connected circuits. The switch's quick connect terminals, measuring 0.187 inches (4.75mm), facilitate secure and reliable wiring connections. With a maximum amperage rating of 8A at 125V AC and 10A at 12V DC, this switch provides robust performance for a range of electrical loads. Its lightweight design, weighing approximately 0.08 lbs (0.04 kg), makes it suitable for applications where space and weight are considerations.

Designed for use in 360 panels within modules such as gauges, DC push buttons, switches, and battery management systems, this switch offers both durability and versatility. The open frame system allows for straightforward integration into existing panels or custom configurations, helping streamline installation and maintenance processes. The switch's construction ensures reliable operation even in demanding environments, making it a dependable choice for critical control functions.

Note that maximum amperage ratings depend on the use of properly rated fuses and wiring, emphasizing the importance of adhering to electrical standards for safety and performance. As with all electrical components, proper installation and use are crucial for optimal operation and safety. This product complies with safety warnings related to chemical exposure, including potential risks from di(2-ethylhexyl)phthalate (DEHP). For detailed safety information, visit the P65Warnings website.

Features:

• Open frame design allows flexible module mounting and future modifications

• SPDT rocker switch with (ON)-OFF-(ON) action for straightforward control

• Quick connect terminals measuring 0.187 inches (4.75mm) for easy wiring

• Maximum amperage of 8A at 125V AC and 10A at 12V DC for reliable operation

• Ideal for use in gauge panels, DC push buttons, switches, and battery management modules
