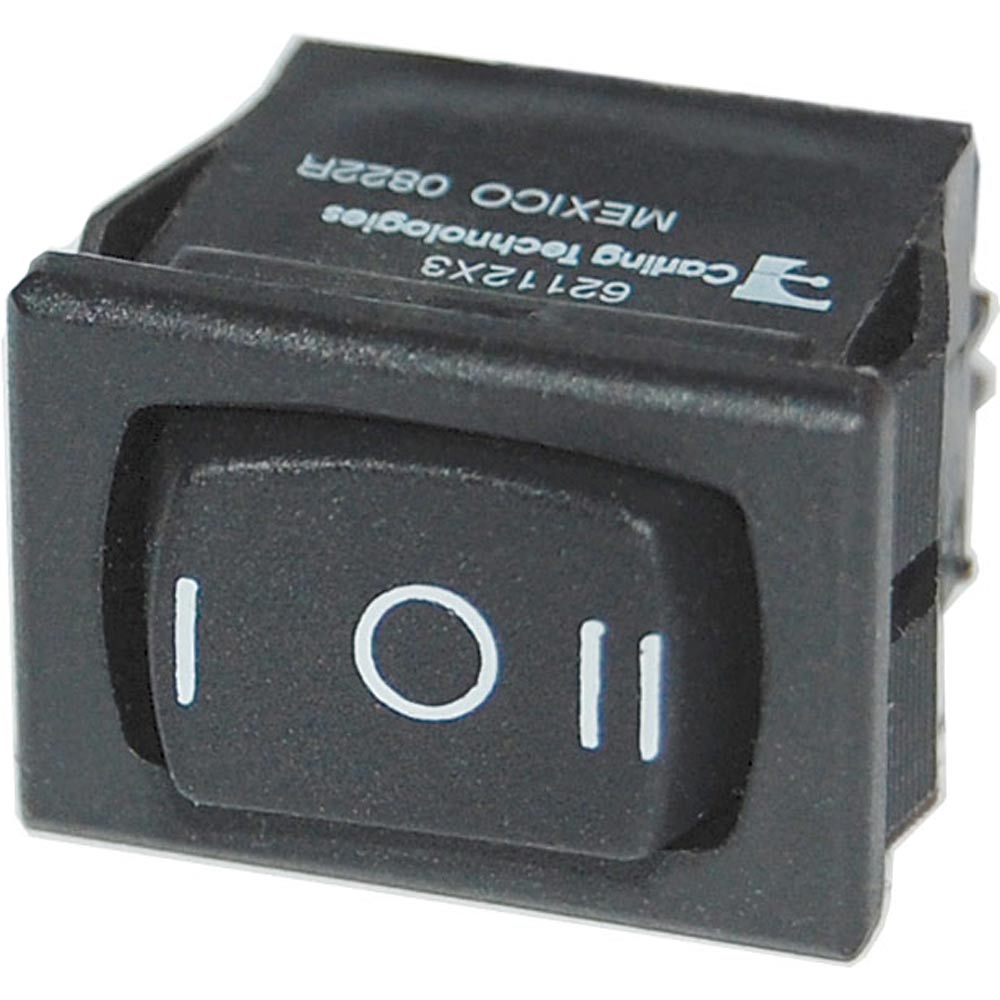

Blue Sea Systems 7495 360 Panel Double Pole Double Throw Rocker Switch (ON)-OFF-(ON)

360 Panel - Rocker Switch DPDT - (ON)-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF-(ON)

• Pole/Throw**: DPDT

• Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC

• Terminal Type: Wire Leads

• Terminal Size: 6.00" (152.4mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7495 360 Panel system is designed for versatile electrical control applications, featuring a robust open frame that accommodates a wide range of modules such as gauges, DC push buttons, switches, and battery management components. Its innovative design allows for quick assembly and easy integration of multiple functions within a single panel, offering significant flexibility for custom electrical setups.

This rocker switch provides a double pole double throw (DPDT) action, enabling users to control two circuits simultaneously with a single switch. The switch's (ON)-OFF-(ON) configuration ensures reliable switching between two states, making it ideal for applications requiring switchable power sources or circuit configurations. The switch features wire leads for straightforward wiring and is rated for up to 8 amps at 125 volts AC and 5 amps at 12 or 24 volts DC, supporting a wide range of load requirements.

Designed with durability in mind, this switch features a compact size that fits seamlessly within the 360 Panel System, ensuring minimal space consumption while maintaining high performance. Its sturdy construction and precise terminal design contribute to long-term reliability, even in demanding environments. The switch's specifications make it suitable for various automotive, marine, and industrial applications where flexible and dependable switching is essential.

Note that maximum amperage ratings depend on the proper use of appropriately rated fuses and wiring, emphasizing the importance of correct installation practices. The product complies with safety standards and includes a warning about potential chemical exposure, such as di(2-ethylhexyl)phthalate (DEHP), known to cause health issues in certain circumstances. For more information, consult the provided safety warnings and guidelines.

Features:

• Open frame design for easy module integration and future upgrades

• Double pole double throw (DPDT) action for switching two circuits simultaneously

• (ON)-OFF-(ON) rocker switch configuration for reliable operation

• Wire lead terminals for straightforward wiring

• Rated for up to 8A at 125V AC and 5A at 12/24V DC for versatile load handling

• Compact size suitable for the Blue Sea 360 Panel System

• Durable construction designed for long-term use in demanding environments

• Supports a range of electrical functions including battery management and source selection
