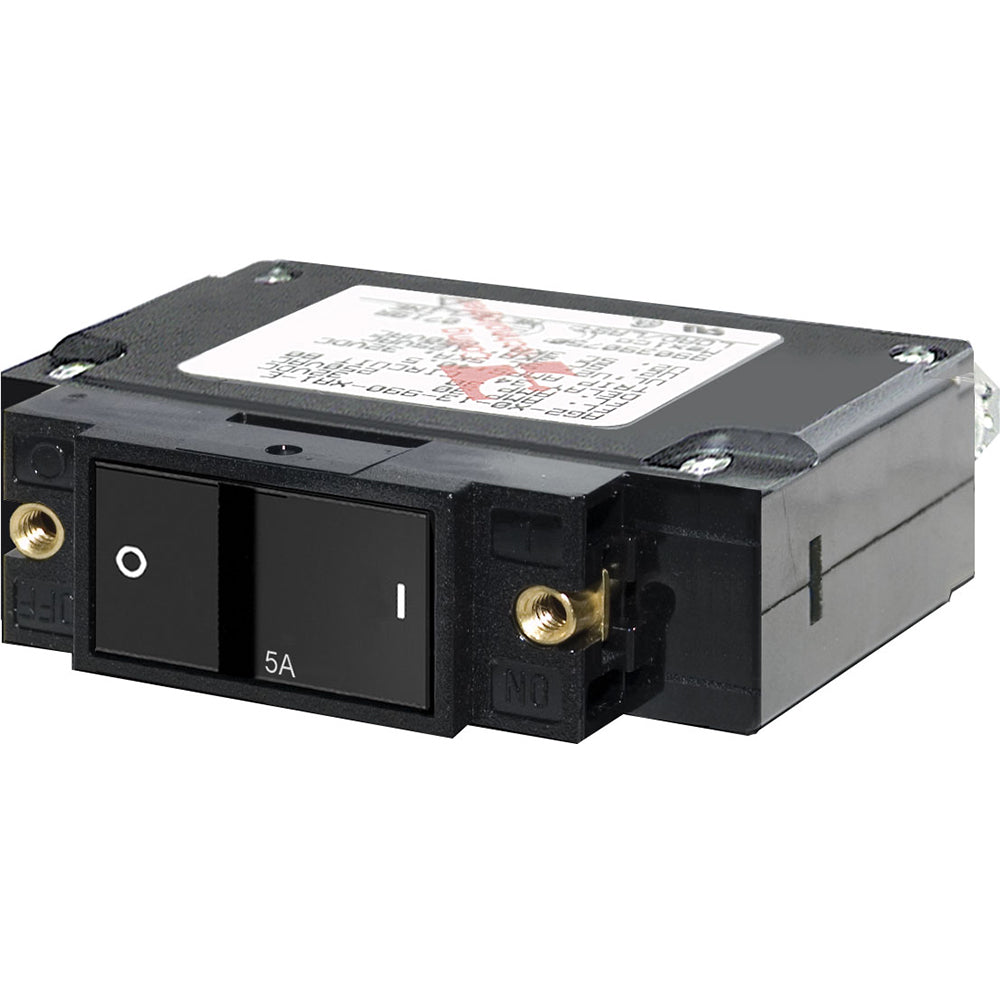

Blue Sea Systems 7540 C-Series Flat Rocker Circuit Breaker - Single Pole 5A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 5A AC / 5A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7540 C-Series Flat Rocker Circuit Breaker is designed for reliable overcurrent protection in marine electrical systems. Its single-pole design makes it suitable for use with inverters, bow thrusters, and windlasses, ensuring your boat's electrical components remain protected from overloads. The rocker actuator is flush in the "ON" position, reducing the risk of accidental switching, while the color-coded actuator clearly indicates the "OFF" position for quick and easy identification. Combining switching and circuit protection into a single device, this breaker simplifies installation and maintenance on your vessel. The "Trip Free" mechanism prevents the breaker from being held closed after a trip, enhancing safety during fault conditions. It is ignition protected, making it safe for installation aboard gasoline-powered boats, and features a magnetic hydraulic trip system for dependable performance under high fault currents.

Features:

• Rocker actuator is flush in the "ON" position, reducing accidental switching risk

• Color-coded actuator indicates "OFF" position for easy identification

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single compact device

• "Trip Free" design prevents the breaker from being held closed after a trip

• Ignition protected, safe for installation aboard gasoline-powered boats

• Magnetic hydraulic trip mechanism for reliable fault interruption

• Durable construction with stainless steel mounting screw and tin-plated brass terminal stud

• High interrupt capacity for handling large fault currents

• Operates effectively across a wide temperature range from -40°C to 85°C
