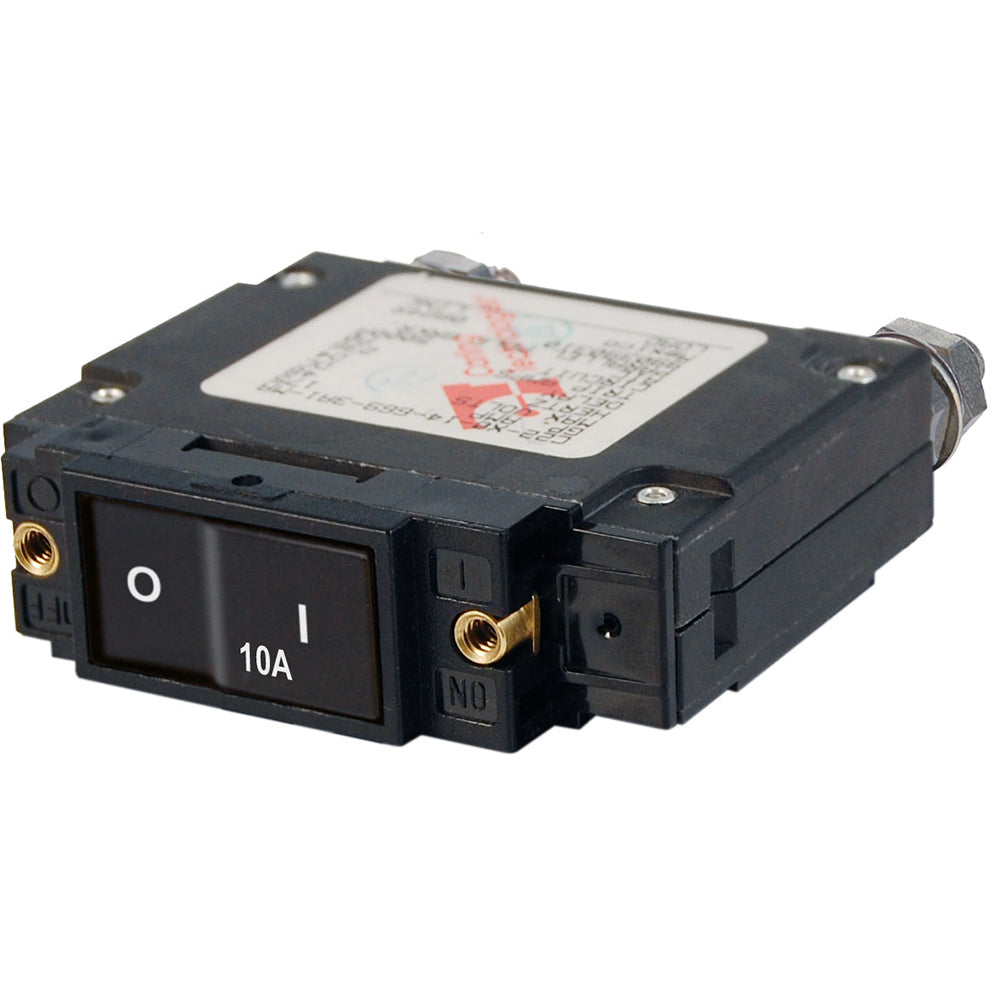

Blue Sea Systems 7541 C-Series Single Pole 10A Flat Rocker Circuit Breaker

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 10A AC / 10A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7541 C-Series flat rocker circuit breaker provides reliable overcurrent protection for your marine electrical systems. Designed for use with inverters, bow thrusters, and windlasses, this single pole breaker combines switching and circuit protection into a compact, easy-to-install device. Its flush-mounted rocker actuator ensures the switch remains securely in the "ON" position, reducing the risk of accidental disconnection, while the red actuator clearly indicates the "OFF" state for quick identification. Suitable for both AC and DC applications, it handles up to 10 amps at 240V AC and 48V DC, making it versatile for a range of marine electrical setups.
Constructed with a magnetic hydraulic, trip-free circuit breaker mechanism, the Blue Sea 7541 prevents the device from being held closed after a trip, ensuring safety and protection during electrical faults. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats, meeting rigorous safety standards. With a terminal stud torque of 35 in-lb, the breaker is built for secure connections, and its robust construction supports up to 10,000 switching cycles, ensuring long-term durability. The breaker is engineered to operate within a temperature range from -40°C to 85°C, allowing it to perform reliably in various marine environments. Its compact weight of just 0.38 pounds makes it suitable for tight installation spaces without adding significant weight.
Note that this product contains chemicals that may cause reproductive harm, in accordance with California's Proposition 65. For detailed safety information, visit P65Warnings.ca.gov. This breaker is a critical component for marine electrical systems, providing peace of mind with its reliable protection and innovative design features.

Features:

• Flush-mounted flat rocker actuator reduces accidental switching

• Red indicator clearly shows the "OFF" position

• Provides overcurrent protection for high-demand marine devices

• Combines switching and circuit protection into one compact device

• "Trip Free" design prevents holding switch closed after trip

• Ignition protected for safe installation on gasoline-powered boats

• Supports both AC and DC applications with 10A capacity

• Durable magnetic hydraulic trip mechanism ensures reliable operation

• Designed for up to 10,000 switching cycles for long-term use

• Constructed with corrosion-resistant materials suitable for marine environments
