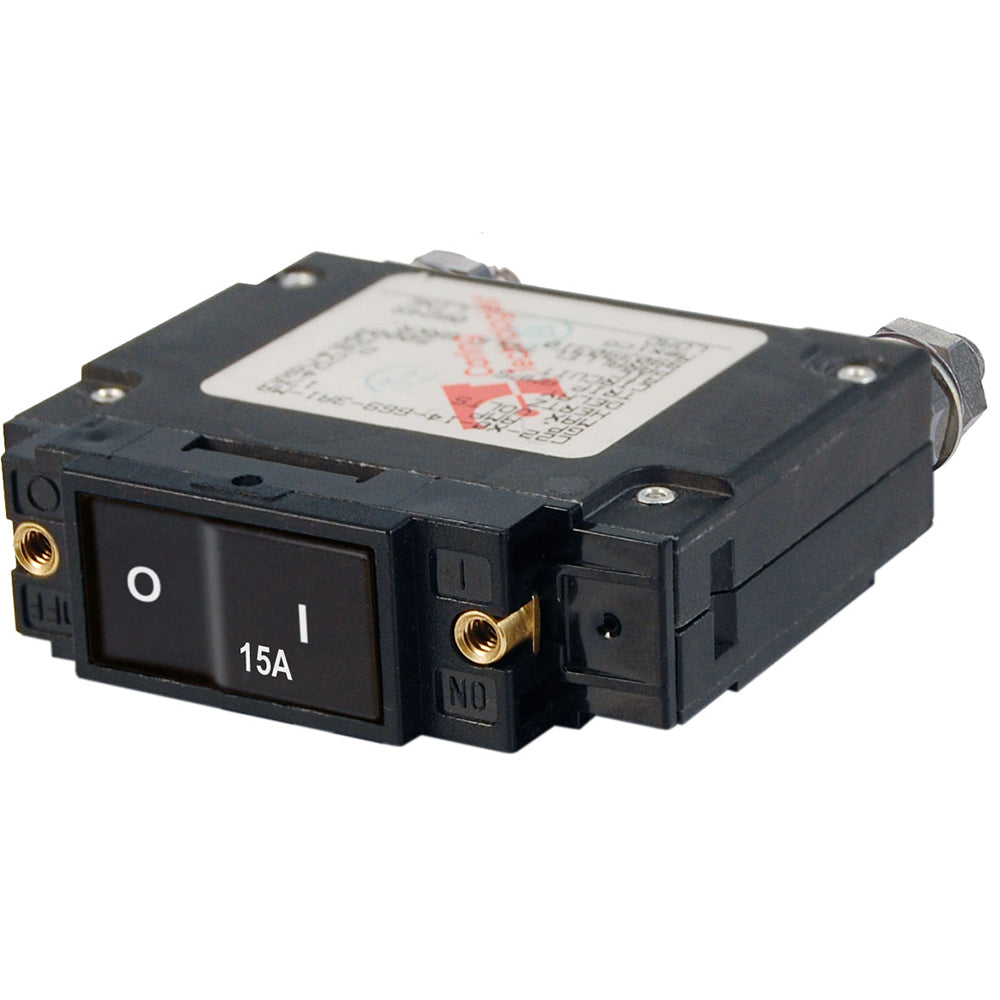

Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker - Single Pole 15A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 15A AC / 15A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker is a reliable and compact solution designed for marine electrical systems. Featuring a flush-mounted rocker actuator, it minimizes the risk of accidental switching by ensuring the switch remains securely in the "ON" position. The color-coded actuator clearly indicates the "OFF" position, providing immediate visual status of the circuit. This circuit breaker is ideal for protecting critical components such as inverters, bow thrusters, and windlasses, combining switching and overcurrent protection into a single, space-efficient device. Its "trip free" design prevents the switch from being held closed after a trip, ensuring safety and proper circuit protection in demanding marine environments. Compatible with both AC and DC systems, it supports up to 240V AC and 48V DC, with a maximum interrupt capacity suitable for high-current loads. The breaker is ignition protected and safe for installation aboard gasoline-powered boats, adhering to strict safety standards. With a robust construction, it features a stainless steel mounting screw and a terminal stud made of tin-plated brass, designed to withstand harsh marine conditions. The breaker is rated for approximately 10,000 switching cycles, ensuring long-term durability and performance in demanding applications. The compact design weighs just 0.38 pounds, making it easy to install in confined spaces while maintaining high reliability. Please be aware that this product contains chemicals such as di(2-ethylhexyl)phthalate (dehp), which are known to cause health risks, and appropriate precautions should be taken during installation and disposal. Overall, the Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker delivers dependable circuit protection with a user-friendly design tailored for marine and RV use.

Features:

• Rocker actuator is flush in the "ON" position, reducing accidental switches

• Color indicator clearly shows "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into one device

• "Trip free" design ensures the breaker cannot be held closed after tripping

• Ignition protected, safe for installation aboard gasoline-powered boats

• Supports both AC and DC systems up to 240V AC / 48V DC

• Durable construction with stainless steel mounting screw and tin-plated brass terminal stud

• Rated for approximately 10,000 switching cycles
