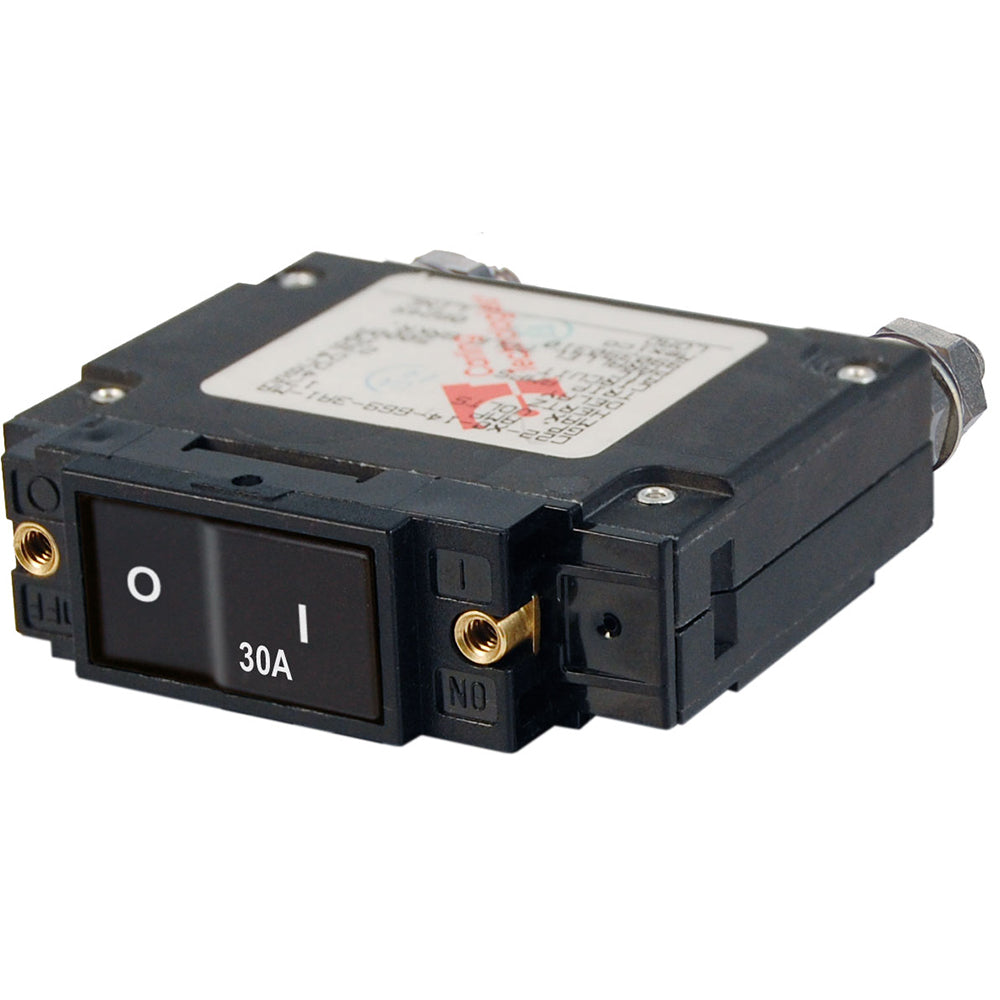

Blue Sea Systems 7545 C-Series Single Pole 30A Flat Rocker Circuit Breaker

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 30A AC / 30A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7545 C-Series Flat Rocker Circuit Breaker provides reliable overcurrent protection for marine applications such as inverters, bow thrusters, and windlasses. Designed with a flush-mounted rocker actuator, the breaker features an innovative "ON" position that eliminates the risk of accidental switching, enhancing safety and operational confidence. The clearly visible red actuator indicates the "OFF" position, allowing quick and easy status recognition. This combination of switching and circuit protection into a single device simplifies installation and maintenance on boats and other marine vessels. Its "trip free" mechanism ensures that once tripped, the breaker cannot be held closed, providing an additional layer of safety during fault conditions. Built with ignition protection, the breaker is safe for installation aboard gasoline-powered boats, meeting stringent marine safety standards. The breaker supports a maximum voltage of 240V AC and 48V DC, with a robust interrupt capacity suitable for demanding marine electrical systems. The magnetic hydraulic trip mechanism ensures quick response to faults, and the device can handle up to 10,000 switching cycles for long-term durability. Its compact design and stainless steel mounting screw facilitate easy installation, while the terminal studs are tin-plated brass for reliable electrical connections. The breaker is rated at 30 amps for both AC and DC circuits, ensuring versatile protection across various systems. Its wide operating temperature range from -40°C to 85°C allows it to perform in harsh marine environments. Overall, the Blue Sea Systems 7545 C-Series circuit breaker offers a dependable, safety-focused solution for marine electrical systems, combining advanced features and durable construction in a compact design.

Features:

• Flush-mounted rocker actuator design to prevent accidental switching

• Red indicator shows when the breaker is in the "OFF" position

• Provides overcurrent protection for various marine electrical devices

• Integrates switching and circuit protection into a single compact unit

• Trip free mechanism ensures breaker cannot be held closed after tripping

• Ignition protected for safe installation aboard gasoline-powered vessels

• Supports up to 240V AC and 48V DC systems

• Magnetic hydraulic trip system for reliable fault response

• High interrupt capacity for demanding electrical environments

• Durable construction with stainless steel mounting hardware
