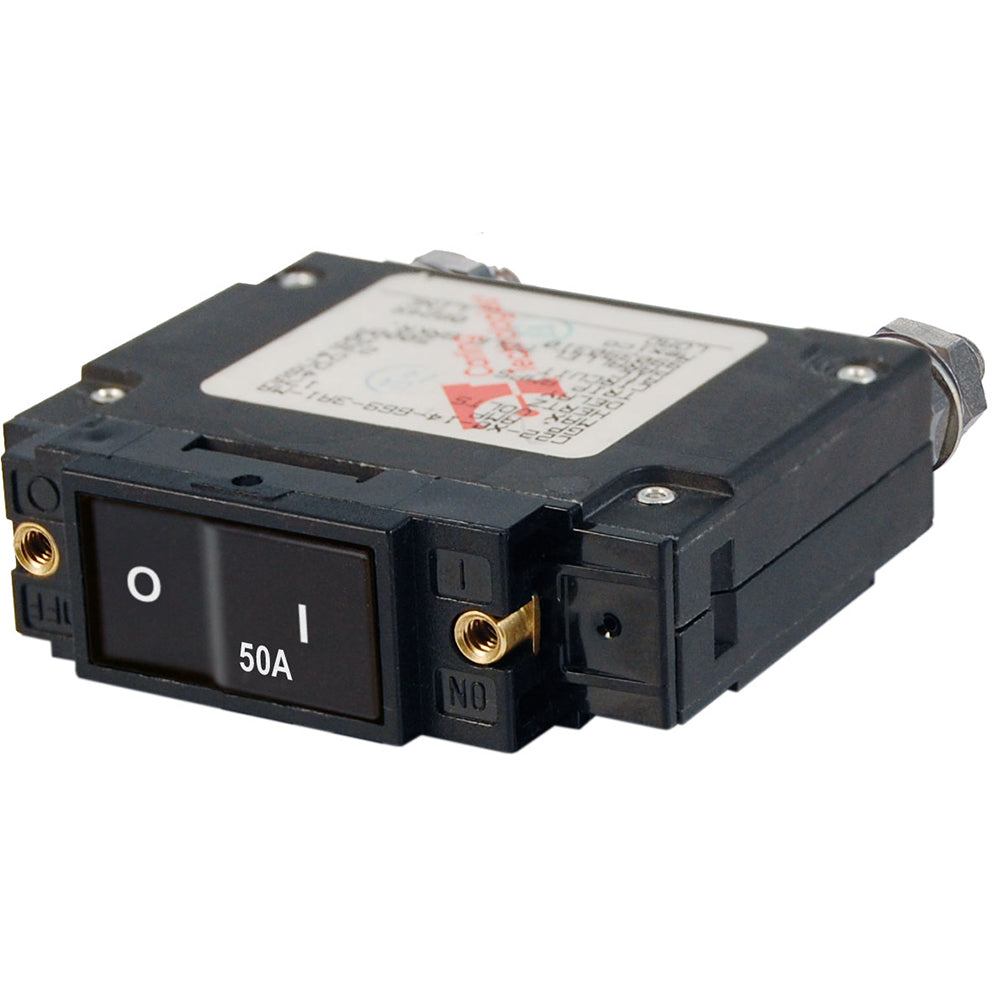

Blue Sea Systems 7546 C-Series Flat Rocker Circuit Breaker - Single Pole 50A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 50A AC / 50A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7546 C-Series Flat Rocker Circuit Breaker provides reliable overcurrent protection for marine electrical systems, including inverters, bow thrusters, and windlasses. Designed with a flush-mounted rocker actuator, it ensures a secure 'ON' position that minimizes accidental switching, while the red-colored actuator clearly indicates the 'OFF' status for easy operation. This combination of switching and circuit protection into a single device simplifies wiring and enhances system safety on boats and other marine vessels. The breaker features a "trip free" mechanism, ensuring it cannot be held closed after a trip, which enhances safety during fault conditions. It is ignition protected and suitable for installation aboard gasoline-powered boats, meeting stringent safety standards for marine environments.

Features:

• Rocker actuator is flush in the 'ON' position, reducing accidental switching risk

• Color-coded actuator indicates 'OFF' position for safety

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Integrates switching and circuit protection into a single compact device

• "Trip Free" feature prevents the breaker from being held closed after tripping

• Ignition protected design ensures safety on gasoline-powered vessels
