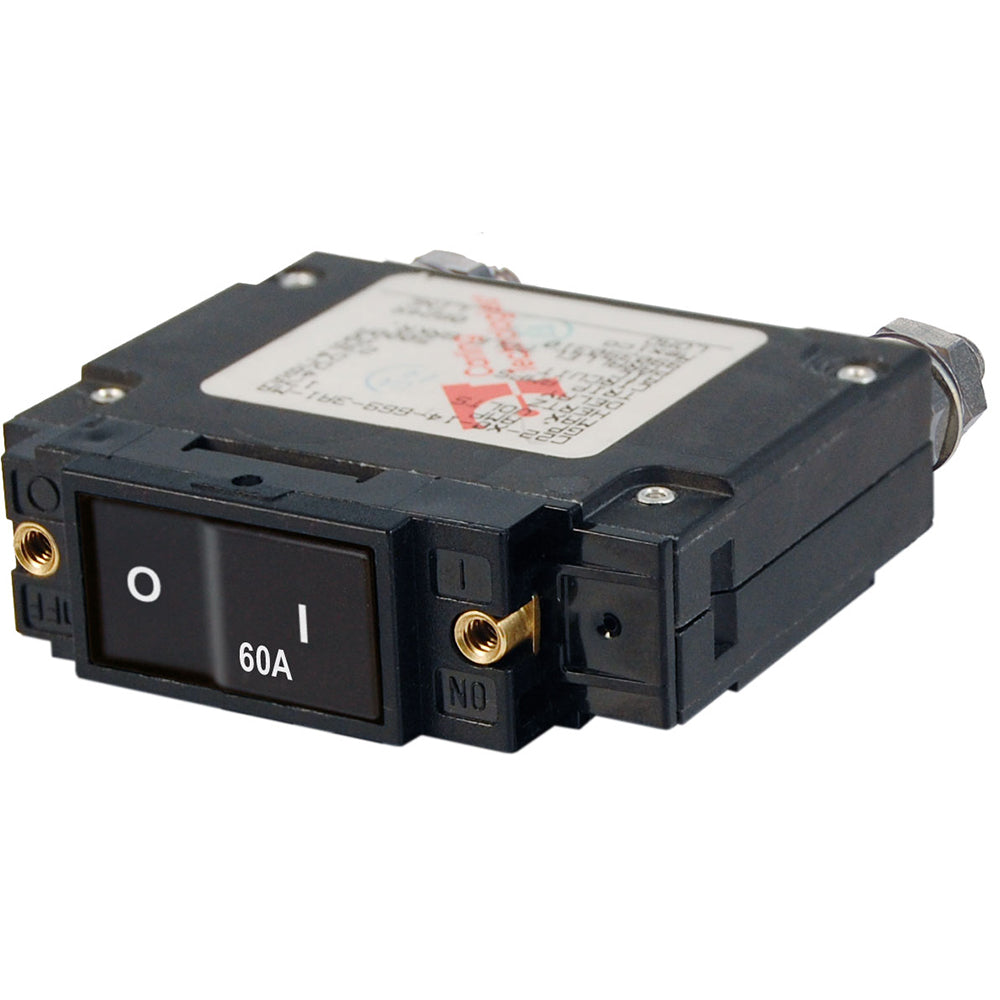

Blue Sea Systems 7547 C-Series Flat Rocker Circuit Breaker - Single Pole 60A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 60A AC / 60A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7547 C-Series Flat Rocker Circuit Breaker provides reliable overcurrent protection for marine electrical systems, including inverters, bow thrusters, and windlasses. Designed with a flush-mounted rocker actuator, it ensures the "ON" position is secure and prevents accidental switching. The clear color indicator highlights the "OFF" position for quick status recognition, enhancing safety during operation. This single-pole circuit breaker combines switching and circuit protection into a compact, integrated device, simplifying wiring and reducing component clutter on your boat.
Constructed with a magnetic hydraulic trip mechanism, the breaker is "trip free"—it cannot be held closed after a trip, ensuring automatic disconnection during faults. Its ignition protection makes it suitable for installation in gasoline-powered boats, meeting safety standards for marine environments. The breaker features a maximum voltage of 240V AC and 48V DC, with a current rating of 60A, providing ample capacity for demanding marine applications. Built to withstand harsh conditions, it operates reliably between -40°C and 85°C, with a switching cycle durability of up to 10,000 cycles for long-term dependability.
Installation is straightforward with stainless steel mounting screws and a terminal stud torque of 35 in-lb. The terminal stud is made of tin-plated brass, rated for high interrupt capacity (up to 5000A at 32V DC), ensuring safe and effective circuit interruption during faults. The compact weight of approximately 0.38 pounds makes it suitable for space-constrained marine panels, while its robust construction ensures durability in challenging environments. Note that this product contains chemicals known to the State of California to cause reproductive harm, and appropriate precautions should be followed during handling and installation.

Features:

• Flush-mounted rocker actuator prevents accidental switching

• Color-coded actuator indicates OFF position for quick recognition

• Provides overcurrent protection for essential marine components

• Combines switching and circuit protection into one device for space efficiency

• "Trip Free" design ensures automatic disconnection after fault trips

• Ignition protected for safe installation aboard gasoline-powered boats

• High interrupt capacity for safe circuit disconnection during faults

• Durable construction suitable for marine environmental conditions
