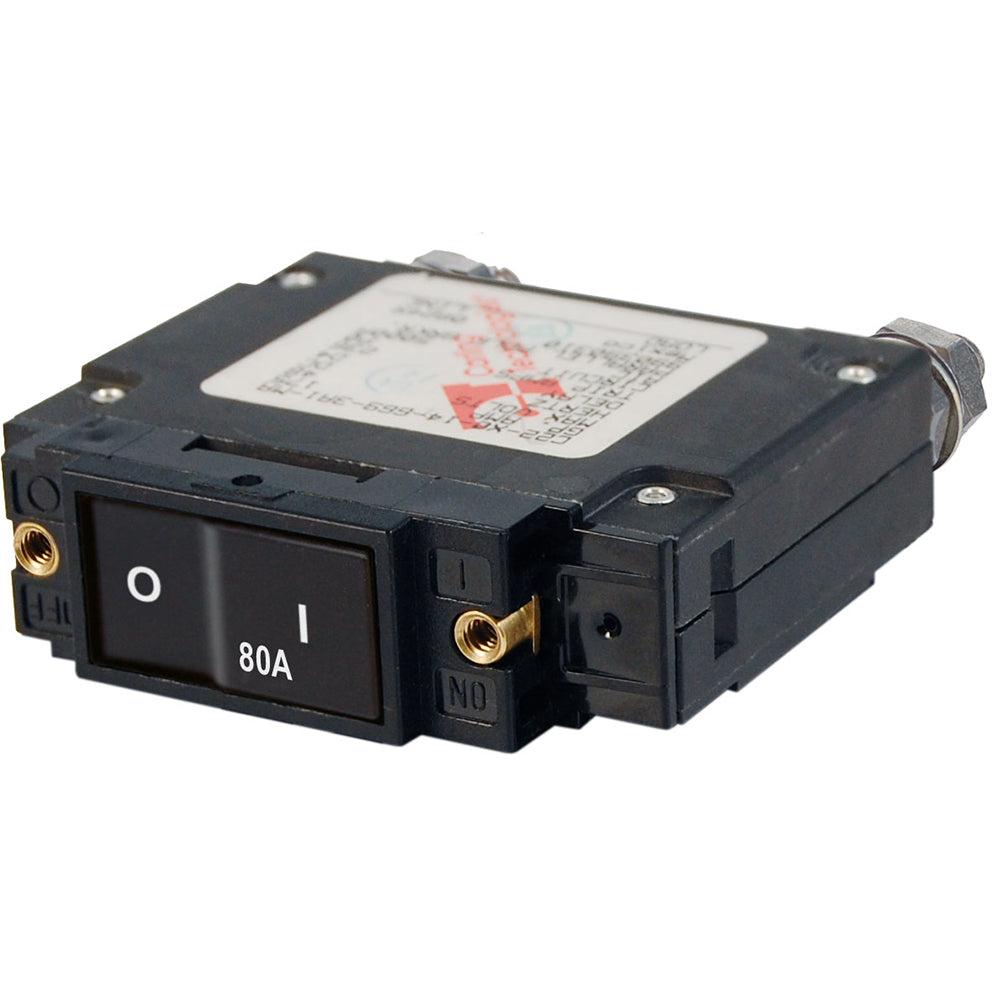

Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker - Single Pole, 80A for Marine and RV Applications

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 80A AC / 80A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker is a reliable single-pole device designed to provide overcurrent protection for marine and RV electrical systems. With an 80A rating, this breaker is suitable for safeguarding inverters, windlasses, bow thrusters, and other critical equipment. The rocker actuator is flush in the "ON" position, reducing accidental switching, while the color-coded indicator clearly displays the "OFF" status for easy monitoring. Combining switching and circuit protection into a single compact unit, it simplifies wiring and enhances safety in tight installation spaces. The breaker is ignition protected, making it safe for installation aboard gasoline-powered boats, and features a trip-free mechanism that prevents the device from being held closed after a trip, ensuring consistent protection during faults.

Features:

• Rocker actuator is flush in the "ON" position to prevent accidental switching

• Color actuator indicates "OFF" position for quick status identification

• Provides overcurrent protection for inverters, windlasses, and bow thrusters

• Combines switching and circuit protection into a single compact device

• "Trip Free" design prevents the breaker from being held closed after tripping

• Ignition protected, suitable for installation on gasoline-powered boats
