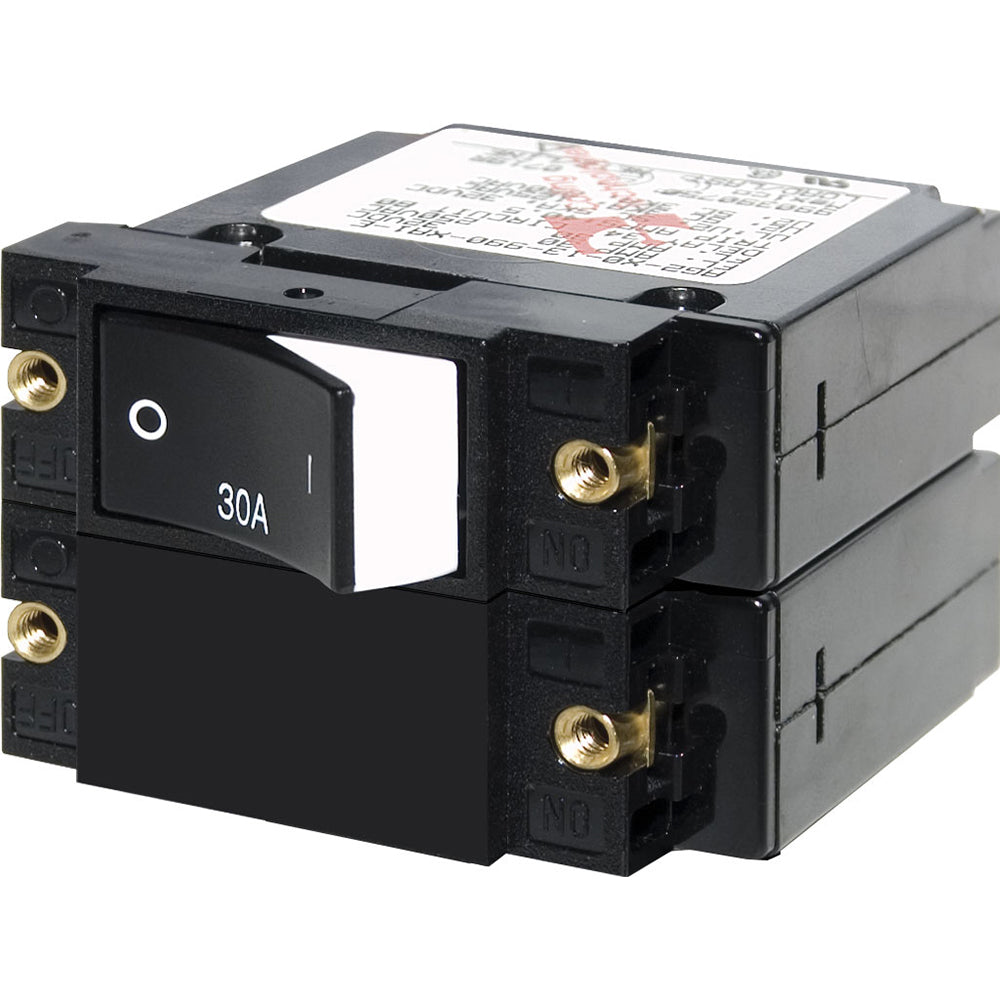

Blue Sea Systems 7574 A-Series Raised Rocker Circuit Breaker - Double Pole 30A

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 30A AC / 30A DC

• Actuator Style: Raised Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7574 A-Series raised rocker circuit breaker offers reliable protection with a sleek design suitable for various electrical applications. Featuring a double pole configuration, this breaker handles up to 30 amps on both AC and DC circuits, providing versatile functionality for residential, commercial, and marine environments. Its raised rocker actuator is easy to operate and includes a color indicator that clearly shows when the breaker is in the "OFF" position, enhancing safety and usability.

This circuit breaker is designed with a "trip free" mechanism, ensuring it cannot be held "ON" during fault conditions, thereby preventing potential electrical hazards. It supports both vertical and horizontal mounting orientations with international ON/OFF symbols, offering flexible installation options. The breaker is rated for a maximum voltage of 120V or 240V AC and 32V DC, with an interrupt capacity of up to 5000A at 32V DC, making it suitable for high-current circuits.

Constructed with durable stainless steel mounting screws and terminal screws, the Blue Sea 7574 ensures secure connections and long-lasting performance. It is rated for approximately 10,000 switching cycles, demonstrating its durability for frequent use. Operating effectively between -40°C and 85°C, it is suitable for a wide range of environmental conditions. The breaker’s compact design weighs just under 0.4 pounds, making it an ideal choice for space-constrained installations. Please note that this product may contain chemicals known to cause reproductive harm, and proper handling is advised. For detailed safety information, visit P65Warnings.ca.gov.

Whether for marine, industrial, or residential electrical systems, the Blue Sea Systems 7574 A-Series double pole circuit breaker combines safety, durability, and ease of use in a compact package that meets international standards for circuit protection.

Features:

• Color actuator indicates "OFF" position

• "Trip free" design prevents holding "ON" during faults

• Supports vertical or horizontal mounting with international ON/OFF symbols

• Handles up to 30 amps on AC and DC circuits

• Durable stainless steel mounting and terminal screws

• Rated for high interrupt capacity up to 5000A at 32V DC

• Operates reliably in temperatures from -40°C to 85°C

• Rated for approximately 10,000 switching cycles
