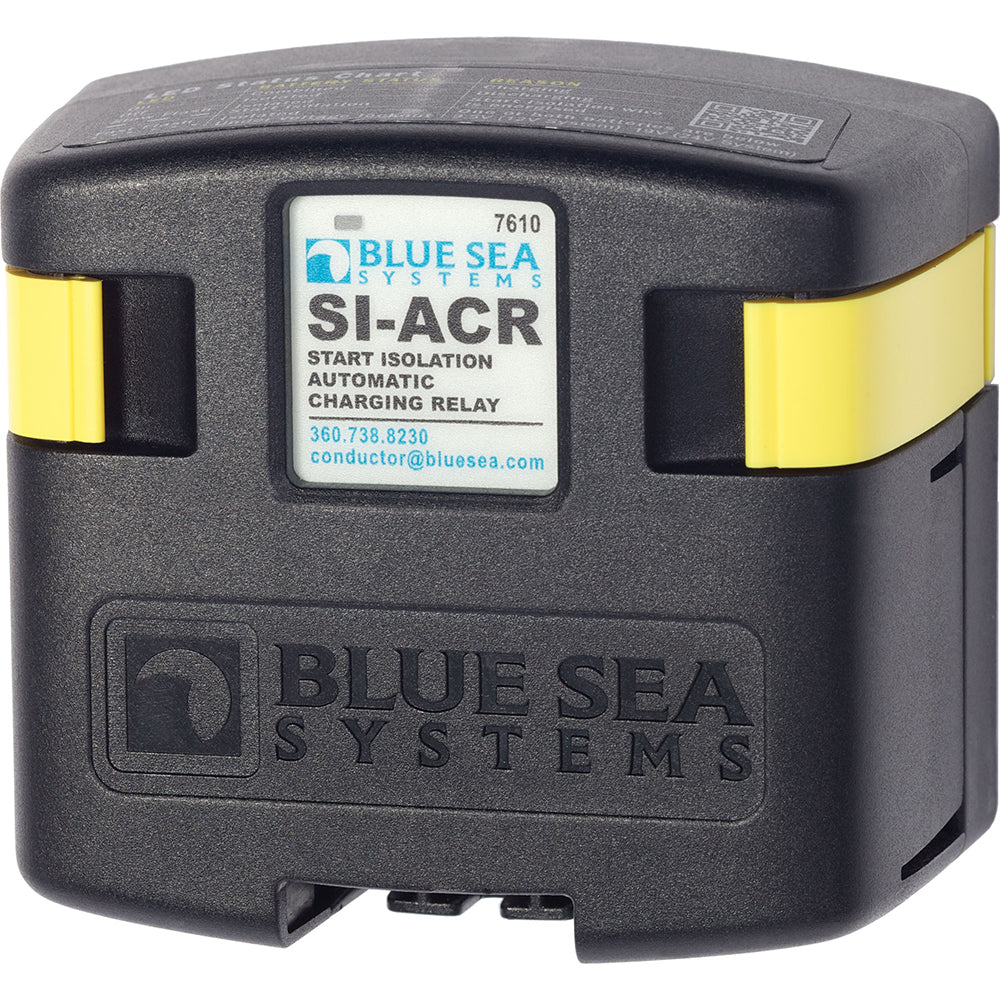

Blue Sea Systems 7610 120 Amp SI-Series Automatic Charging Relay for Marine and Automotive Applications

• Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics
• Automatically combines battery banks during the charging cycle and isolates under discharge
• 12/24 Volt auto ranging voltage input
• Waterproof rated IP67 - temporary immersion for 30 minutes
• Ignition protected - safe for installation aboard gasoline powered boats
• Remote LED output indicates relay state away from ACR
• LED light indicates when batteries are combined
• LED blinks in undervoltage lockout and starting lockout
• Supports high-output alternators up to 120 Amperes
• Included with the ADD A BATTERY Dual Circuit System
• Automatically combines battery banks during the charging cycle and isolates under discharge
• Ignition protected - safe for installation aboard gasoline-powered boats
• Activates from any charging source - alternators, battery chargers, or solar panels
• Hermetically sealed contacts / vaporproof
• Side and bottom knockouts for power cable connections

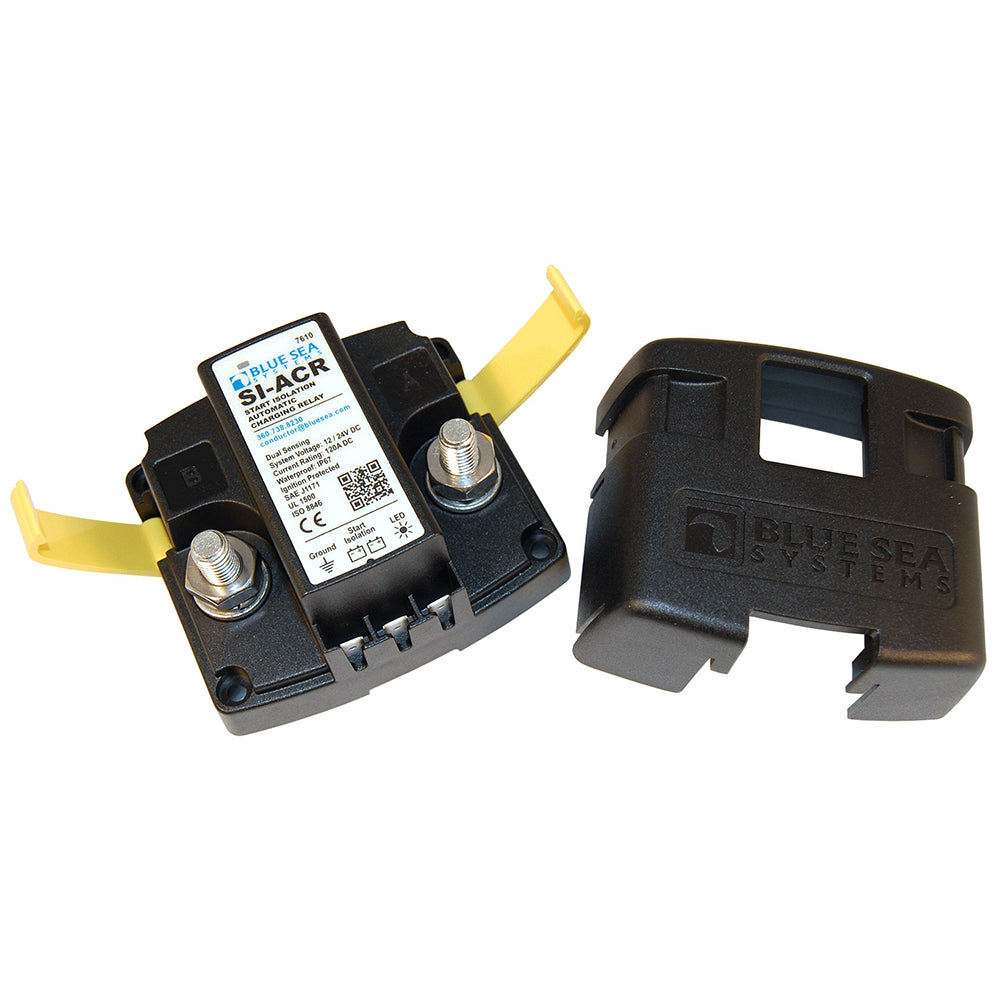

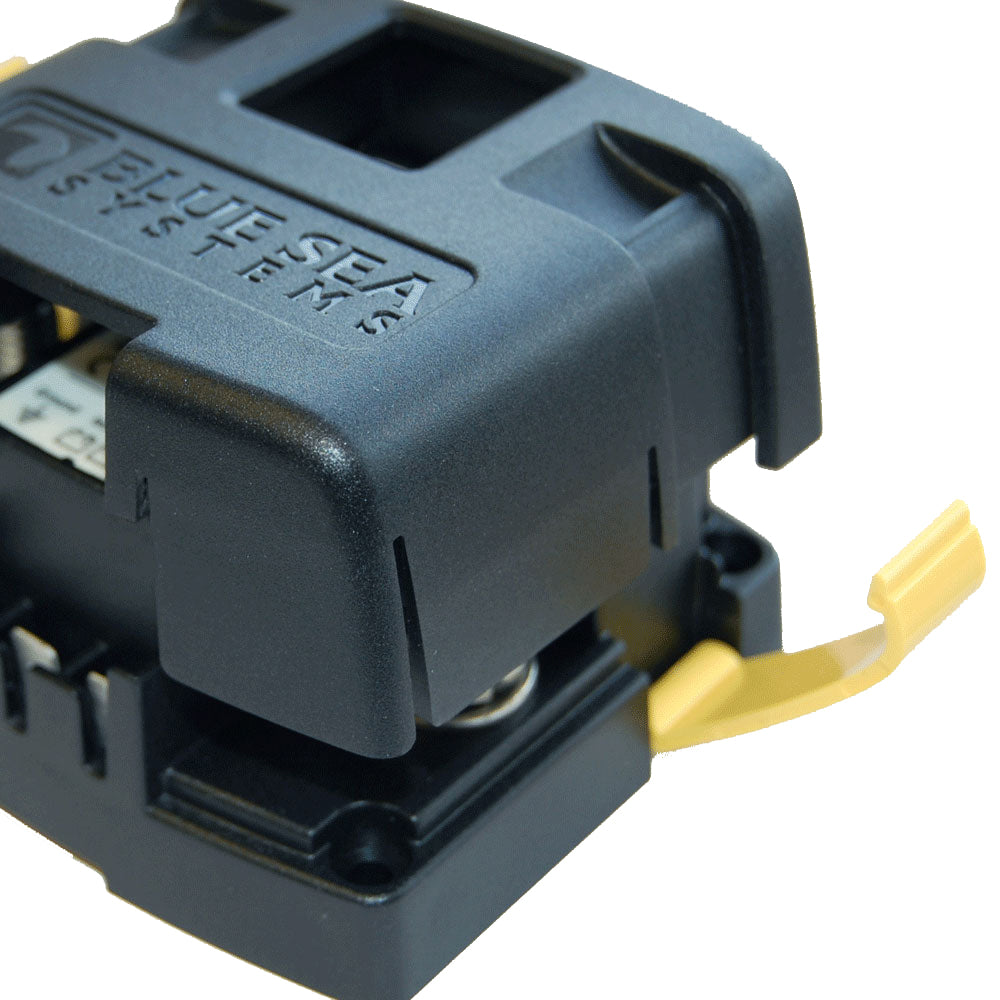

• Clip-on cover protects and insulates terminal connections

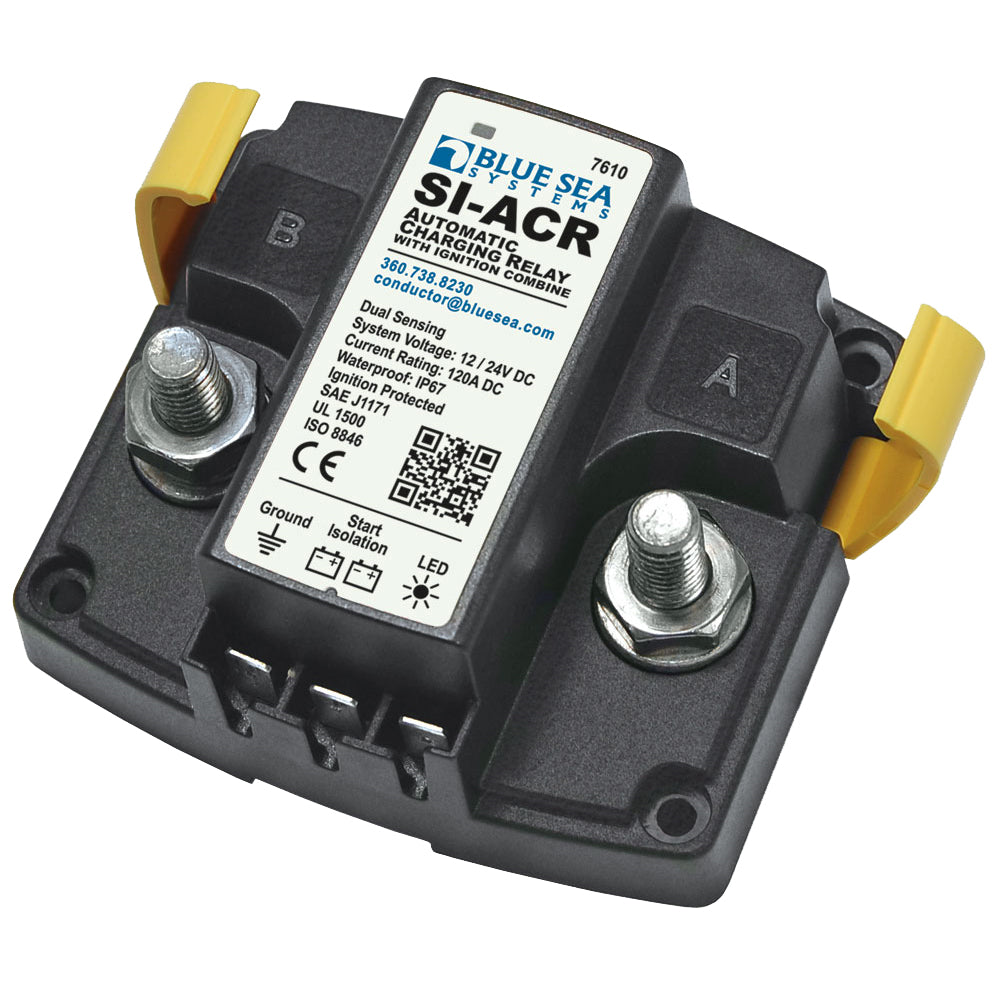

• Tin-plated copper studs for maximum corrosion resistance
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• 1/4" x 0.031" male quick connect terminals for ground and remote LED and starting interrupt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7610 120 Amp SI-Series Automatic Charging Relay is a reliable solution designed to optimize battery management in marine and automotive environments. Crafted to automatically manage multiple battery banks, this relay ensures efficient charging and discharging cycles, helping to extend battery life and improve system performance. Its robust construction and versatile features make it suitable for use with various power sources, including alternators, solar panels, and battery chargers, providing seamless integration into your electrical system. The relay's design includes hermetically sealed vaporproof contacts, ensuring durability and corrosion resistance even in harsh conditions.
Equipped with a 12/24 Volt auto-ranging voltage input, the Blue Sea 7610 automatically adjusts to your system voltage, simplifying installation and operation. Its waterproof rating of IP67 allows for temporary immersion, making it ideal for marine environments where exposure to water is common. The relay is ignition protected, ensuring safe installation aboard gasoline-powered boats without risking ignition hazards. The included ADD A BATTERY Dual Circuit System enhances battery management by supporting the automatic combining and isolating of batteries during charge and discharge cycles, promoting optimal battery performance.
The relay features a remote LED indicator that displays the relay state away from the main unit, providing clear status updates. Additional LEDs indicate when batteries are combined, and blinking lights warn of undervoltage or starting lockout conditions. Supporting high-output alternators up to 120 amperes, the relay is suitable for demanding power needs. Its design incorporates side and bottom knockouts for flexible power cable connections, a clip-on cover for terminal protection, and tin-plated copper studs for maximum corrosion resistance. With a stud length of 7/8 inch (22.22 mm), it accommodates multiple cable terminals for secure wiring. Quick connect terminals for ground, remote LED, and starting interrupt enable easy installation and maintenance.
Overall, the Blue Sea Systems 7610 relay offers a combination of advanced features, durability, and safety, making it an essential component for reliable battery management in marine and automotive electrical systems. For detailed installation instructions, refer to the owner’s manual available online at the provided link.

Features:

• Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics

• Automatically combines battery banks during the charging cycle and isolates under discharge

• Supports 12/24 Volt auto-ranging voltage input for versatile system compatibility

• Waterproof rated IP67, suitable for temporary immersion up to 30 minutes

• Ignition protected, safe for installation aboard gasoline-powered boats

• Remote LED output indicates relay state away from ACR for easy monitoring

• LED indicator shows when batteries are combined, with blinking alerts for undervoltage and starting lockout

• Supports high-output alternators up to 120 Amperes for demanding power systems

• Includes with the ADD A BATTERY Dual Circuit System for enhanced battery management

• Hermetically sealed vaporproof contacts for durability in harsh environments

• Flexible wiring with side and bottom knockouts for power cable connections

• Clip-on cover protects and insulates terminal connections

• Tin-plated copper studs offer maximum corrosion resistance and secure connections

• Stud length of 7/8 inch (22.22 mm) accommodates multiple cable terminals

• Quick connect terminals for ground, remote LED, and starting interrupt facilitate easy wiring
