Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
Includes ML-Series Remote Control Contura Switch PN 2146
500 Ampere continuous rating
Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
Supports high-output alternators up to 500 Amps
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
Silver alloy contacts provide high reliability for switching live loads
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

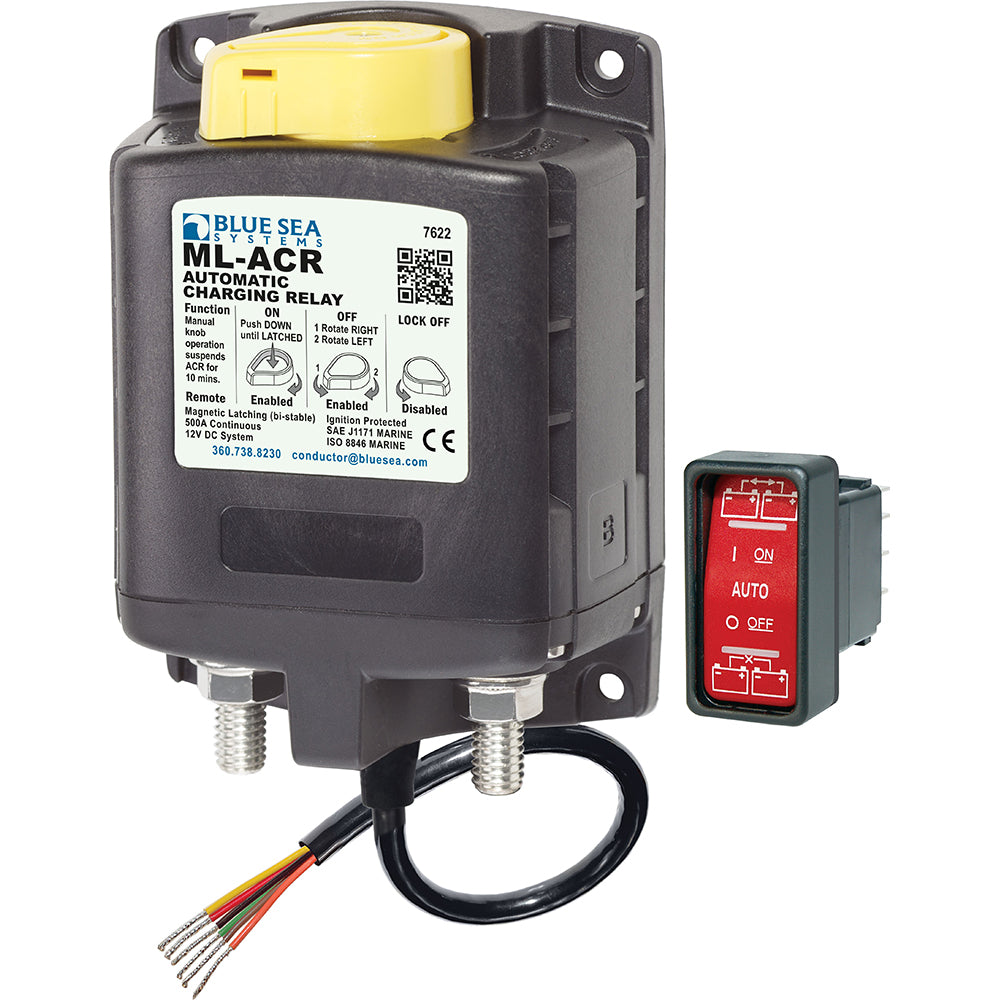

The Blue Sea Systems 7622 ML-Series Heavy Duty Automatic Charging Relay is engineered for reliable power management in demanding electrical systems. Featuring a manual control switch, this relay offers an added layer of safety by allowing manual operation with or without power and includes a "Locked Off" feature for safe servicing. It is designed to handle continuous currents up to 500 amperes, making it suitable for high-output alternators and heavy-duty applications. The relay incorporates a magnetic latch (ML) with low current draw in both the "ON" and "OFF" states, ensuring efficient operation and minimal power consumption. It also supports multiple configurations such as start isolation, engine isolation, and sensing of charging on two battery banks, providing versatile solutions for complex electrical setups. The relay's robust construction features 3/8"-16 tin-plated copper studs for optimal conductivity and corrosion resistance, along with label recesses for circuit protection. Silver alloy contacts ensure high reliability when switching live loads, making this relay a dependable choice for marine, RV, or utility vehicle applications. An LED indicator allows remote status monitoring, including battery connection, isolation states, and voltage lockout, enhancing system visibility and safety. The relay's compact design and durable materials make it ideal for integrating into existing electrical systems, ensuring long-lasting performance and peace of mind. For detailed installation instructions and operation guidelines, refer to the included owner’s manual available online.
Features:
Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
Includes ML-Series Remote Control Contura Switch PN 2146
Supports continuous current of up to 500 Amperes, suitable for high-output alternators
Magnetic Latch (ML) design draws very low current (<10 mA) in "ON" or "OFF" states and moderate current during state change
Configurable for start isolation during engine cranking to protect sensitive electronics
