Blue Sea Systems 7700100 12V 500A ML Solenoid with Manual Control and Deutsch Connector

7700100 ML Solenoid 12V 500A with Manual Control Deutsch Connector

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features:

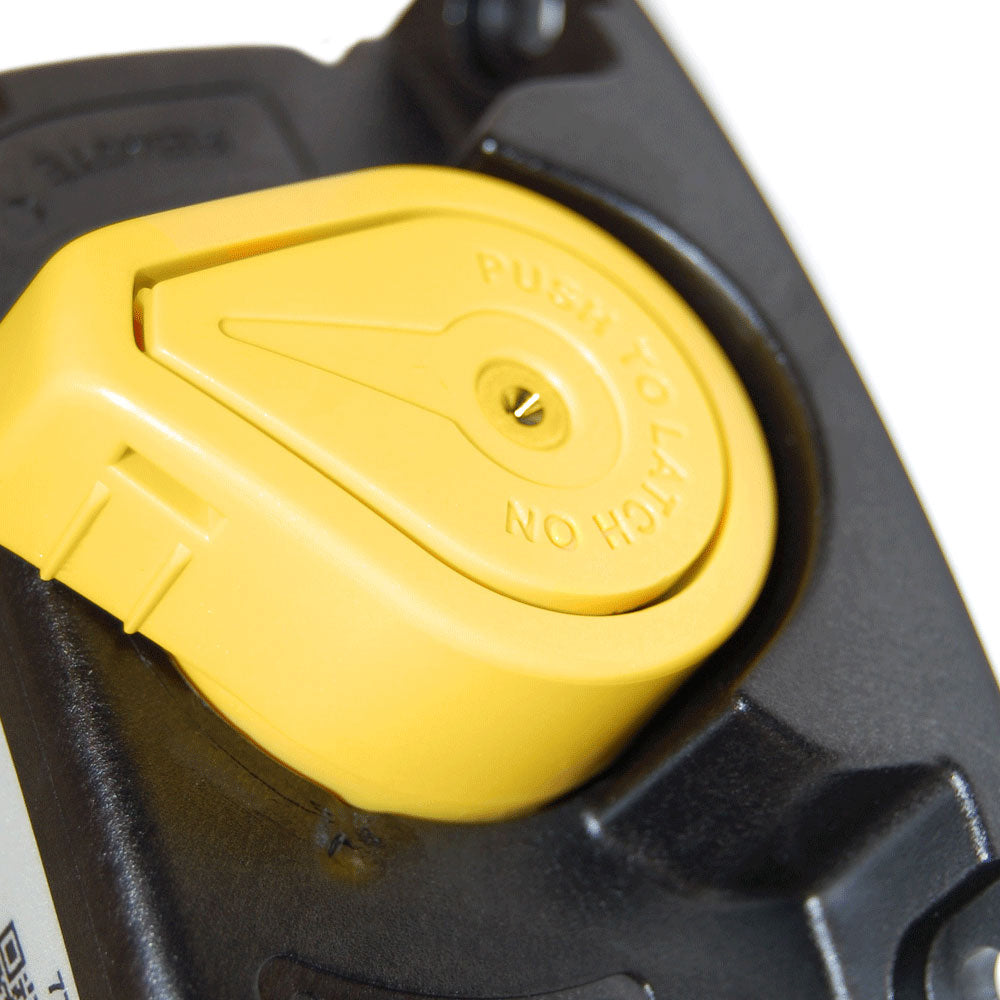

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0mA
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 Seconds: 1450A DC
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A@12VDC
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

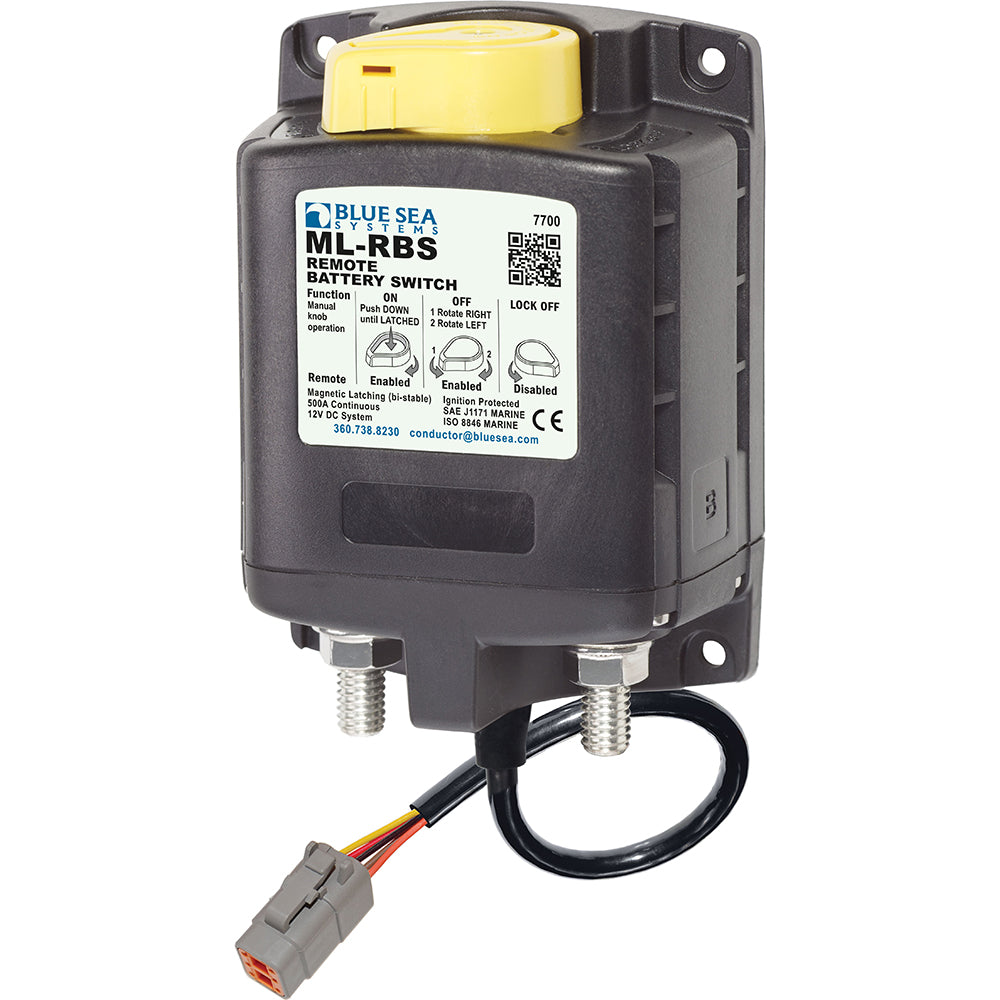

The Blue Sea Systems 7700100 ML Solenoid is a high-current magnetic latching switch designed for demanding electrical applications. It handles continuous loads of up to 500 amps and intermittent peaks of 700 amps for 5 minutes, making it suitable for heavy-duty switching tasks in automotive, marine, and industrial environments. This solenoid features a manual override knob that allows operators to control power independently of the electrical system, providing an added layer of safety and serviceability. The manual control also includes a LOCKED OFF position, ensuring safety during maintenance or emergencies.
Constructed with high-quality materials, the solenoid utilizes silver alloy contacts that ensure reliable switching of live loads, even in harsh conditions. The device is equipped with 3/8"-16 tin-plated copper studs for superior conductivity and corrosion resistance, supporting multiple cable connections. Its 7/8" (22 mm) stud length accommodates various cable sizes, while label recesses facilitate circuit identification for organized wiring. An LED indicator (optional) can be connected to remotely display the switch's operational state, providing quick status updates at a glance.
Designed for easy mounting, the solenoid uses a #10 mounting hole and features a control circuit connection compatible with Deutsch DTM connectors. The coil operates on 12VDC with a bi-stable function, enabling reliable switching with minimal power draw. Mechanical endurance testing indicates the switch can operate over 100,000 cycles, ensuring longevity and consistent performance. With a weight of approximately 1.75 pounds, it is compact yet robust enough for various high-current switching applications.
Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks. Refer to P65Warnings.ca.gov for detailed safety information. Whether used in automotive, marine, or industrial settings, the Blue Sea Systems 7700100 ML Solenoid offers dependable, high-capacity switching with manual override features for enhanced safety and control.

Features:

• Manual override knob provides safety control with or without power, including LOCKED OFF position for servicing

• LED output (optional) remotely indicates switch state for quick status assessment

• 3/8"-16 tin-plated copper studs ensure maximum conductivity and corrosion resistance

• 7/8" stud length supports multiple cable terminals for flexible wiring

• Label recesses for easy circuit identification during installation

• Silver alloy contacts deliver high reliability for switching live loads

• Control circuit connection compatible with Deutsch DTM connectors

• Bi-stable coil function minimizes power consumption while maintaining switch state

• Designed for 12VDC systems with continuous rating of 500A and intermittent peak of 700A

• Built for durability with over 100,000 mechanical cycles of operation
