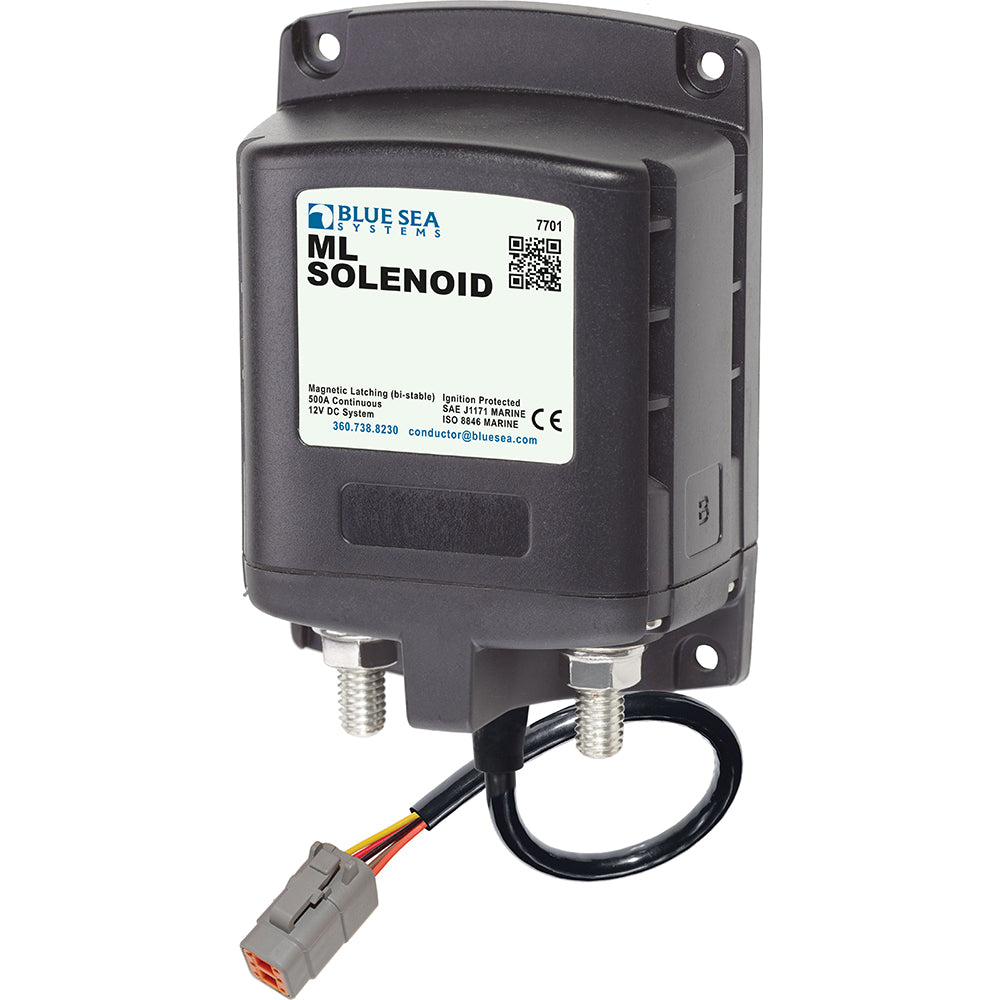

Blue Sea Systems 7701100 ML Solenoid 12V 500A with Deutsch Connector for Heavy-Duty Load Switching

7701100 ML Solenoid 12V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Manual Control: No
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0A
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cable Size to Meet Ratings: 2x (4/0)
• Stud Material: Tinned Copper
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7701100 ML Solenoid is a high-current magnetic latching (bi-stable) switch designed for demanding electrical applications where manual control is unnecessary. With a continuous rating of 500 amps, this solenoid is suitable for switching heavy loads such as engine systems, inverters, house loads, and emergency battery setups. Its bi-stable coil consumes power only during state changes, ensuring energy efficiency and reduced heat generation. Constructed with silver alloy contacts, the solenoid provides high reliability and consistent performance when switching live loads, even under demanding conditions. The 3/8" -16 tin-plated copper studs ensure maximum conductivity and resistance to corrosion, while the 7/8" (22mm) stud length accommodates multiple cable terminals for flexible wiring options. Designed for ease of installation, it features label recesses for circuit identification, making maintenance and troubleshooting more straightforward.

This solenoid connects via a Deutsch DTM control circuit and is operated at 12V DC, with no manual control required. It features a Tinned Copper terminal stud material, with a torque rating of 140 in-lb (15.82 Nm) to ensure secure connections. The device can handle an intermittent load of up to 700 amps for five minutes, making it suitable for high transient load conditions. The mounting utilizes #10 hardware, and the device's weight is approximately 1.75 pounds. The included remote control Contura switch is sold separately or as part of the retail package, providing flexible operation options. Built for reliability and durability, this solenoid is ideal for professional installations requiring robust switching capabilities and energy efficiency.

Please note that this product may contain chemicals known to cause reproductive harm under California law. For more details, visit P65Warnings.ca.gov.

Features:

• 500 Ampere continuous rating suitable for demanding electrical loads

• Magnetic latching (bi-stable) design draws no current in 'ON' or 'OFF' state, only during switching

• Silver alloy contacts for high reliability and long-lasting performance

• 3/8" -16 tin-plated copper studs for optimal conductivity and corrosion resistance

• Stud length of 7/8" (22mm) fits multiple cable terminals

• Label recesses for easy circuit identification

• Control connection via Deutsch DTM connector for secure wiring

• Designed for 12V DC operation with no manual control required

• Intermittent load capacity of 700 amps for up to 5 minutes

• Mounting compatible with #10 hardware for straightforward installation
