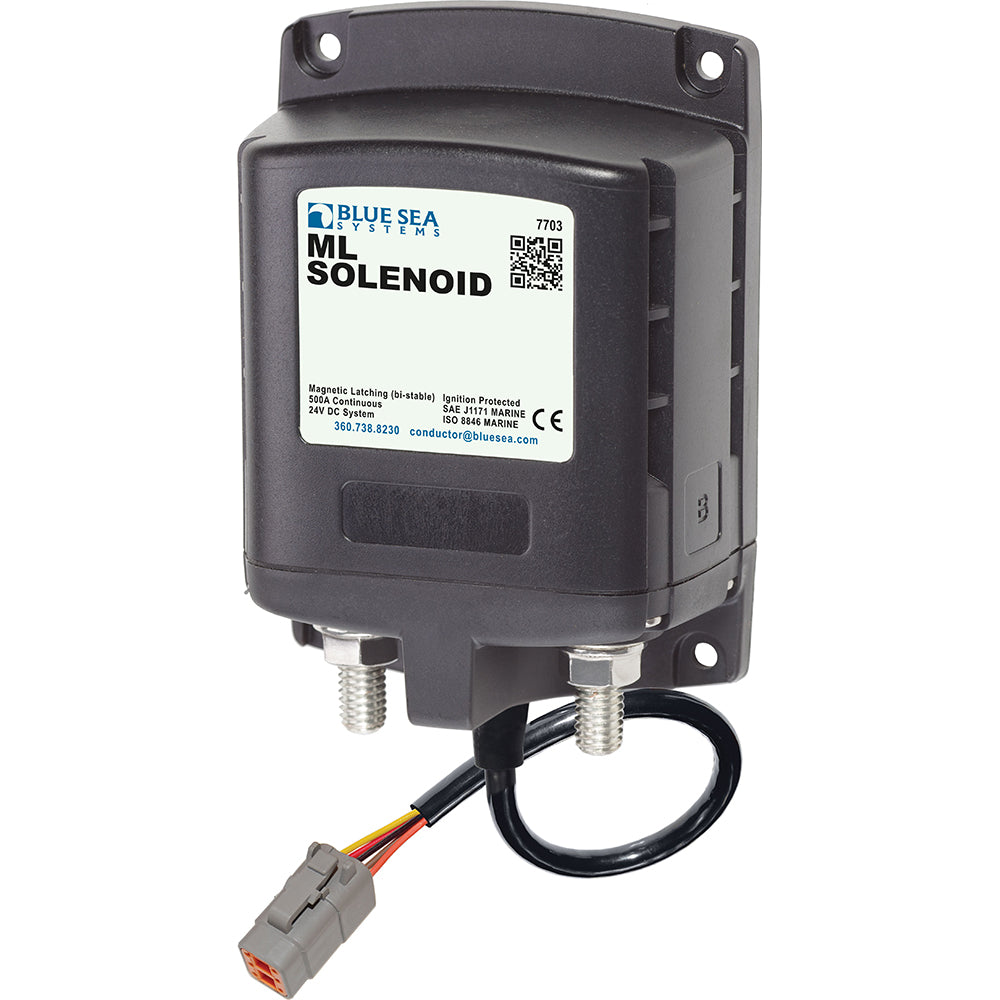

Blue Sea Systems 7703100 ML Solenoid 24V 500A with Deutsch Connector

7703100 ML Solenoid 24V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Manual Control: No
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0A
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cable Size to Meet Ratings: 2x (4/0)
• Stud Material: Tinned Copper
• Switching Cycles: 100000
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7703100 ML Solenoid is a high-capacity, 24-volt magnetic latching switch designed for demanding electrical applications. With a continuous rating of 500 amps, it is suitable for controlling engine loads, inverter systems, house power, and emergency battery configurations without manual intervention. Its bi-stable coil design ensures it consumes power only during state changes, making it energy-efficient and ideal for remote or automated systems. The solenoid features durable silver alloy contacts for reliable switching of live loads and robust 3/8-inch (10 mm) tin-plated copper studs for superior conductivity and corrosion resistance. The 7/8-inch (22 mm) stud length accommodates multiple cable terminals, facilitating versatile wiring setups. It includes label recesses for easy circuit identification and a control circuit connection compatible with Deutsch DTM connectors, simplifying integration into existing systems. The device's mounting is designed for #10 hardware, and its high switching cycle count of 100,000 ensures longevity in continuous use environments. This solenoid's compact weight of approximately 1.75 pounds makes it suitable for installation in space-constrained applications. The included remote control Contura switch offers convenient operation, or it can be purchased separately for OEM customization. Rated for continuous operation at 12VDC, it handles intermittent loads up to 700A for short durations, providing reliable performance during peak demand scenarios. This product is engineered for heavy-duty electrical switching, combining safety, efficiency, and durability for professional vehicle, marine, or industrial use. Please note, the product may contain chemicals known to cause health risks in certain regions, and proper handling is advised.

Features:

• 500 Amp continuous rating for engine, inverter, house loads, and emergency battery combine

• Magnetic latching coil draws no current when in 'ON' or 'OFF' state, only during switching

• Silver alloy contacts provide high reliability for live load switching

• 3/8-inch (10 mm) tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8-inch (22 mm) stud length accommodates multiple cable terminals

• Label recesses facilitate circuit identification

• Includes remote control Contura switch for convenient operation
