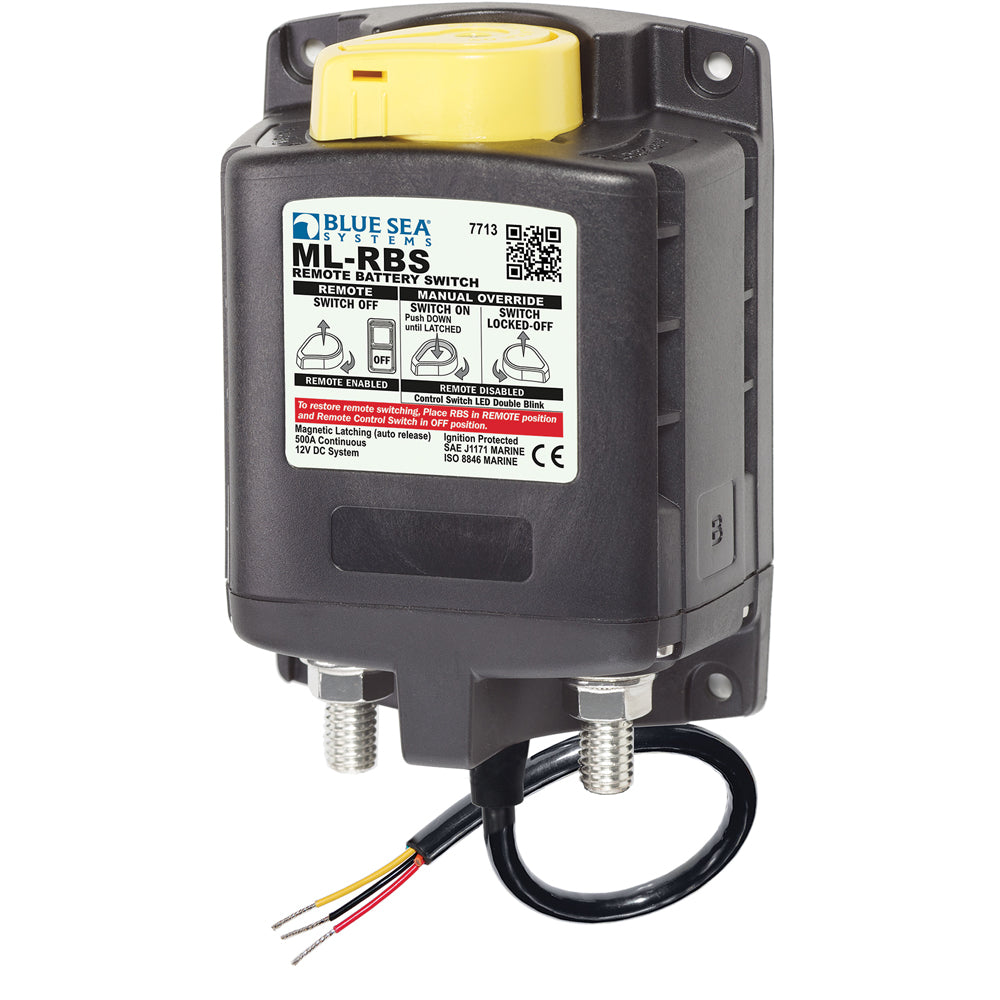

Blue Sea Systems 7713 ML-RBS Remote Battery Switch with Manual Control and Auto-Release - 12V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

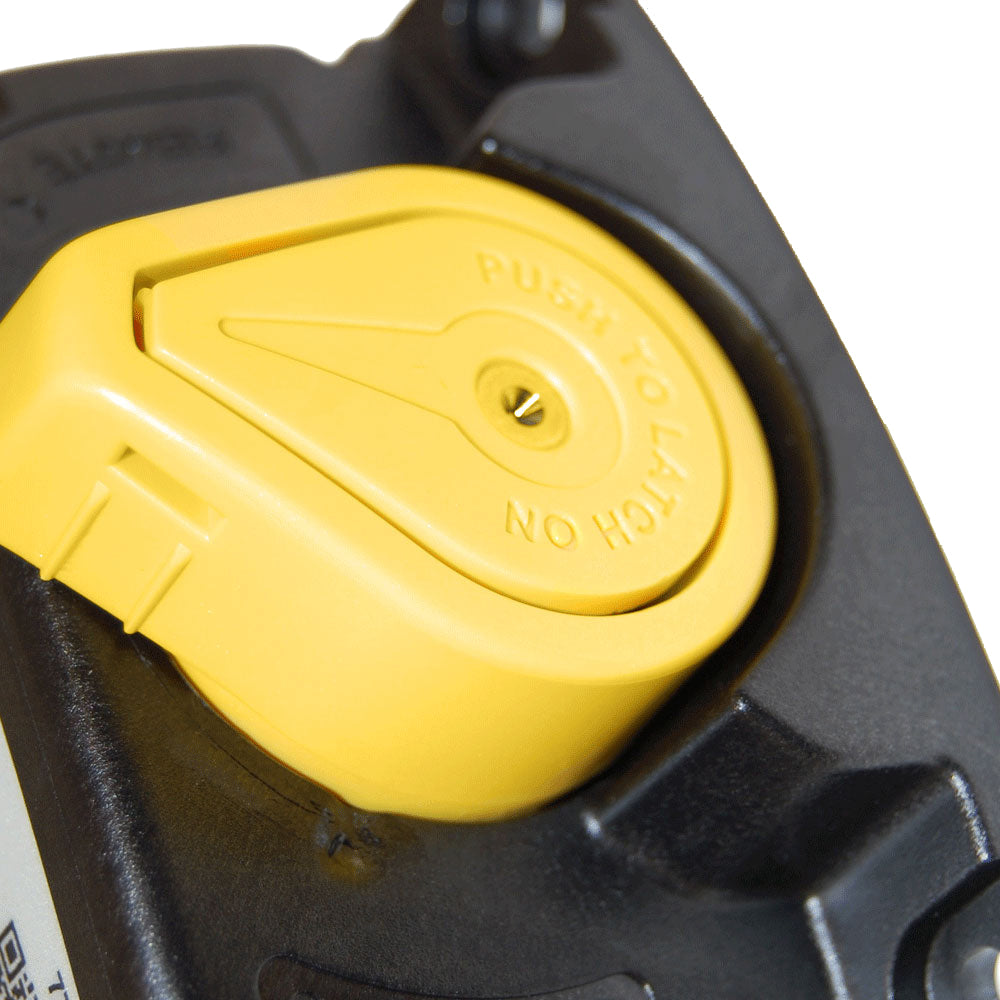

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Voltage: 10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10 C
Maximum Operating Temperature: 50 C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100,000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7713 ML-RBS Remote Battery Switch is designed for reliable and safe battery management in demanding applications. This switch features a manual override knob that allows users to control power manually, providing an added layer of safety during maintenance or emergencies. The switch also includes an LED indicator (requires optional LED) that remotely displays the switch state, ensuring you can monitor your system at a glance. Constructed with 3/8"-16 tin-plated copper studs, it offers maximum conductivity and corrosion resistance, making it suitable for harsh environments. The stud length of 7/8" (22mm) accommodates multiple cable terminals, simplifying wiring and installation. Label recesses are provided for easy circuit identification, enhancing system organization and safety. The silver alloy contacts guarantee high reliability when switching live loads, ensuring consistent performance over time.

Features:

• Manual override knob for manual control and safety lockout during servicing

• LED output indicator to remotely show switch status (requires optional LED)

• 3/8"-16 tin-plated copper studs for optimal conductivity and corrosion resistance

• 7/8" (22mm) stud length accommodates multiple cable terminals

• Label recesses for clear circuit identification

• Silver alloy contacts for reliable switching of live loads

• Auto-releasing control circuit with SPST or SPDT switching options

• Continuous rating of 500A, with intermittent rating up to 700A for 5 minutes

• Cranking capacity of 2500A for 10 seconds and 1100A for 1 minute

• Operates reliably within -10°C to 50°C temperature range

• Designed for 12V DC systems with control circuit connection via tinned wire

• Durable with 100,000 switching cycles and mechanical endurance
