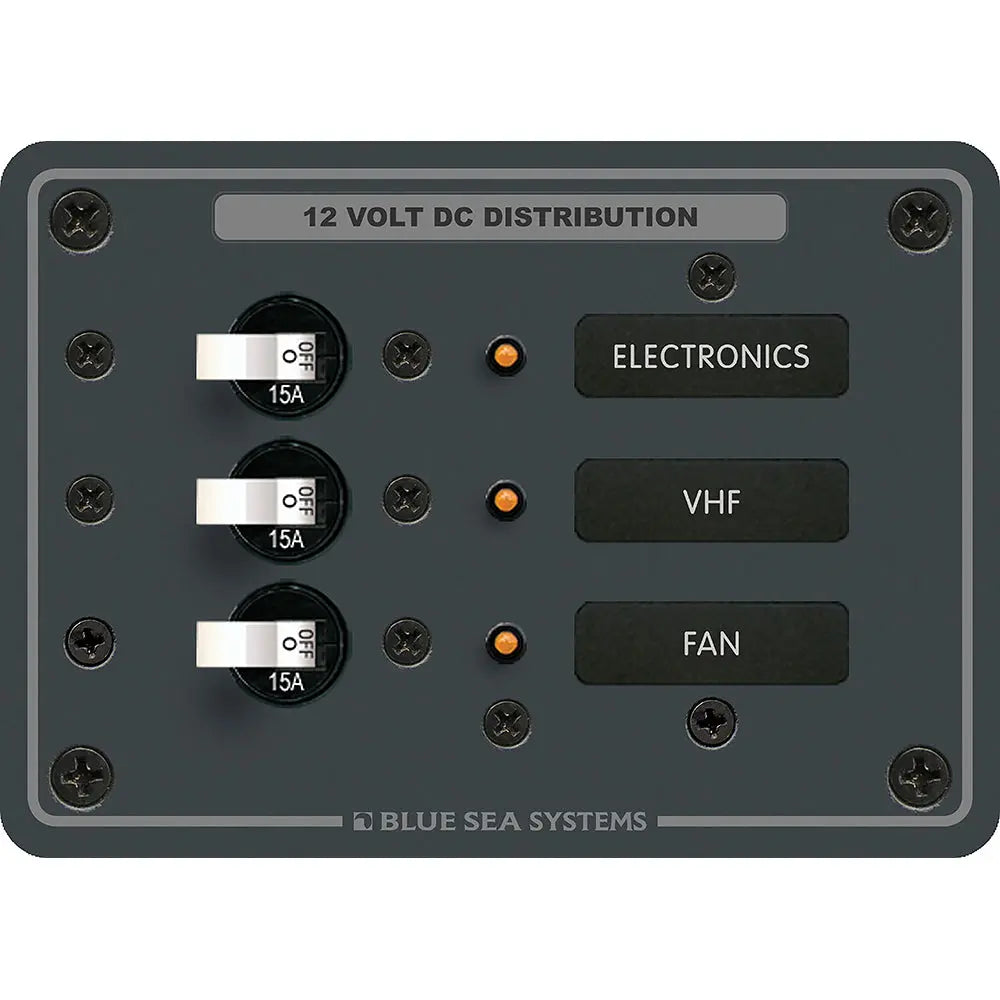

Blue Sea Systems 8025 DC 3-Position Breaker Panel with White Switches

8025 DC 3 Position Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 3
• Nominal Voltage: 12v / 24v DC
• Maximum Amperage: 100A
• Height: 3.75"
• Width: 5.25"

Included:

• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8025 DC 3-Position Breaker Panel offers a reliable solution for managing multiple battery banks and circuits in your electrical system. Designed for 12V or 24V DC applications, this panel features three circuit positions, each equipped with LED indicators that clearly display the ON status for easy monitoring. The panel comes fully pre-wired with positive, negative, and grounding buses installed, simplifying installation and ensuring a secure connection. For panels with meters, a toggle switch allows mounting up to three battery banks, providing flexibility for various power configurations. The analog meters included are user-upgradable to 24 volts using compatible modules 8240 or 8243, accommodating future system upgrades without replacing the entire panel.

Features:

• All positive, negative, and grounding buses installed and fully pre-wired for quick setup

• Panels with meters include a toggle switch for mounting up to 3 battery banks

• Analog meters are upgradeable to 24V DC with compatible modules 8240 or 8243

• Backlit circuit label positions on standard panels for better visibility without additional kits

• Indicating LEDs installed at each circuit position for clear ON status indication
