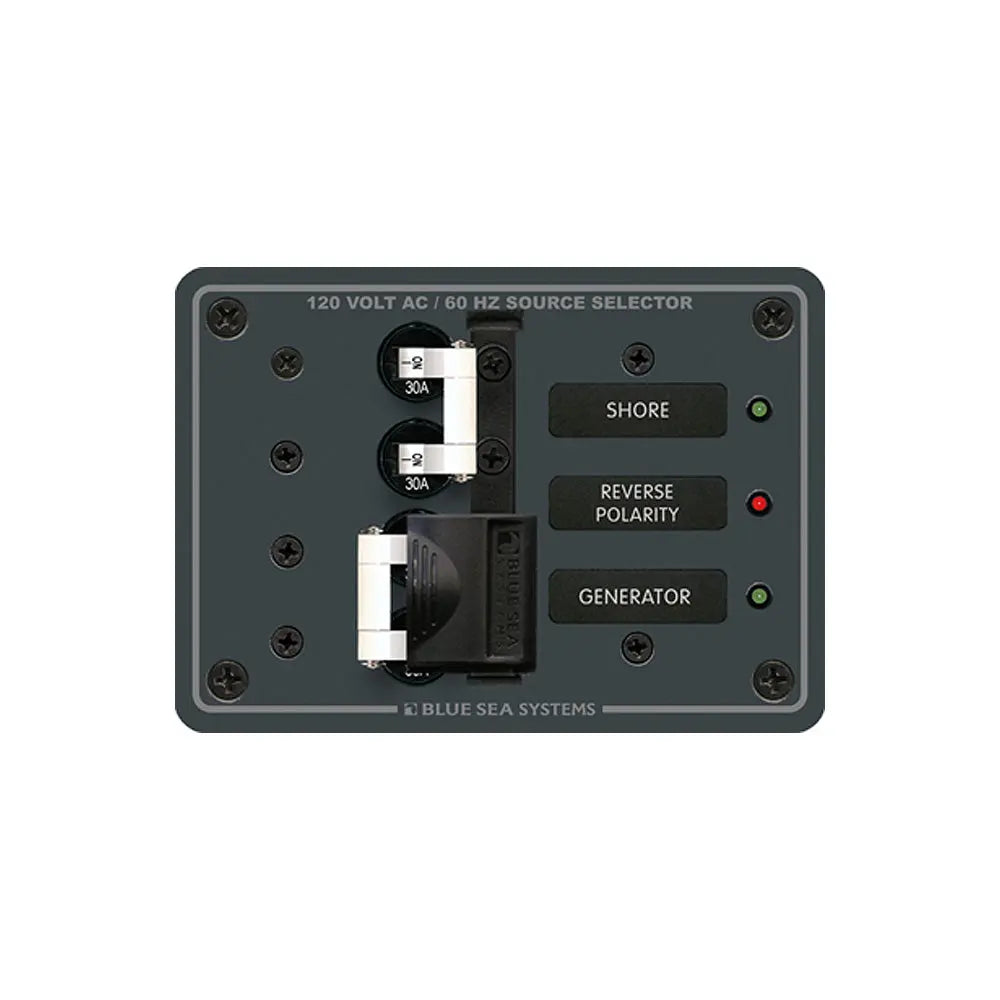

Blue Sea Systems 8032 AC Toggle Source Selector Switch for 120V AC, 30 Amp, White

8032 AC Toggle Source Selector 120V AC - 30AMP - White Switches

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage - 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Source Selection: 2
• Nominal Voltage: 120v AC
• Height: 3.75"
• Width: 5.25"

Included:

• (2) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (2) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8032 AC Toggle Source Selector provides a reliable solution for switching between two AC power sources in marine or industrial applications. Designed for 120V AC systems with a maximum amperage of 50 amps, this switch ensures safe and efficient power management. Its double pole AC main circuit breakers feature an installed lockout slide, preventing both sources from connecting simultaneously and reducing the risk of electrical faults. The unit includes all hot, neutral, and safety ground buses pre-wired for quick installation, along with backlit circuit label positions on standard panels, eliminating the need for additional kits. LED indicators for 'ON' status are installed in all circuit positions, and a red reverse polarity LED alerts operators to wiring issues, enhancing system safety and troubleshooting. The switch's compact dimensions make it suitable for panel mounting in confined spaces while providing robust control over dual power sources. Packaged with two 30-amp double pole circuit breakers, a set of backlit labels, and green and red LED indicators, the Blue Sea 8032 ensures comprehensive functionality for power source selection. Its construction emphasizes durability and safety, making it ideal for demanding environments where reliable power switching is critical. Proper installation and maintenance of this switch can significantly improve your system’s safety and operational efficiency, preventing accidental power overlap and ensuring clear status indication at all times.

Features:

• Double pole AC main circuit breakers with installed lockout slide for safety

• Prevents connecting both AC sources simultaneously to avoid electrical faults

• Maximum panel amperage of 50 Amperes for versatile power management

• Red reverse polarity LED indicator for wiring safety alert

• All hot, neutral, and safety ground buses are pre-wired for quick setup

• Backlit circuit label positions on standard panels for clear identification

• LED indicators in all circuit positions display system status
