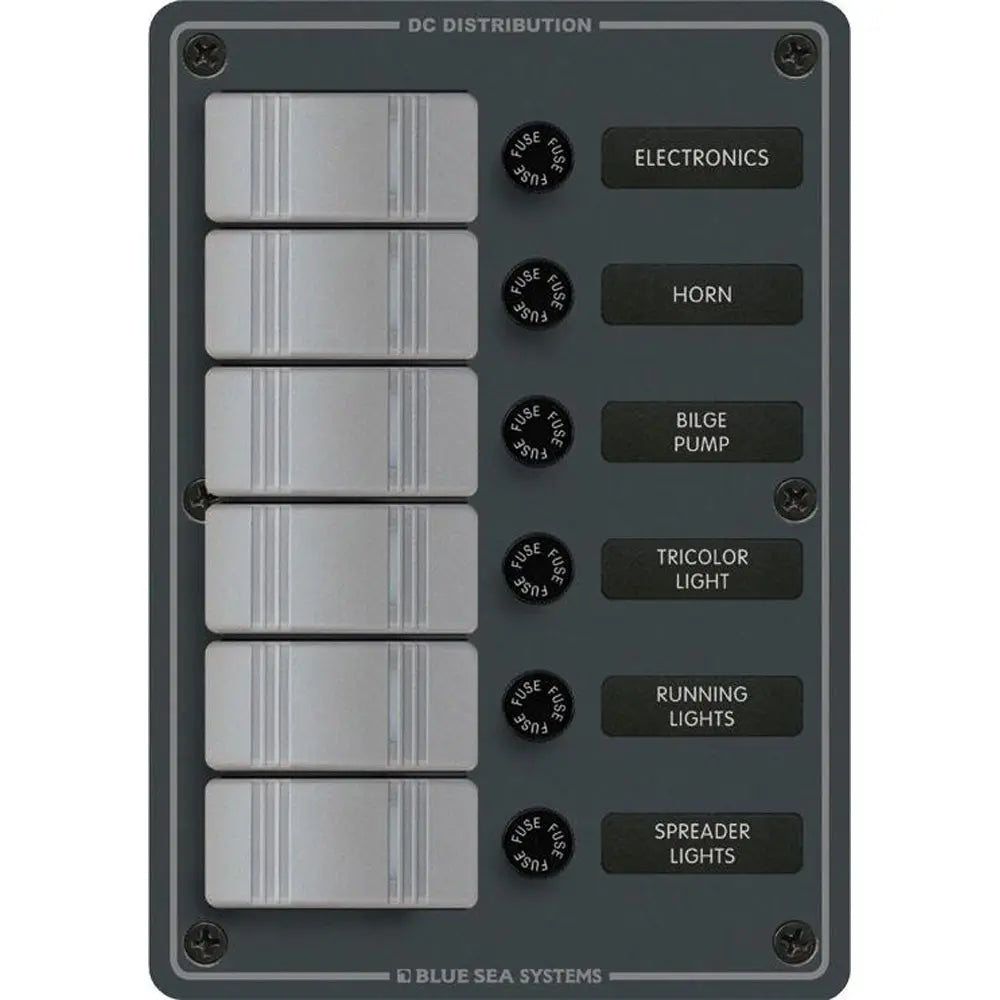

Blue Sea Systems 8053 Slate Grey 6-Position Vertical Marine Switch Panel

8053 Slate Grey - 6 Position - Vertical

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 6
• Nominal Voltage: 12v / 24v DC
• Panel Cumulative Rating: 45A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 7.5"
• Width: 5.25"
• Depth: 3"

Included:

• (6) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (6) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8053 Slate Grey 6-Position Vertical Marine Switch Panel is designed for reliable operation in demanding marine environments. Constructed with a durable two-part polyurethane slate gray finish and industry-standard dimensions, this panel provides a sleek, corrosion-resistant solution for controlling multiple electrical circuits on boats. Its robust design includes a chemical-treated surface to prevent corrosion and a watertight mounting gasket, ensuring durability even in exposure to salt spray, rain, and hose washdowns. The panel features six ON-OFF Contura switches with embedded LEDs for clear status indication, making it easy to monitor the operational state of each circuit. The switches are wired and ready for installation, with countersunk mounting holes for a clean, flush fit and a design that is suitable for flybridge and open cockpit applications. The panel's rating supports a total of 45 amps, with individual switches rated at 20 amps at 12 volts DC or 15 amps at 24 volts DC, making it suitable for various marine electrical systems. It includes six fuse holders, a set of panel labels, and all necessary mounting components, providing a comprehensive solution for marine electrical control needs. The panel's compact height, width, and depth make it a versatile choice for space-constrained environments while maintaining industry-standard compatibility. Please note that the waterproof labels are not backlit, and the panel is fully wired for immediate installation. For detailed installation instructions, refer to the owner’s manual available online. This product complies with military specifications for chemical treatment, ensuring long-term durability and resistance to harsh marine conditions. Overall, the Blue Sea Systems 8053 Slate Grey switch panel offers a dependable, corrosion-resistant, and easy-to-install solution for marine electrical control, combining functionality with durability for demanding marine applications.

Features:

• Will withstand water exposures typical in above deck applications, including salt spray, rain, hose washdowns, and brief immersions

• Designed specifically for flybridge and open cockpit marine applications

• Equipped with ON-OFF Contura switches for reliable operation

• Embedded LEDs in switches for clear ON indication

• Watertight mounting gasket included for secure installation

• Countersunk mounting holes for a sleek, flush finish

• Two-part polyurethane slate gray finish for durability and corrosion resistance

• Industry standard height and width for compatibility

• Chemical-treated surfaces to prevent corrosion and extend lifespan

• Fully wired and ready for installation, simplifying setup
