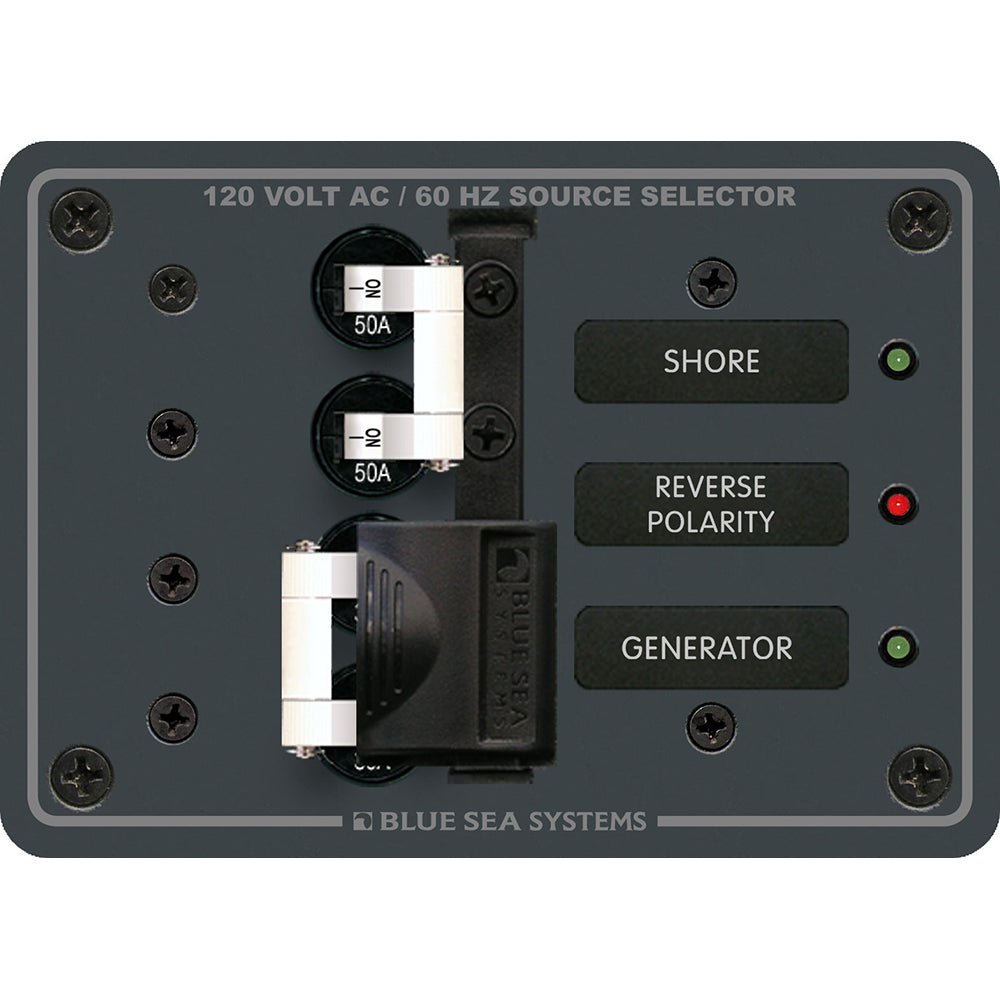

Blue Sea Systems 8061 AC Toggle Source Selector 120V AC, 50 Amp

8061 AC Toggle Source Selector 120V AC - 50AMP

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage - 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Source Selection: 2
• Nominal Voltage: 120v AC
• Height: 3.75"
• Width: 5.25"
• Weight: 1.84 lbs

Included:

• (2) 7242 A-Series White Toggle Circuit Breaker - Double Pole 50A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (1) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8061 AC Toggle Source Selector is designed to provide reliable and safe switching between two AC power sources. With a maximum panel capacity of 50 amps, this device features double pole AC main circuit breakers equipped with an installed lockout slide, preventing simultaneous connection of both sources. The built-in red reverse polarity LED indicator enhances safety by alerting users to wiring issues, ensuring proper operation. Fully pre-wired with all hot, neutral, and safety ground buses installed, the 8061 simplifies installation and reduces setup time. All circuit label positions are backlit on standard panels, eliminating the need for additional kits, while "ON" LEDs are installed in every circuit position to clearly indicate active sources. This combination of features makes the 8061 an ideal choice for applications requiring dependable source selection with safety and ease of use in mind. The package includes two 50A double pole circuit breakers, a set of 30 backlit labels, and LED indicators in green and red for clear status indication. Its compact size and lightweight design facilitate straightforward mounting in control panels, making it suitable for various electrical systems requiring dual-source management. Refer to the provided owner’s manual for detailed installation instructions and safety guidelines. Built by Blue Sea Systems, the 8061 AC Toggle Source Selector ensures dependable operation and enhanced safety for your electrical setup.

Features:

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions
