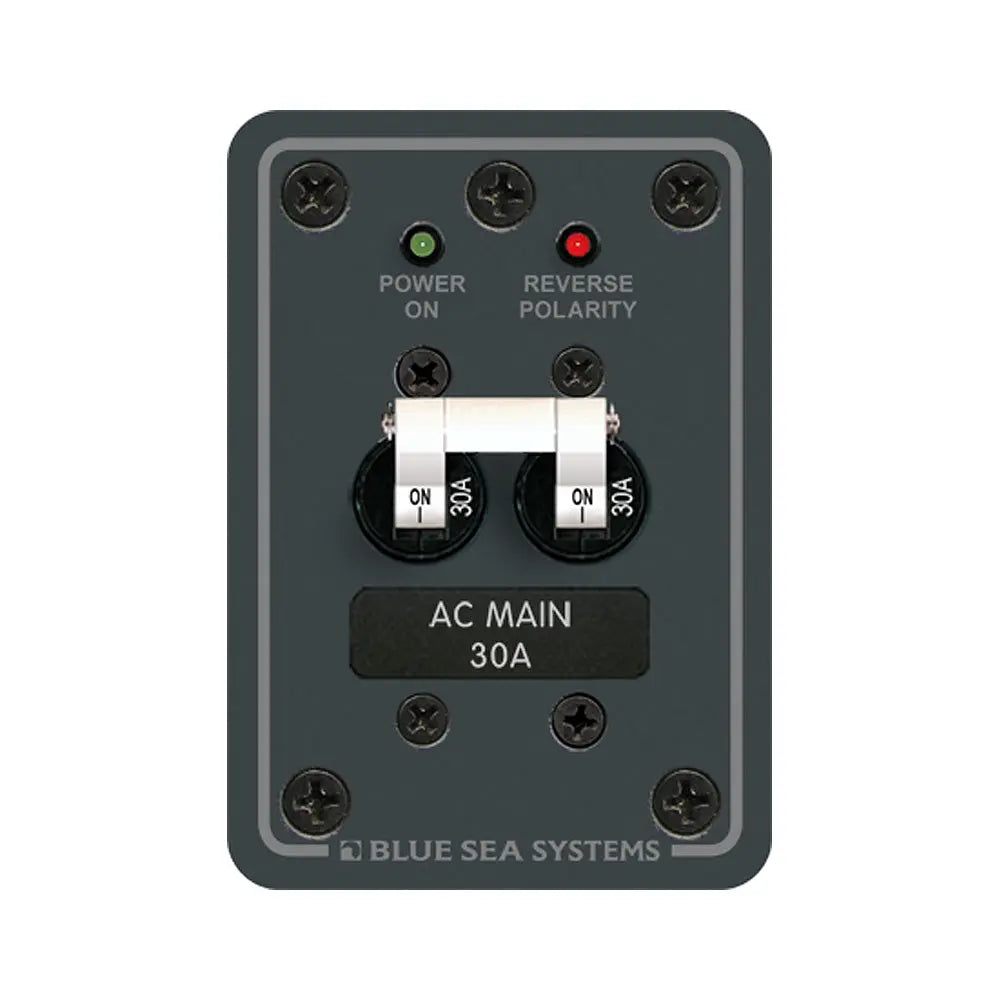

Blue Sea Systems 8077 AC Main Only Toggle Circuit Breaker Panel

8077 AC Main Only Toggle Circuit Breaker Panel

Features:

• Red reverse polarity indicating LED
• Safety ground screw on panel back
• Combines switching and circuit protection into a single device
• "Trip Free" design cannot be held "ON" during fault current condition

Specifications:

• Nominal Voltage: 120v AC
• Maximum Voltage: 277v AC / 65v DC
• Height: 3.75"
• Width: 2.63"

Included:

• (1) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red
• (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8077 AC Main Only Toggle Circuit Breaker Panel offers a reliable solution for integrating switching and circuit protection in a compact design. This panel is designed to handle nominal voltages of 120V AC, with a maximum capacity of 277V AC and 65V DC, making it suitable for various electrical applications. Its sturdy construction includes a safety ground screw on the panel back, ensuring proper grounding and enhanced safety during installation and operation. The panel features a red reverse polarity indicating LED, providing clear visual alerts for reverse wiring conditions, and an LED indicator for status monitoring. The innovative "Trip Free" design prevents the breaker from being held in the "ON" position during a fault current, safeguarding your system from potential damage.

Included with the panel are two LED indicators—one green for normal operation and one red for fault detection—along with a double pole 30A main circuit breaker (Part Number 7238). The panel's dimensions are designed for easy integration into existing systems, with a height of approximately 3.75 inches and a width of about 2.63 inches, ensuring a compact footprint suitable for various enclosures. This product is ideal for marine, RV, or industrial electrical systems where safety, reliability, and clear operational indicators are paramount.

Constructed by Blue Sea Systems, the 8077 AC Main Only Toggle Circuit Breaker Panel combines robust circuit protection with user-friendly features. Its dual LED indicators facilitate immediate troubleshooting, while the integrated safety ground screw ensures proper grounding. Please note that this product may contain chemicals like di(2-ethylhexyl)phthalate (DEHP), which are recognized by the State of California to cause health concerns. For detailed safety information, visit P65Warnings.ca.gov.

Features:

• Red reverse polarity indicating LED for safety alerts

• Safety ground screw on panel back for grounding integrity

• Combines switching and circuit protection into a single device

• "Trip Free" design prevents holding breaker "ON" during faults
