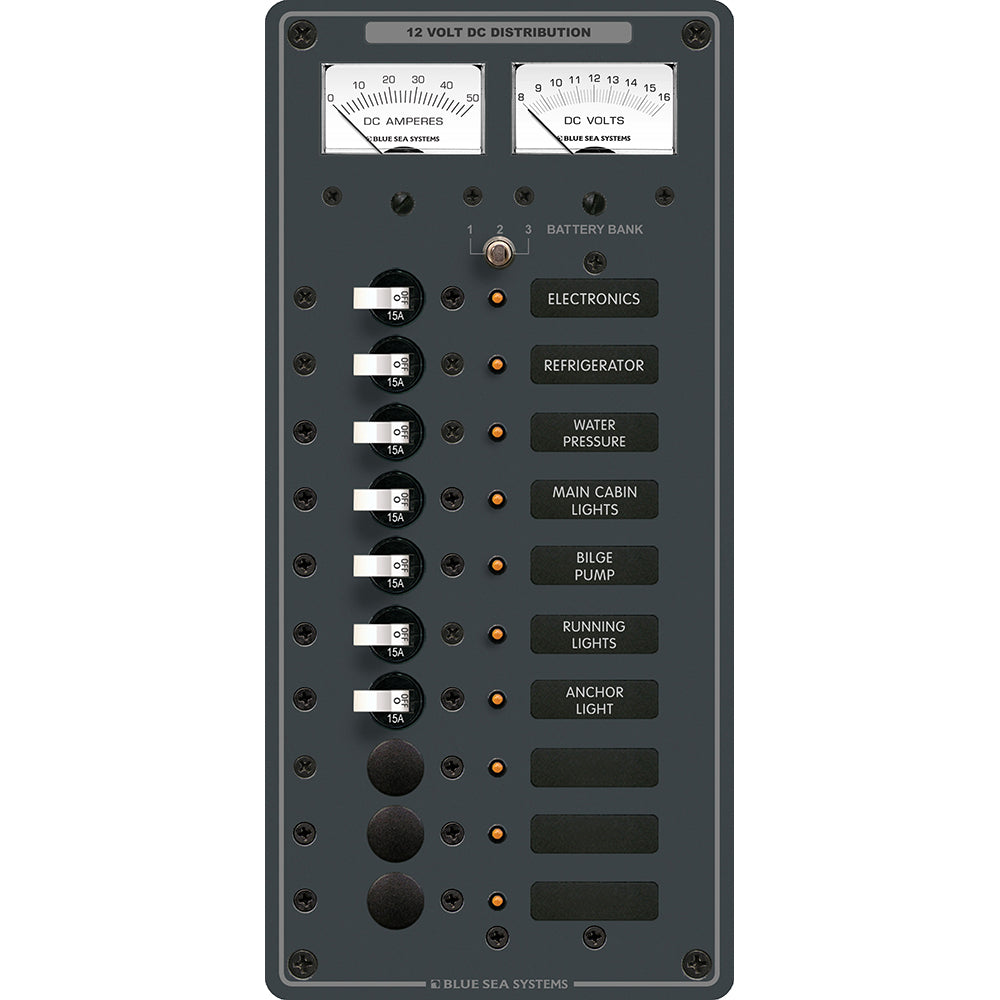

Blue Sea Systems 8082 DC 10-Position Toggle Branch Circuit Breaker Panel for 12V DC Systems

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
• 7 15A Single Pole circuit Breakers

Specifications:

• Positions: 10
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 11.25"
• Width: 5.25"
• Depth: 2.5"
• Weight: 3.35 lbs

Included:

• (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8082 DC 10-Position Toggle Branch Circuit Breaker Panel is designed for reliable management of your 12V DC electrical systems. This panel features all positive, negative, and grounding buses that are fully pre-wired, ensuring quick and straightforward installation. Included with the panel are a set of 30 common DC labels with backlighting pre-installed, enhancing visibility and organization. All LEDs are also pre-installed, providing clear status indication for each circuit. Detailed installation instructions and a cutout template are included to facilitate easy setup, whether for automotive, marine, or other DC power applications. The panel supports up to 10 circuit positions and is equipped with seven 15A single pole circuit breakers, making it suitable for a variety of power distribution needs. It also includes an 8-16V DC micro voltmeter and a 0-50A micro ammeter with shunt, allowing precise monitoring of voltage and current, with upgrade options available for 24V DC systems.

The panel's compact dimensions make it suitable for confined spaces, with a height of 11.25 inches, a width of 5.25 inches, and a depth of 2.5 inches. It weighs approximately 3.35 pounds, ensuring durability without adding unnecessary bulk. Constructed by Blue Sea Systems, this panel is built for longevity and performance in demanding environments. The included circuit breakers, label set, voltmeter, and ammeter provide a comprehensive solution for electrical control and monitoring.

Safety warning notices are included, indicating potential chemical exposure risks associated with the product, consistent with California Proposition 65 requirements. For detailed installation guidance and additional information, the owner’s manual is available online. This product is ideal for professional and DIY installations requiring a reliable, organized, and upgradeable DC circuit management solution.

Features:

• All positive, negative, and grounding buses fully pre-wired for quick installation

• Includes a set of 30 DC labels with backlighting for clear circuit identification

• Pre-installed LEDs for real-time status indication

• Supports up to 10 circuit positions with seven 15A single pole circuit breakers

• Includes 8-16V DC micro voltmeter and 0-50A micro ammeter with shunt, upgradeable to 24V DC systems
