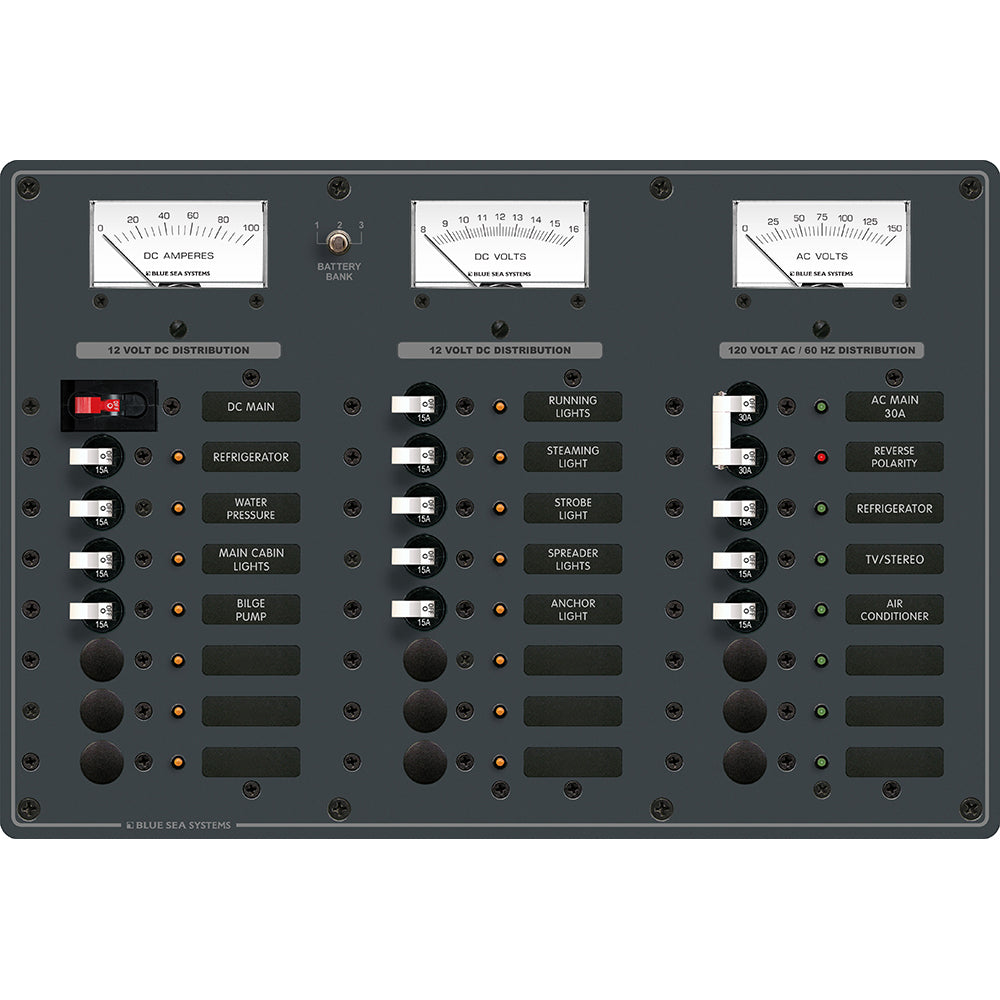

Blue Sea Systems 8084 AC Main +6 and DC Main +15 Positions Toggle Circuit Breaker Panel with White Switches

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

• Red reverse polarity indicating LED
• Ready for installation of optional 4029 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter
• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

• AC Positions: Main +6
• DC Positions: Main +15
• 120 Volts AC
• 12 Volts DC
• (1) 30A - (3) 15A AC Circuit Breakers
• (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8084 AC Main +6 and DC Main +15 Positions Toggle Circuit Breaker Panel is designed for reliable power management in marine and industrial applications. This panel features a sleek white switch design, providing both functionality and a clean aesthetic. It includes a comprehensive set of 30 common AC labels and 30 common DC labels, ensuring clear circuit identification. All AC and DC buses are pre-installed and fully pre-wired, simplifying installation and reducing setup time. The label backlighting is pre-installed for enhanced visibility in low-light conditions, and all LEDs are installed for status indication. The panel supports a maximum of 100 Amperes DC and 50 Amperes AC, accommodating a variety of power configurations. The AC section includes a red reverse polarity indicating LED for safety, and it is ready for optional installation of the 4029 AC Isolation Cover. It also features a 9353, 0-150 Volt AC voltmeter for monitoring AC voltage levels. The DC side includes a 100 Amp C-Series circuit breaker that provides main circuit protection and switching for DC branch circuits. It supports an 8-16 Volt DC voltmeter (model 8003) and an 0-100 Amp DC ammeter (model 8017), with the option to upgrade to 24 Volts using the 8240, 18-32 Volt DC voltmeter. This panel offers versatile circuit protection with one 30A AC breaker, three 15A AC breakers, one 100A DC breaker, and nine 15A DC breakers, suitable for various load requirements. The panel is designed to meet ABYC standards with an optional AC insulating cover for combined AC/DC configurations. It is suitable for 120 Volt AC and 12 Volt DC systems, making it ideal for marine, RV, and other mobile power applications. The product's construction is compact yet durable, with dimensions optimized for versatile installation. As a safety note, this product may contain chemicals known to the State of California to cause reproductive harm. For detailed instructions and safety information, consult the owner’s manual available online.

Features:

• Includes set of 30 common AC labels and 30 common DC labels for easy identification

• All AC and DC buses are pre-installed and fully wired for quick setup

• Label backlighting pre-installed for enhanced visibility in low-light conditions

• All LEDs installed for circuit status indication

• Supports a maximum of 100 Amperes DC and 50 Amperes AC for versatile power management

• AC features include a reverse polarity indicating LED and compatibility with optional AC Isolation Cover

• Equipped with a 9353 0-150 Volt AC voltmeter for monitoring AC voltage

• DC features include a 100 Amp circuit breaker, 8-16 Volt DC voltmeter, and 0-100 Amp DC ammeter

• Owner upgradeable to 24 Volts with compatible voltmeter for flexible voltage management

• Multiple circuit breakers provide comprehensive protection and switching options for both AC and DC circuits
