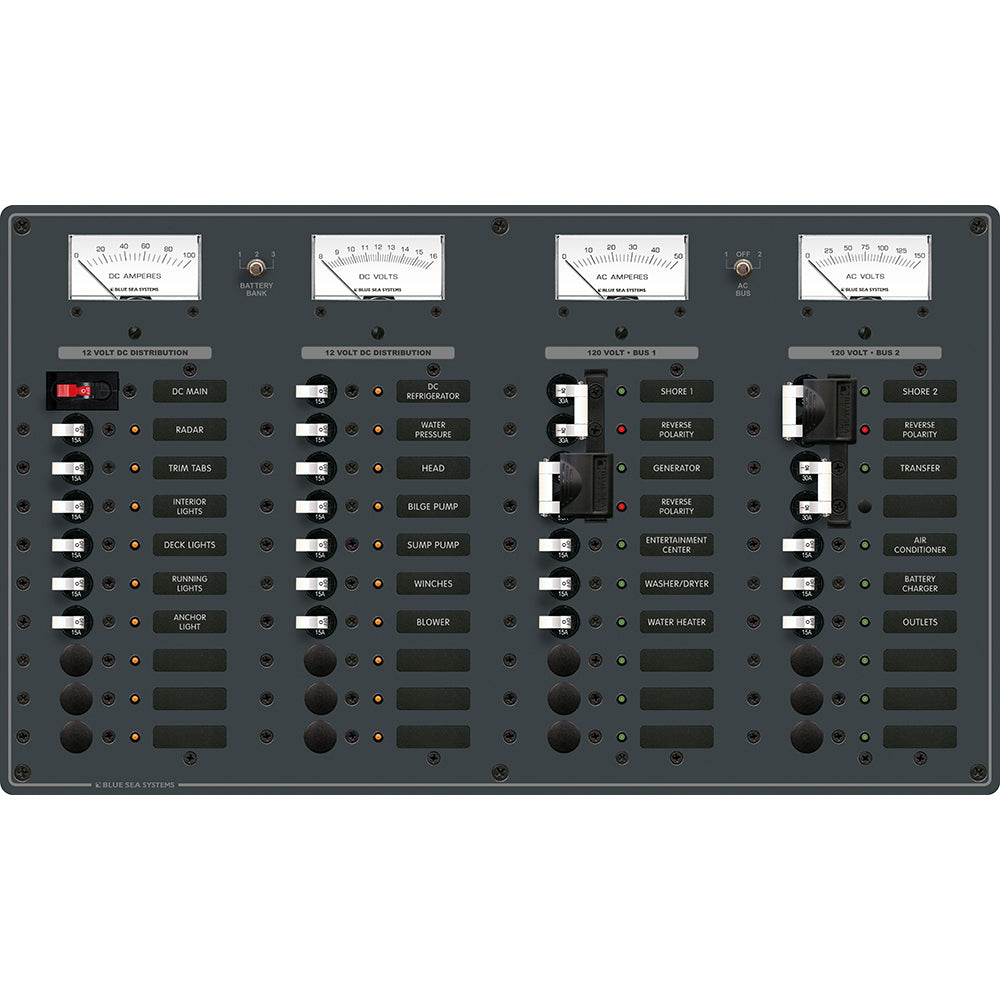

Blue Sea Systems 8086 AC/DC Circuit Breaker Panel with White Switches and 3 AC Sources

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage
  • 100 Amperes DC
  • 50 Amperes AC

AC Features:

• Two separate AC load groups with transfer switch to combine into one load group
• Switch allows Ammeter and Voltmeter to read either AC load group
• Reverse polarity indicators on both AC load groups
• Ready for installation of optional 4031 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter
• 9630, 0-50 Amp AC Ammeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter

Specifications:

• AC Positions: Source Selectors +12
• DC Positions: Main +19
• 120 Volts AC
• 12 Volts DC
• (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
• (1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8086 AC/DC Circuit Breaker Panel offers a comprehensive solution for managing multiple AC and DC power sources in marine or industrial applications. This panel features 3 AC sources with 12 positions and a 19-position toggle circuit breaker main for DC, providing robust power control and distribution capabilities. Fully pre-wired and installed with all LEDs and label backlighting, this panel ensures quick setup and easy operation. It includes a set of 30 common AC and 30 common DC labels for clear identification of circuits, enhancing safety and maintenance efficiency. The panel's design accommodates a maximum of 100 amps DC and 50 amps AC, making it suitable for demanding power management scenarios.

The AC section of the panel is equipped with two separate load groups, each with transfer switches to enable seamless switching or combining into a single load. It features reverse polarity indicators on both load groups, providing vital safety information. The panel is compatible with optional accessories such as the 4031 AC Isolation Cover, complying with ABYC standards for installation safety. Integrated voltmeters and ammeters for AC (9353, 0-150 Volt AC; 9630, 0-50 Amp AC) and DC (8003, 8-16 Volt DC; 8017, 0-100 Amp DC) allow real-time monitoring of electrical parameters. The DC section includes a 100 Amp C-Series circuit breaker for main circuit protection and switching, ensuring reliable operation of the DC circuits.

Designed for 120 Volts AC and 12 Volts DC systems, this panel supports various circuit configurations with multiple circuit breakers: three 30A, one 50A, and six 15A AC breakers, along with one 100A and thirteen 15A DC breakers. Its sturdy construction and comprehensive features make it an ideal choice for complex power distribution needs in marine or industrial environments. Please note that combined AC/DC panels require an AC Insulating Cover to meet ABYC standards. As with many electrical components, this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are recognized by California for potential health risks. For detailed safety information, visit P65Warnings.ca.gov.

Features:

• Includes set of 30 common AC and 30 common DC labels for easy circuit identification

• All AC and DC buses are installed and fully pre-wired for quick installation

• Label backlighting pre-installed for enhanced visibility in low-light conditions

• All LEDs are installed to provide real-time status indicators

• Maximum panel amperage: 100 Amperes DC and 50 Amperes AC for reliable power handling

• Two separate AC load groups with transfer switch for flexible power management

• AC load groups feature reverse polarity indicators for safety

• Ready for optional 4031 AC Isolation Cover to comply with safety standards

• Includes AC voltmeter (9353) and ammeter (9630) for real-time monitoring

• DC main circuit protection via a 100 Amp C-Series circuit breaker

• DC voltmeter (8003) and ammeter (8017) included for monitoring DC circuits

• Supports multiple circuit breakers for both AC and DC circuits, including 30A, 50A, 15A, and 100A options
