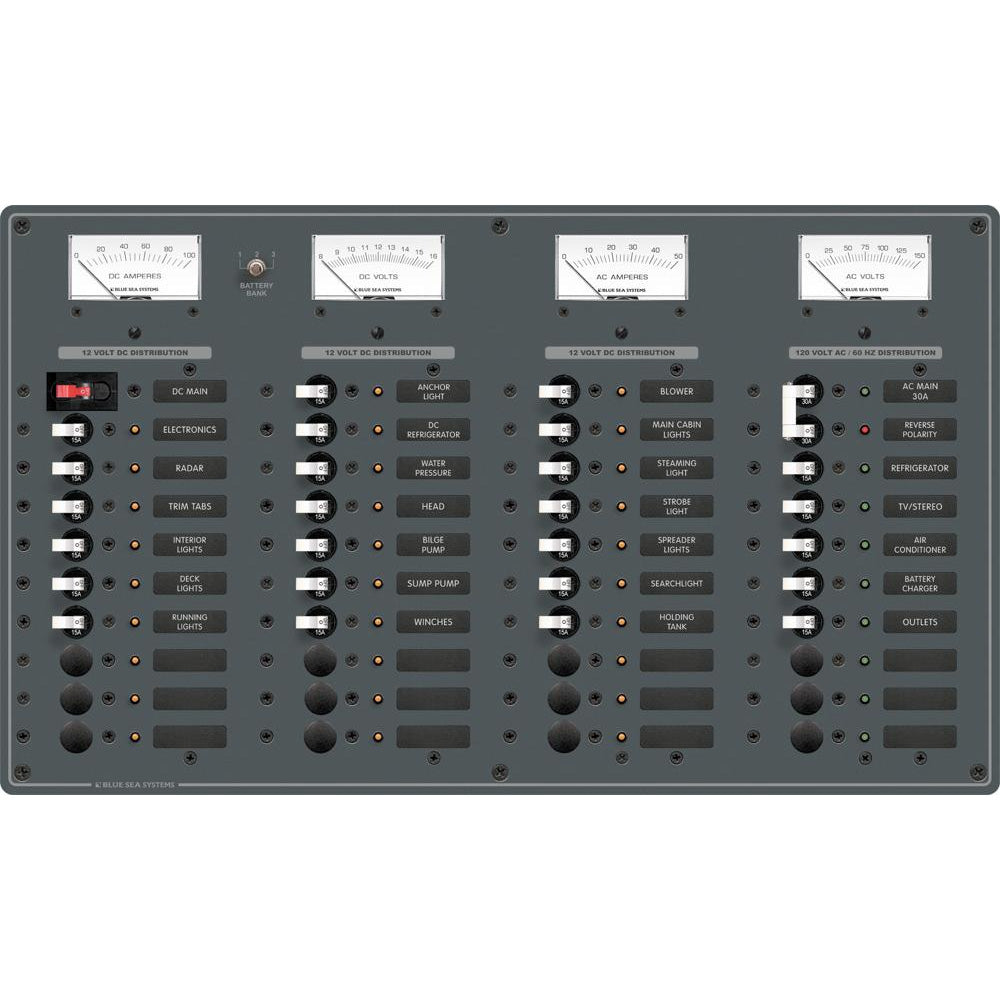

Blue Sea Systems 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel with White Switches

• Includes set of 30 common AC and 30 common DC labels

• All AC and DC buses installed, fully pre-wired

• Label backlighting pre-installed

• All LEDs installed

• Maximum panel Amperage
  • 100 Amperes DC

  • 50 Amperes AC

• Red reverse polarity indicating LED

• 9353, 0-150 Volt AC Voltmeter

• 9630, 0-50 Amp AC Ammeter

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits

• 8003, 8-16 Volt DC Voltmeter

• 8017, 0-100 Amp DC Ammeter

• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

• AC Positions: Source Selectors +8

• DC Positions: Main +29

• 120 Volts AC

• 12 Volts DC

• (1) 30A - (5) 15A AC Circuit Breakers

• (1) 100A - (20) 15A DC Circuit Breakers

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8095 toggle circuit breaker panel offers a comprehensive solution for managing electrical systems in marine, RV, and industrial applications. Featuring a user-friendly design, this panel integrates eight AC source selectors and twenty-nine DC main positions, providing ample capacity for complex electrical setups. Its fully pre-wired configuration includes all AC and DC buses, making installation straightforward and efficient. The panel's backlit labels and installed LEDs enhance visibility, ensuring safe operation even in low-light conditions. The maximum panel amperage is rated at 50 amperes for AC circuits and 100 amperes for DC circuits, making it suitable for demanding applications.

Designed with safety and reliability in mind, the panel includes a red reverse polarity indicating LED, a 9353 0-150 Volt AC voltmeter, and a 9630 0-50 Amp AC ammeter. The DC side features a 100 Amp C-Series circuit breaker that provides main circuit protection and switching for DC branch circuits, along with an 8003 8-16 Volt DC voltmeter and an 8017 0-100 Amp DC ammeter. The system can be easily upgraded to 24 volts using the optional 8240 18-32 Volt DC voltmeter. With multiple circuit breakers—five 15A AC and twenty 15A DC—this panel ensures comprehensive circuit management.

This combined AC/DC panel requires an AC insulating cover to meet ABYC standards, ensuring compliance with marine safety regulations. The panel supports 120 volts AC and 12 volts DC systems, making it versatile for various electrical setups. Its durable construction and thoughtful design make it a reliable choice for professional and DIY applications alike. Please note that this product contains chemicals known to the State of California to cause cancer or reproductive harm, and appropriate precautions should be taken during installation and use.

Features:

• Includes set of 30 common AC and 30 common DC labels

• All AC and DC buses installed and fully pre-wired for quick installation

• Backlit labels and installed LEDs for enhanced visibility

• Maximum panel amperage of 50A AC and 100A DC for demanding applications

• Red reverse polarity indicator LED for safety

• 9353 0-150 Volt AC voltmeter and 9630 0-50 Amp AC ammeter for monitoring electrical systems

• DC features a 100 Amp C-Series circuit breaker for main circuit protection and switching

• 8003 8-16 Volt DC voltmeter and 8017 0-100 Amp DC ammeter with upgrade options

• Supports 120V AC and 12V DC systems with multiple circuit breakers for comprehensive control

• Requires AC insulating cover to meet ABYC standards for combined panels
