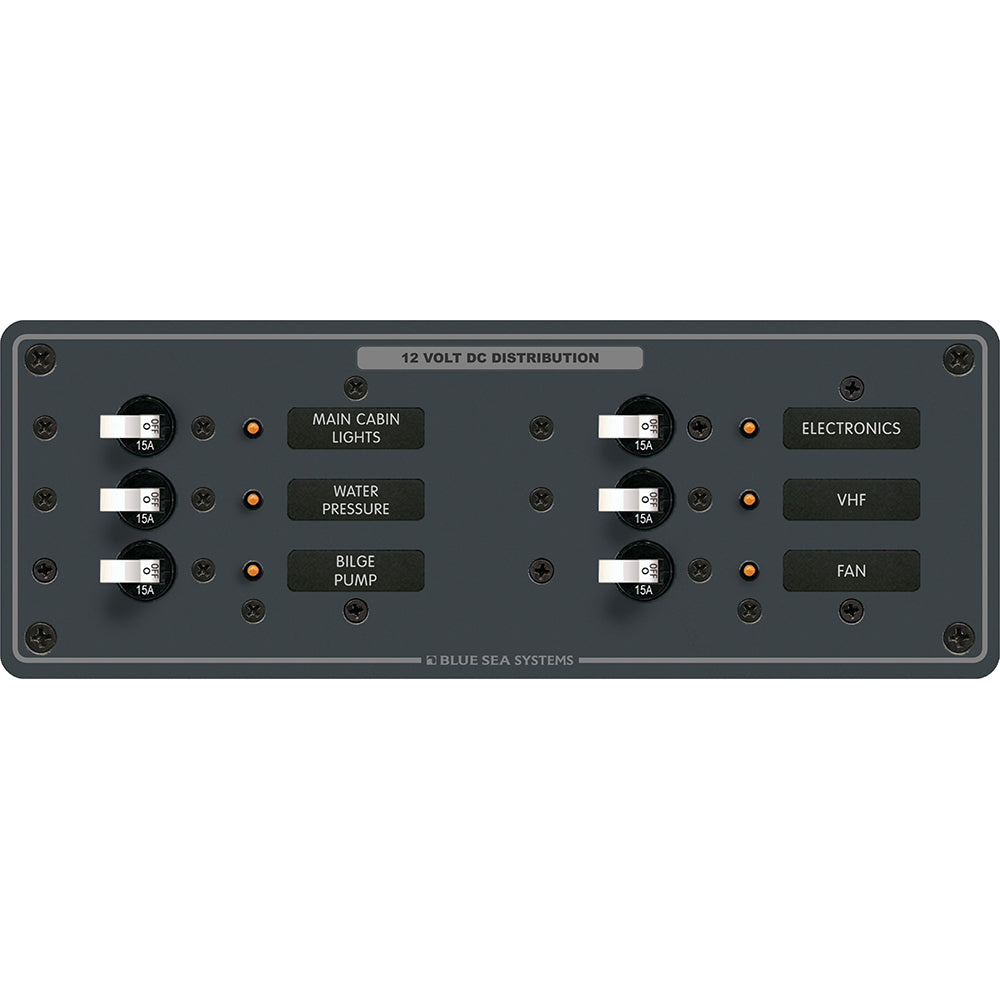

Blue Sea Systems 8096 DC 6-Position Toggle Branch Circuit Breaker Panel with White Switches

8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 6
• Nominal Voltage: 12v/24v
• Maximum Amperage: 100A per bus
• Height: 3.75"
• Width: 10.5"
• Depth: 2.5"

Included:

• (6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8096 DC 6-Position Toggle Branch Circuit Breaker Panel offers a robust solution for managing multiple DC circuits in your boat, RV, or off-grid power system. Designed with convenience and flexibility in mind, this panel features all positive, negative, and grounding buses fully pre-wired for easy installation and reliable operation. The inclusion of a toggle switch for mounting up to three battery banks allows users to efficiently control and monitor their power sources. With integrated analog meters that are upgradeable to 24 volts using compatible modules, the panel provides enhanced visibility into your system's performance without requiring additional kits. All circuit positions are backlit for clear visibility in low-light conditions and equipped with “ON” LEDs, offering immediate circuit status indication for quick troubleshooting and safety assurance.

Features:

• All positive, negative, and grounding buses installed, fully pre-wired for straightforward setup

• Includes toggle switch to accommodate up to three battery banks for flexible power management

• Analog meters are upgradeable to 24 volts with compatible modules, allowing future system enhancements

• Backlit circuit label positions enable easy identification even in dim environments

• “ON” LEDs installed at each circuit position for instant circuit status recognition
