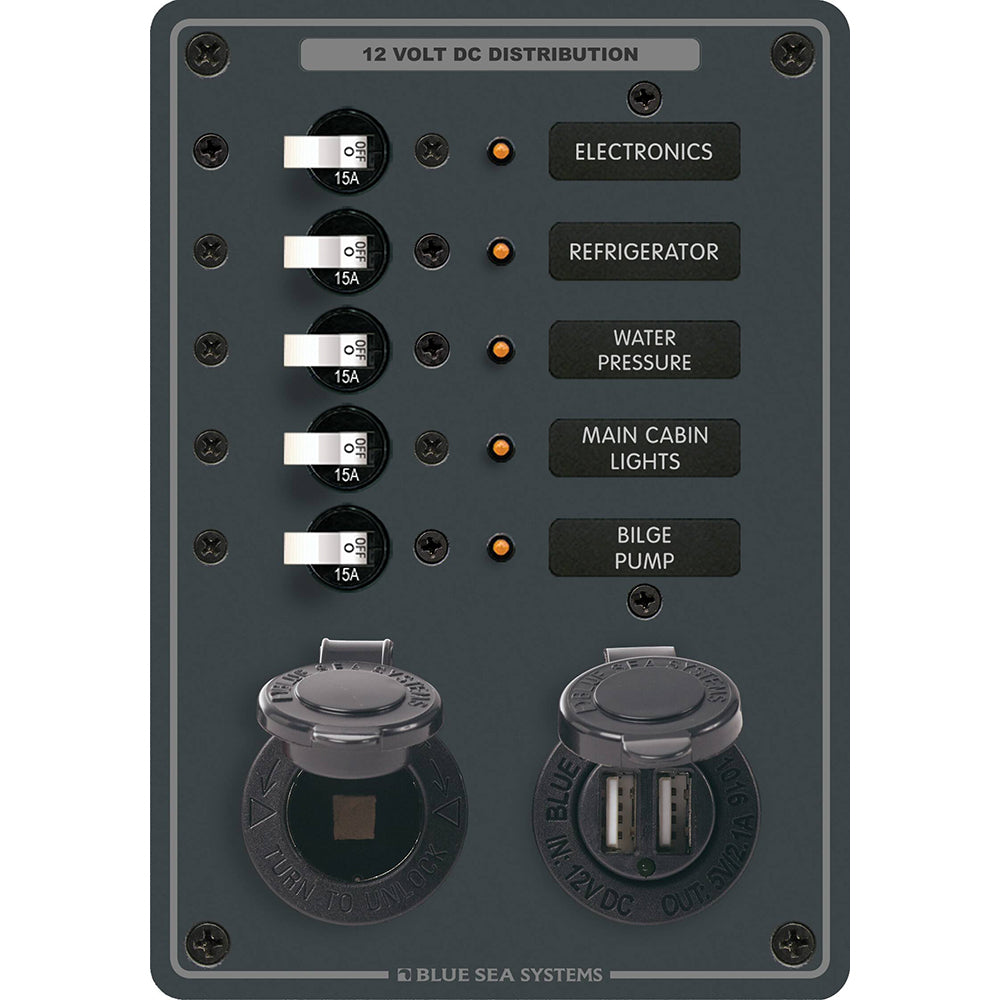

Blue Sea Systems 8120 5-Position 12V Panel with Dual USB and 12V Socket

8120 - 5 Position 12V Panel w/Dual USB 12V Socket

Part of the Blue Sea Systems Battery Management Panels. Distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions
• All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

• Positions - Five (5)
• Nominal Voltage - 12V DC
• Maximum Amperage - 50A
• Circuit Breaker Type - Magnetic Hydraulic - Trip Free
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)

In the Box:

• 8120 Panel
• Instruction Manual

*Sold as an Individual

The Blue Sea Systems 8120 panel is a versatile and reliable power distribution solution designed for marine and RV applications. It features five individual positions, each equipped with ON-indicating LEDs with backlit labels, allowing for easy monitoring of circuit status. The panel is fully pre-wired with positive, negative, and grounding buses installed, simplifying installation and ensuring a clean, organized setup. Capable of handling up to 50 amps at 12 volts DC, this panel distributes power efficiently from a high amperage source to multiple lower amperage circuits, making it ideal for managing various electrical loads on boats, RVs, or other vehicles. The inclusion of a 12V dash socket and dual USB outputs (supporting 12V and 24V devices) enhances its versatility, providing convenient charging options for electronic devices and accessories. The magnetic hydraulic circuit breaker offers reliable protection and is trip-free, ensuring safety during overloads or short circuits. With compact dimensions, the panel fits neatly into tight spaces without sacrificing functionality. The package includes the 8120 panel and an instruction manual, offering a straightforward installation process. Whether upgrading an existing system or designing a new electrical setup, the Blue Sea 8120 panel delivers dependable power management in a compact, easy-to-use package.

Features:

• ON-indicating LEDs with backlit labels for easy circuit monitoring

• Fully pre-wired positive, negative, and grounding buses for quick installation

• Maximum amperage capacity of 50A at 12V DC for efficient power distribution

• Includes a 12V dash socket for convenient accessory use

• Dual USB outputs supporting 12V and 24V devices for versatile charging

• Magnetic hydraulic circuit breaker provides reliable, trip-free protection

• Compact design measuring approximately 7.5 inches high, 5.25 inches wide, and 2.5 inches deep
